Ignition Control System Test

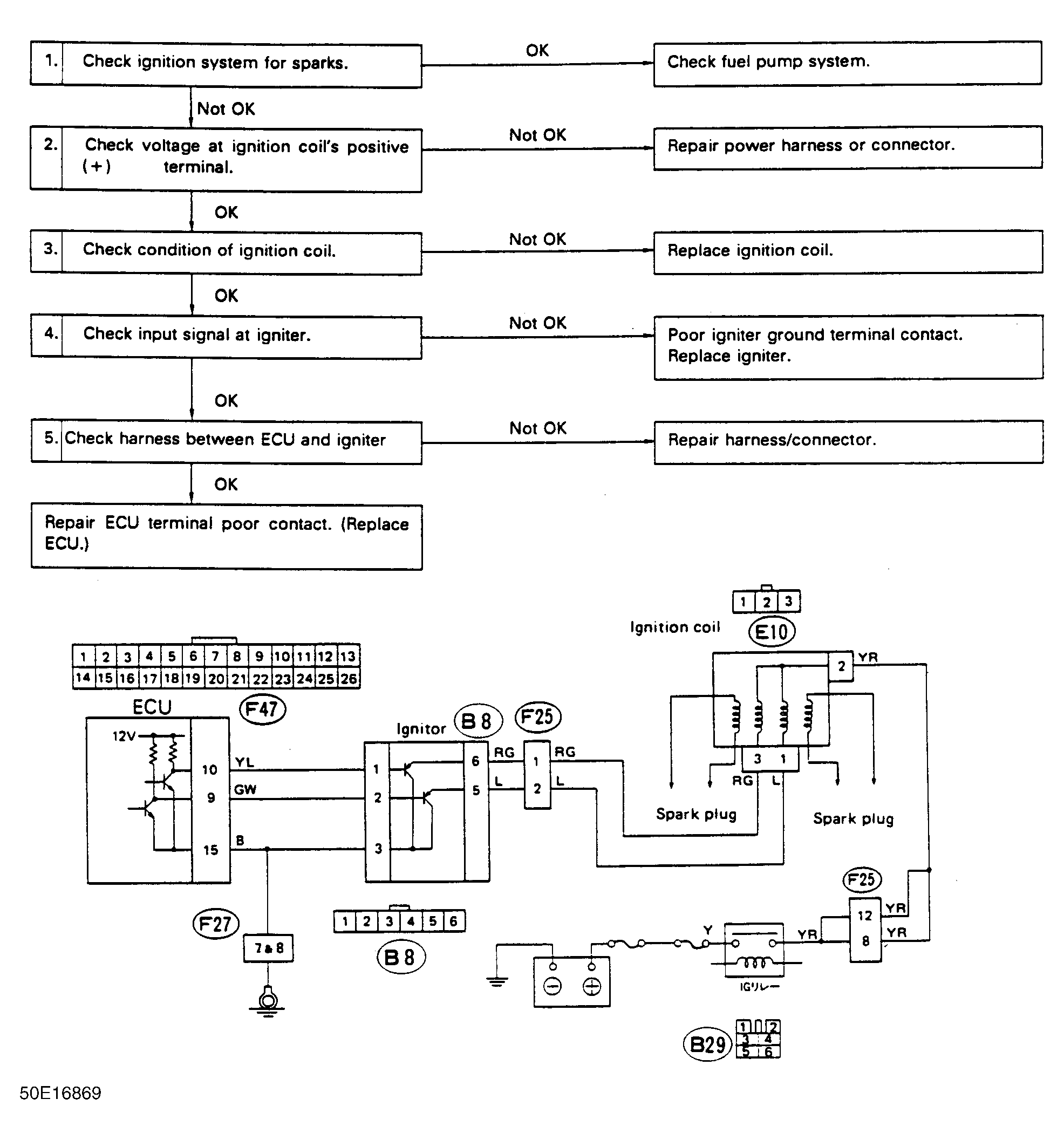

Fig 1: Legacy Ignition Control System Test
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
