Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Anti-Lock Brake Control Unit | On right side of front passenger's seat, in floor. | |
| A/T Control Unit | Behind dashboard, to left of steering column. | |
| A/T Shift Lock Control Unit | Behind dashboard, to left of heater core case. | |
| Automatic Seat Belt Control Unit (Except Canada) | ||
| Sedan | On left trunk wall. | |
| Station Wagon | Behind left rear quarter panel, under speaker. | |
| Cruise Control Unit | Behind right kick panel. | |
| Engine Electronic Control Unit (ECU) | Behind left side of dash. | |
| Illumination Control Unit | Behind dashboard, to right of center console. | |
| Intermittent Wiper Unit | Part of combination switch on steering column. | |

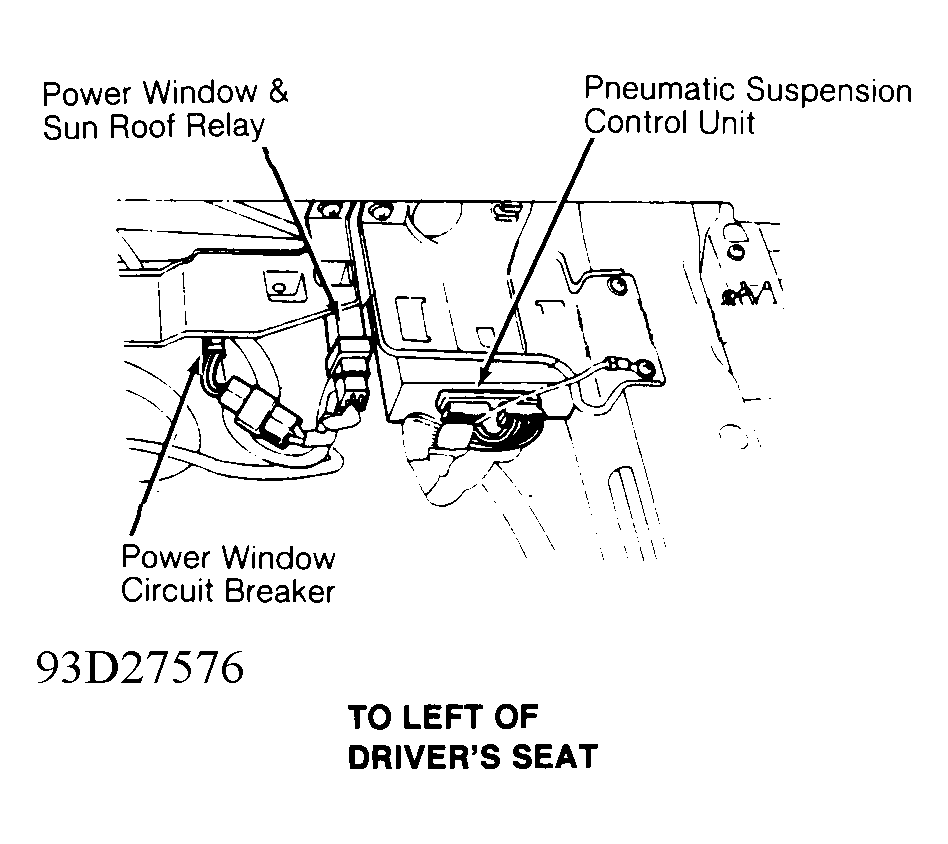

| Pneumatic Suspension Control Unit | On left side of driver's seat, in floor. See Figure . | |
| Shift Lock Control Unit (A/T) | Behind dashboard, to right of center console. | |
| Sun Roof Control Unit | At front center of roof. | |
