Code 11: Crank Angle Sensor

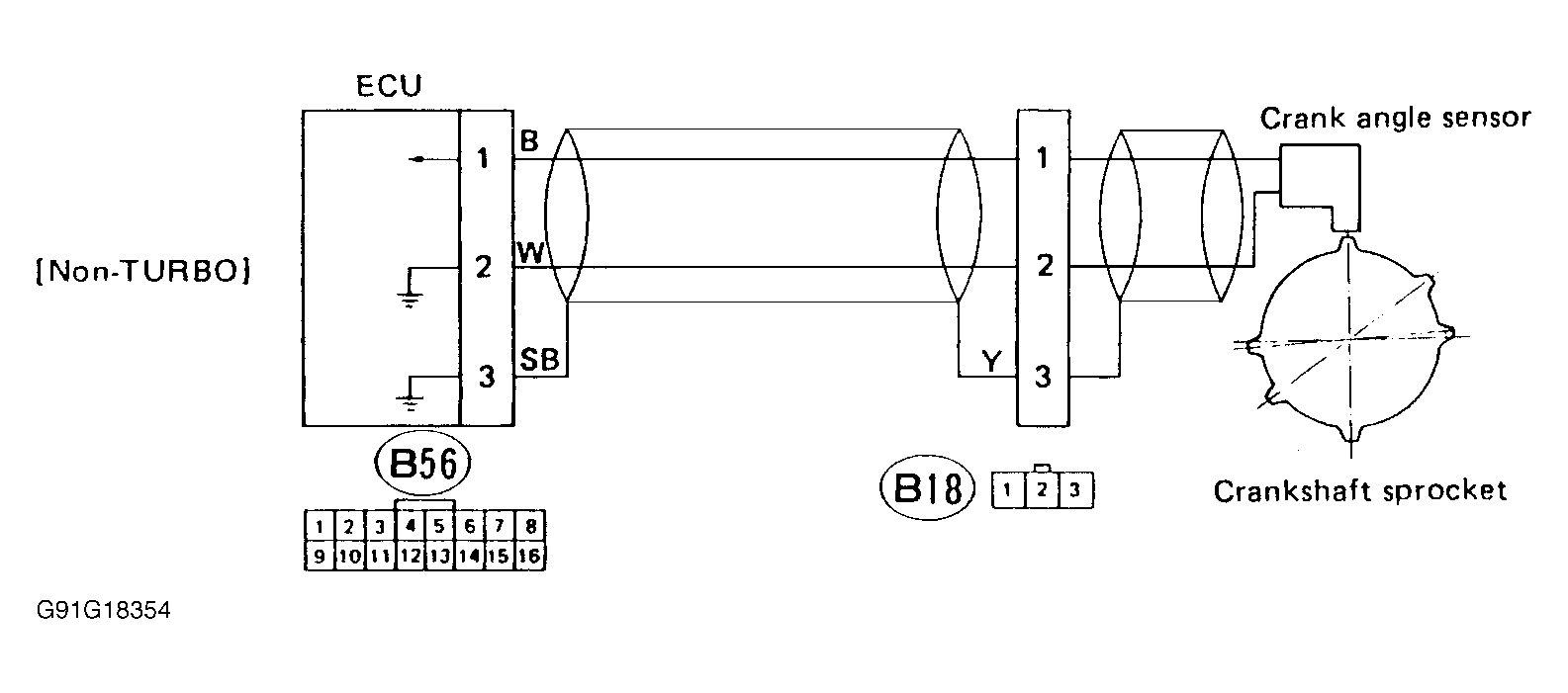

Fig 1: Schematic - Code 11, Crank Angle Sensor (Non-Turbo)
G91G18354

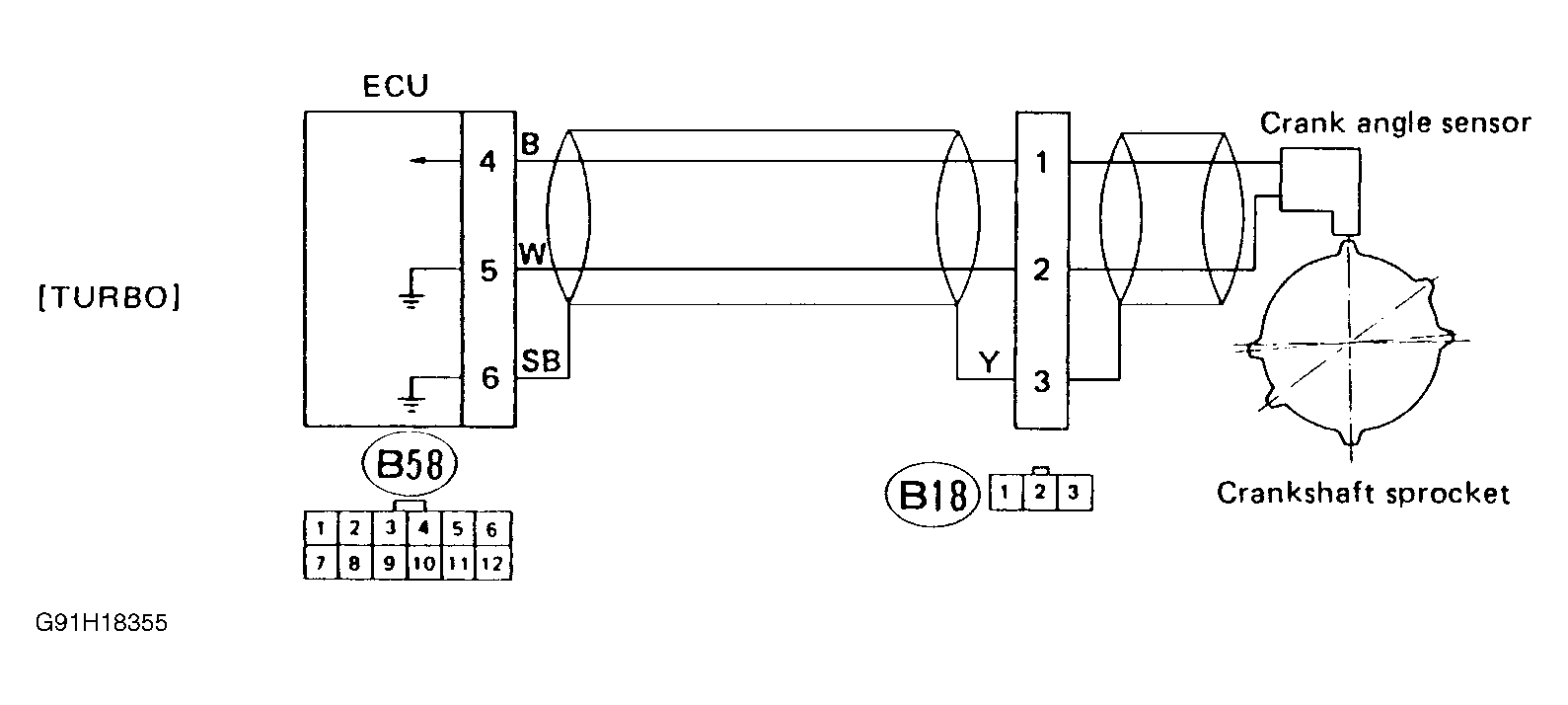

Fig 2: Schematic - Code 11, Crank Angle Sensor (Turbo)
G91H18355

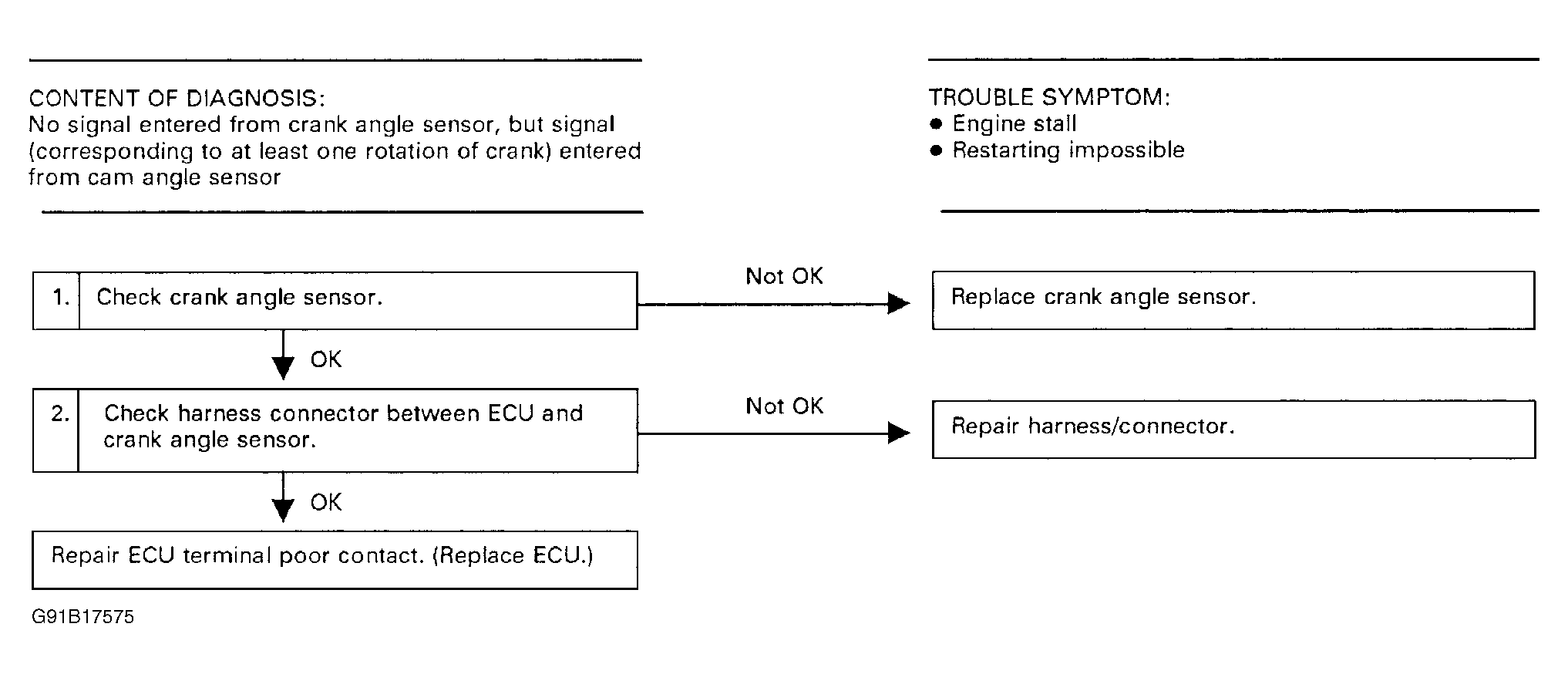

Fig 3: Flow Chart - Code 11, Crank Angle Sensor
G91B17575
