Code 13: Cam Angle Sensor

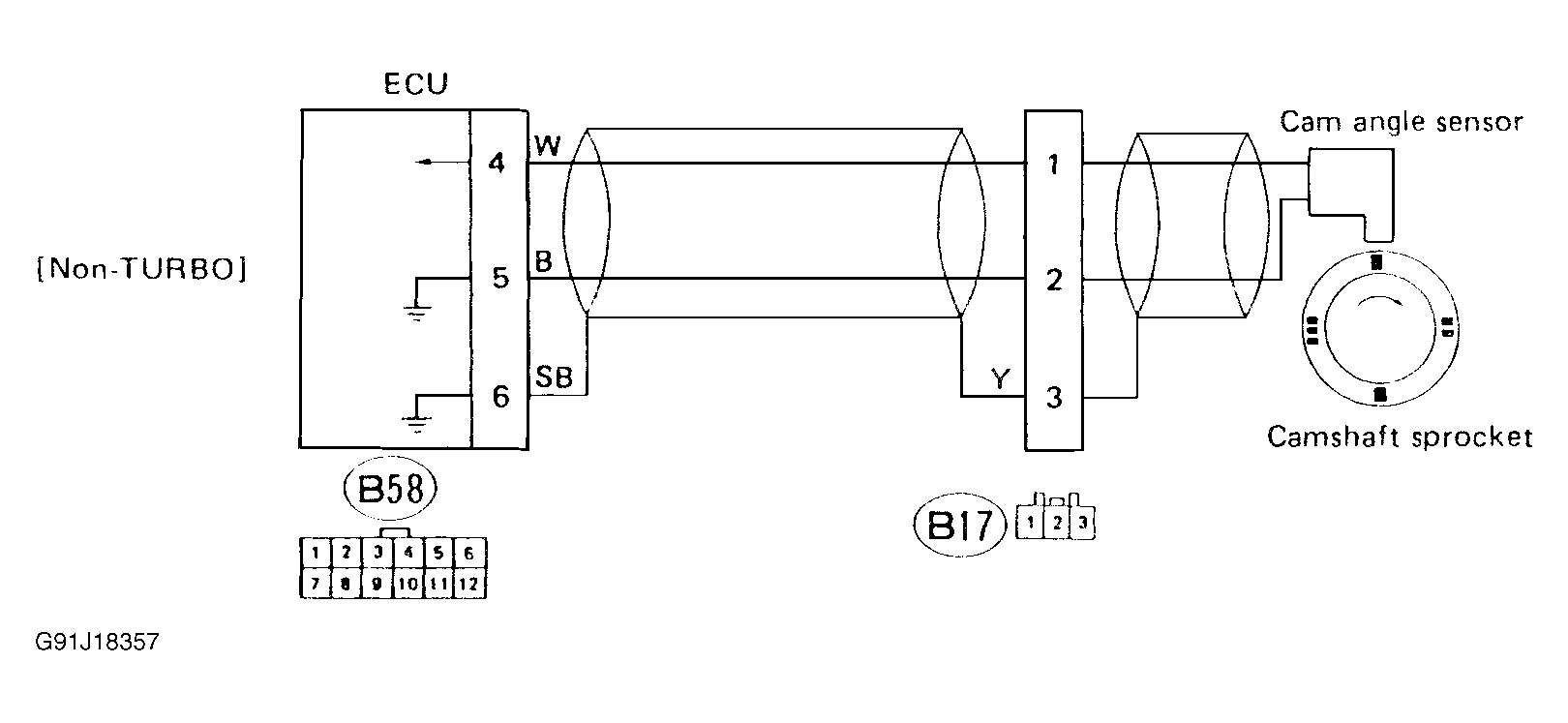

Fig 1: Schematic - Code 13, CAM Angle Sensor (Non-Turbo)
G91J18357

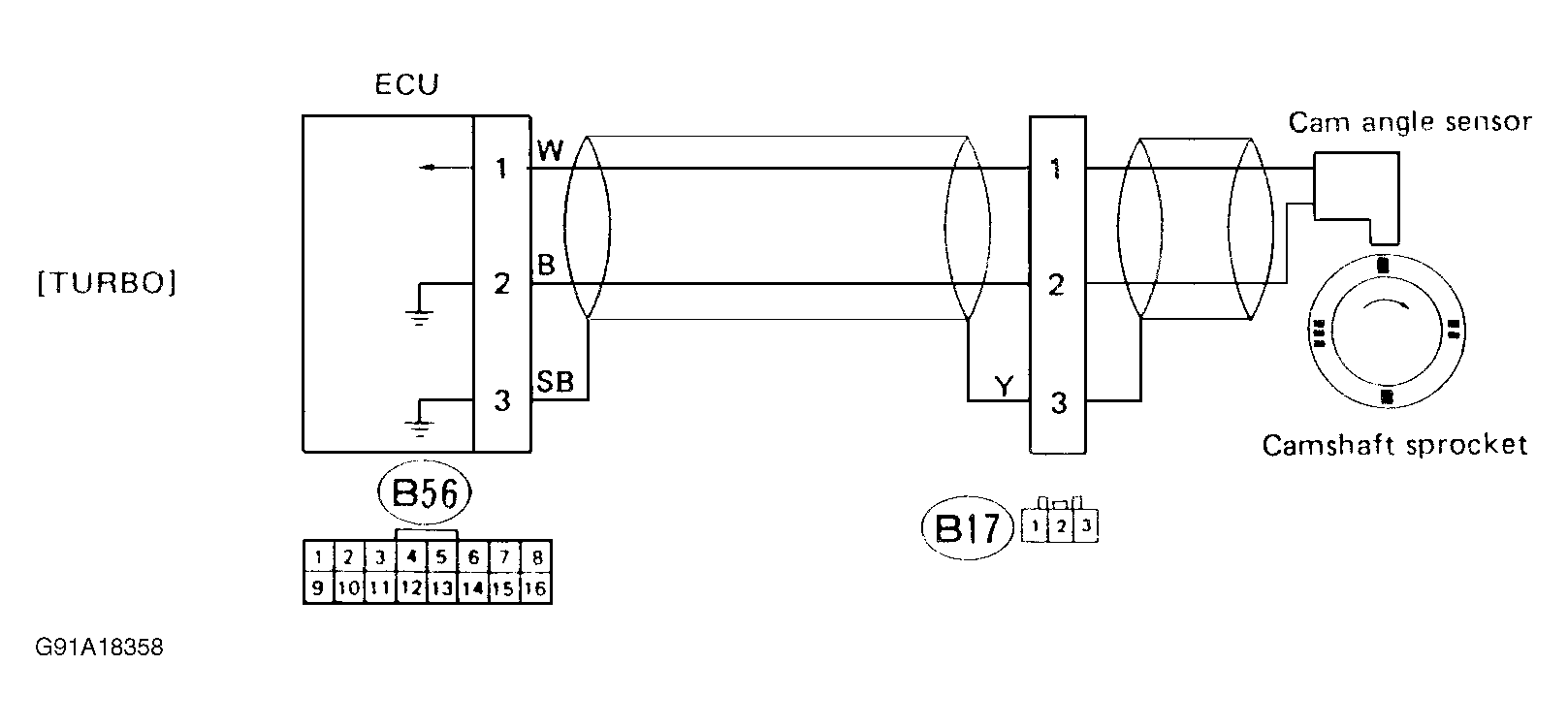

Fig 2: Schematic - Code 13, CAM Angle Sensor (Turbo)
G91A18358

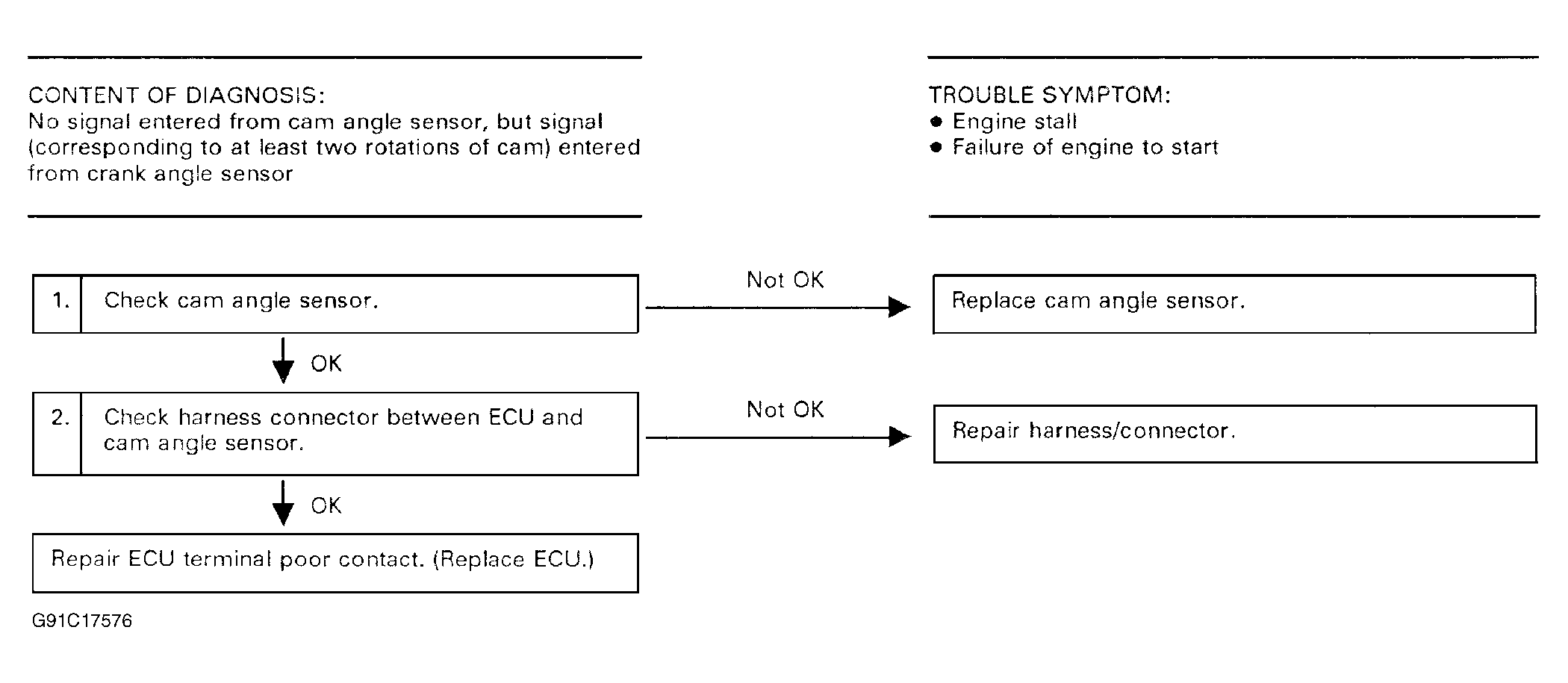

Fig 3: Flow Chart - Code 13, CAM Angle Sensor
G91C17576
