Code 22: Knock Sensor

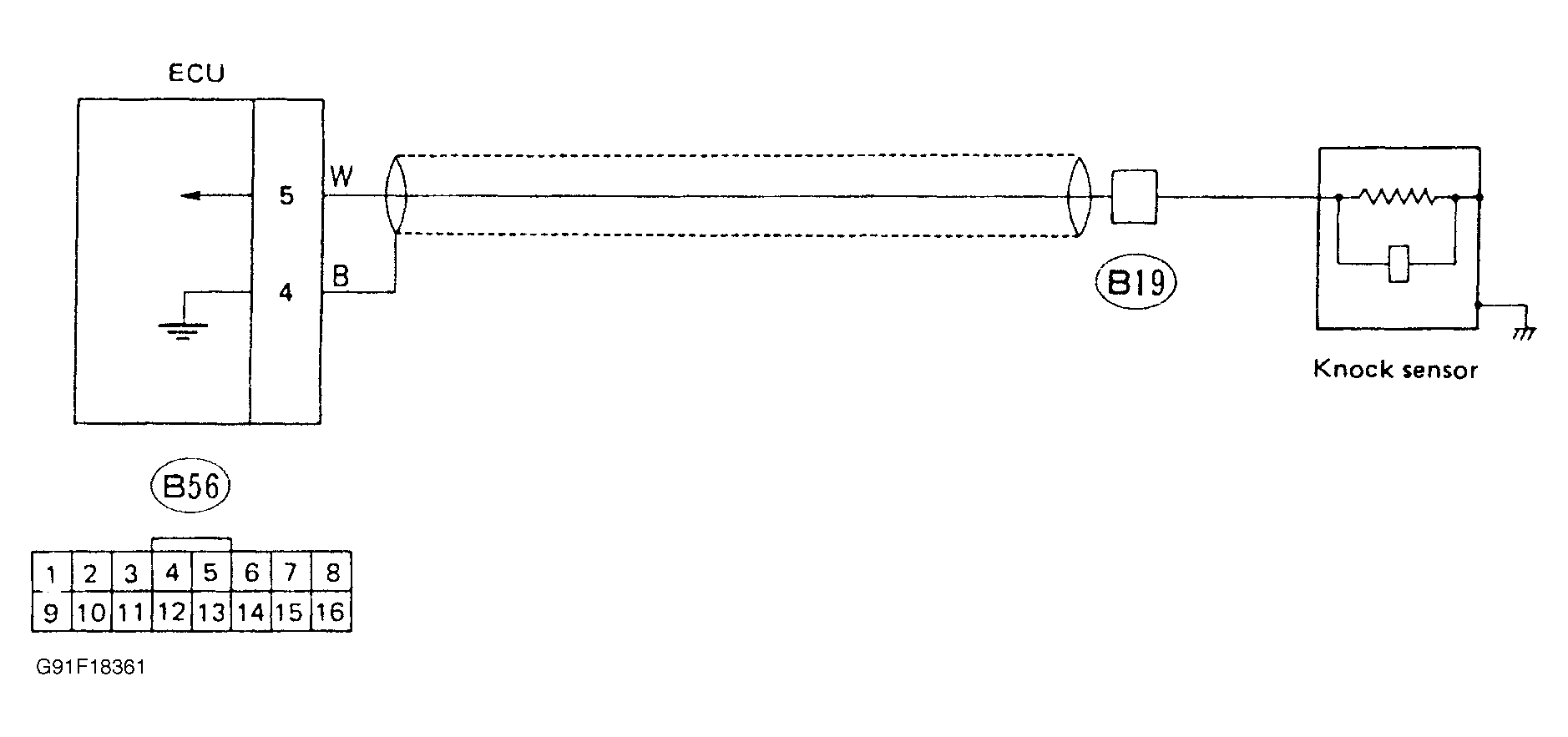

Fig 1: Schematic - Code 22, Knock Sensor

G91F18361

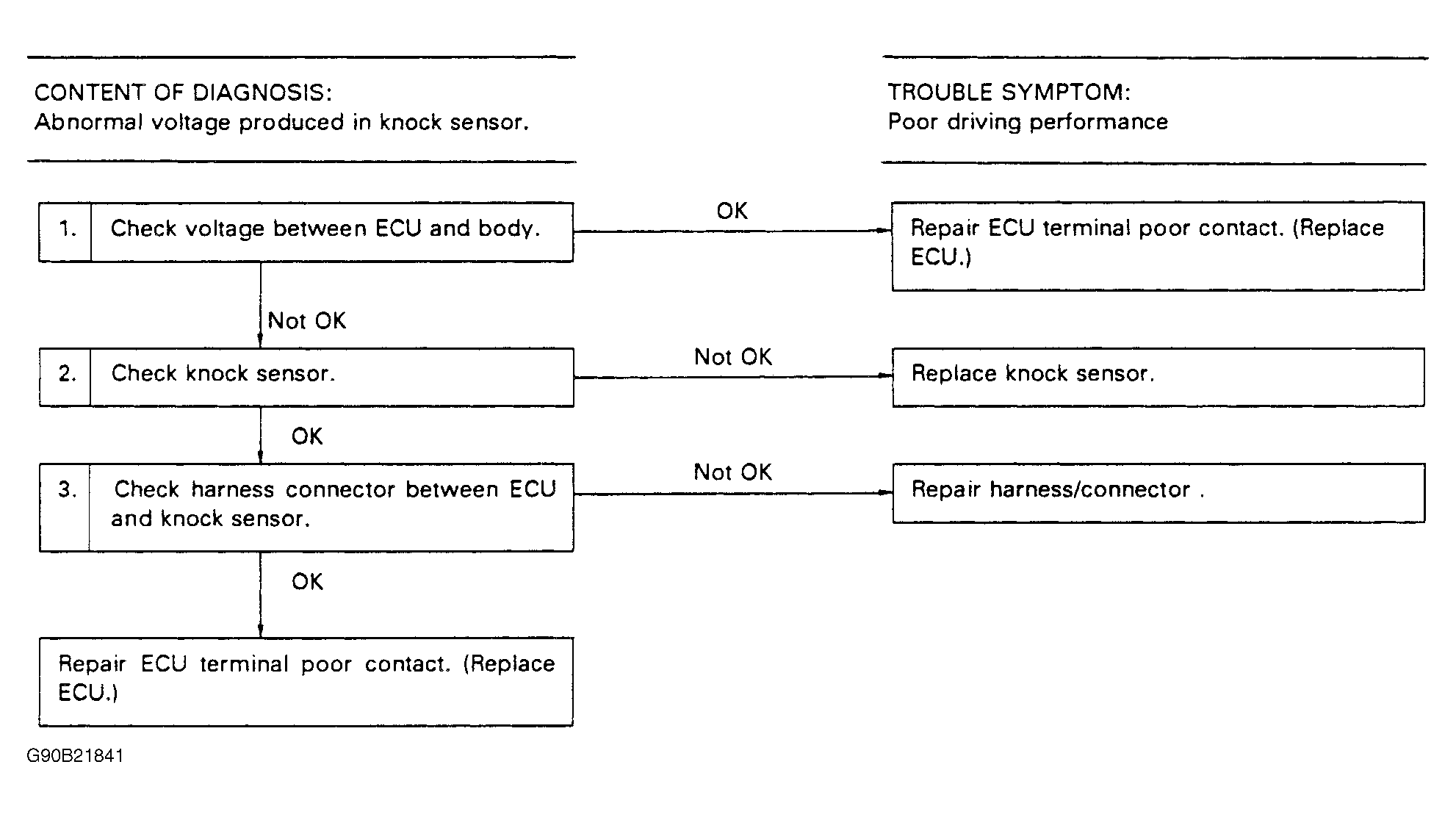

Fig 2: Flow Chart - Code 22, Knock Sensor

G90B21841
