Code 42: Idle Switch

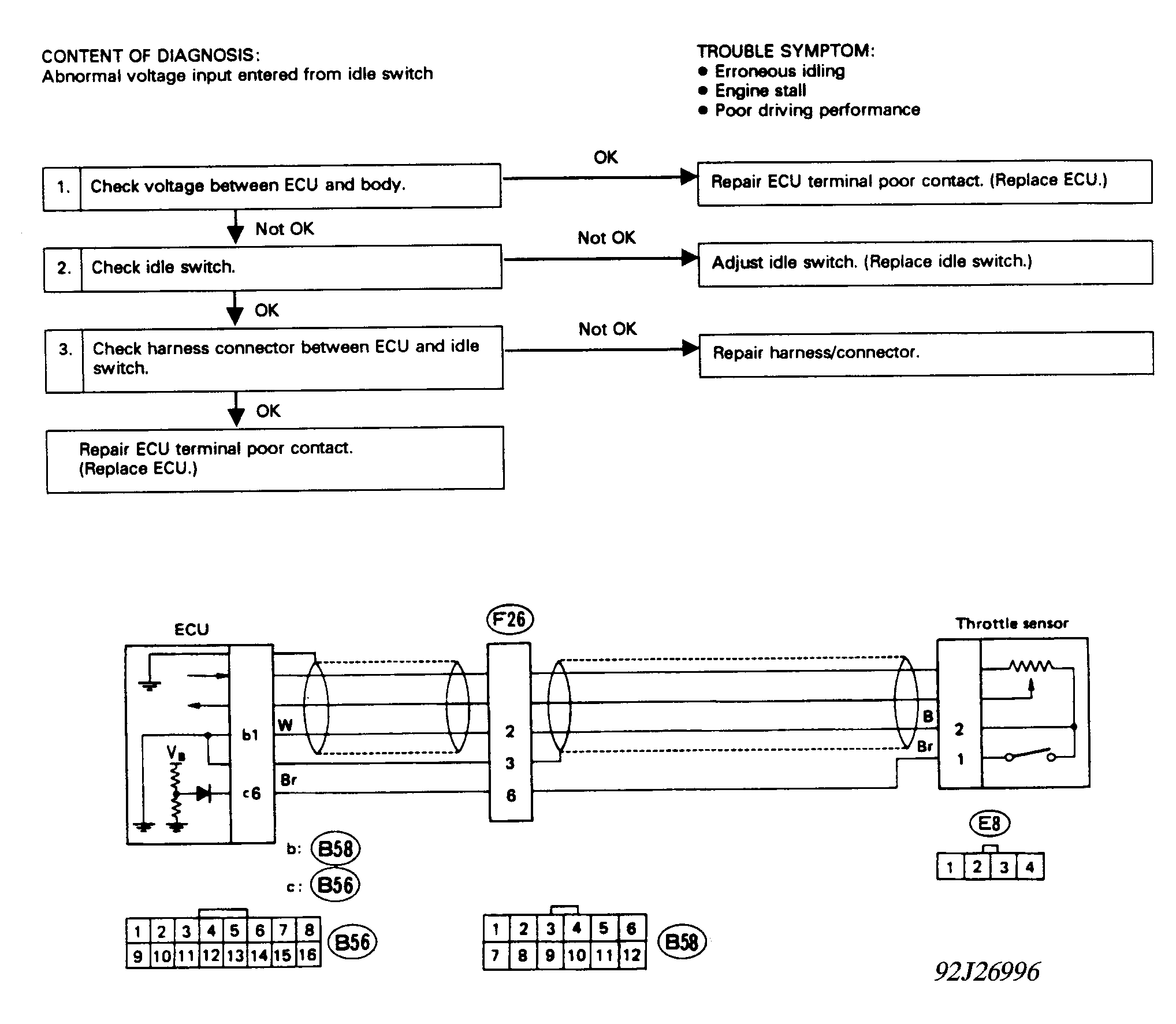

Fig 1: Schematic - Code 42, Idle Switch

G92J26996

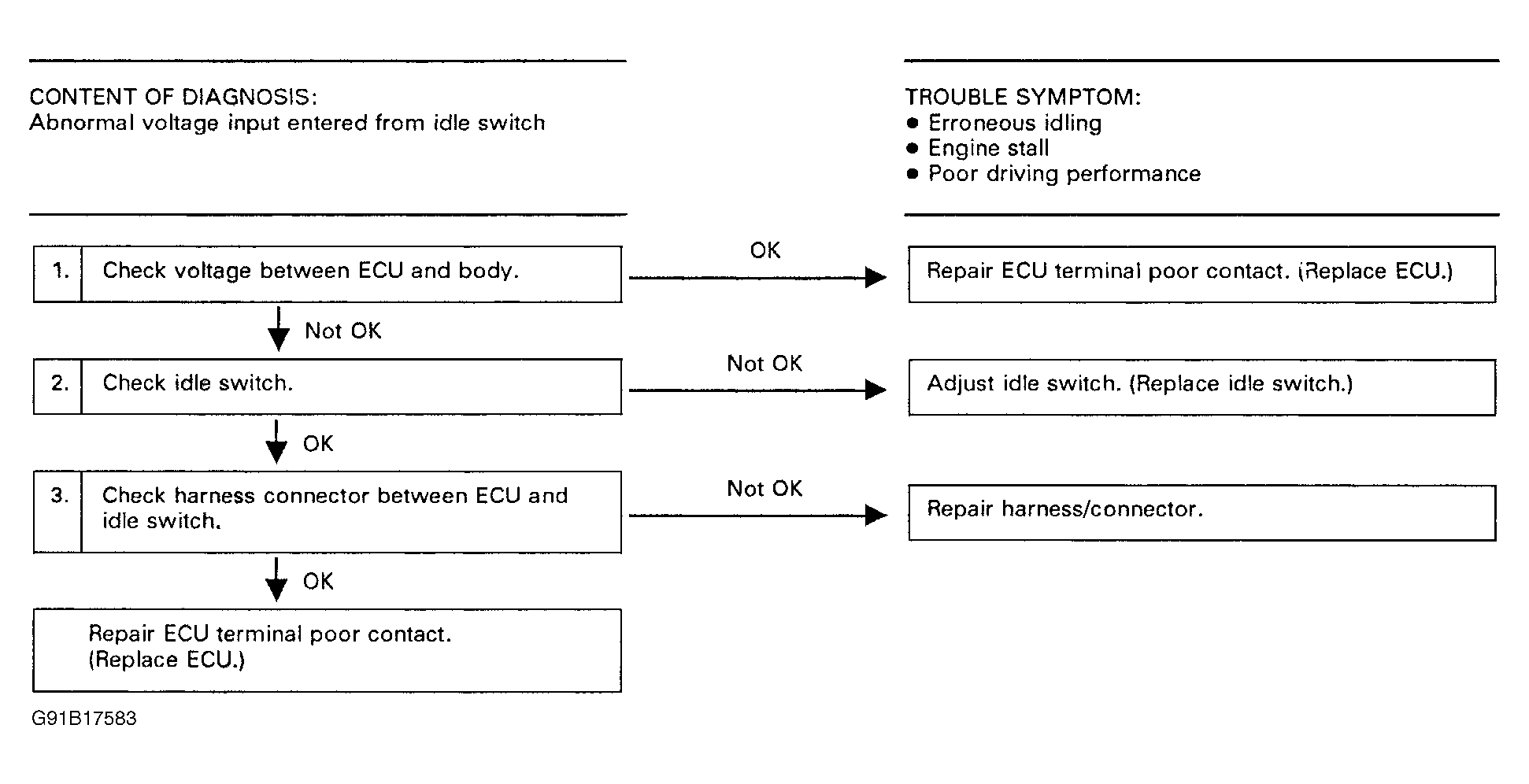

Fig 2: Flow Chart - Code 42, Idle Switch

G91B17583
