Codes 14, 15, 16 & 17: Fuel Injectors

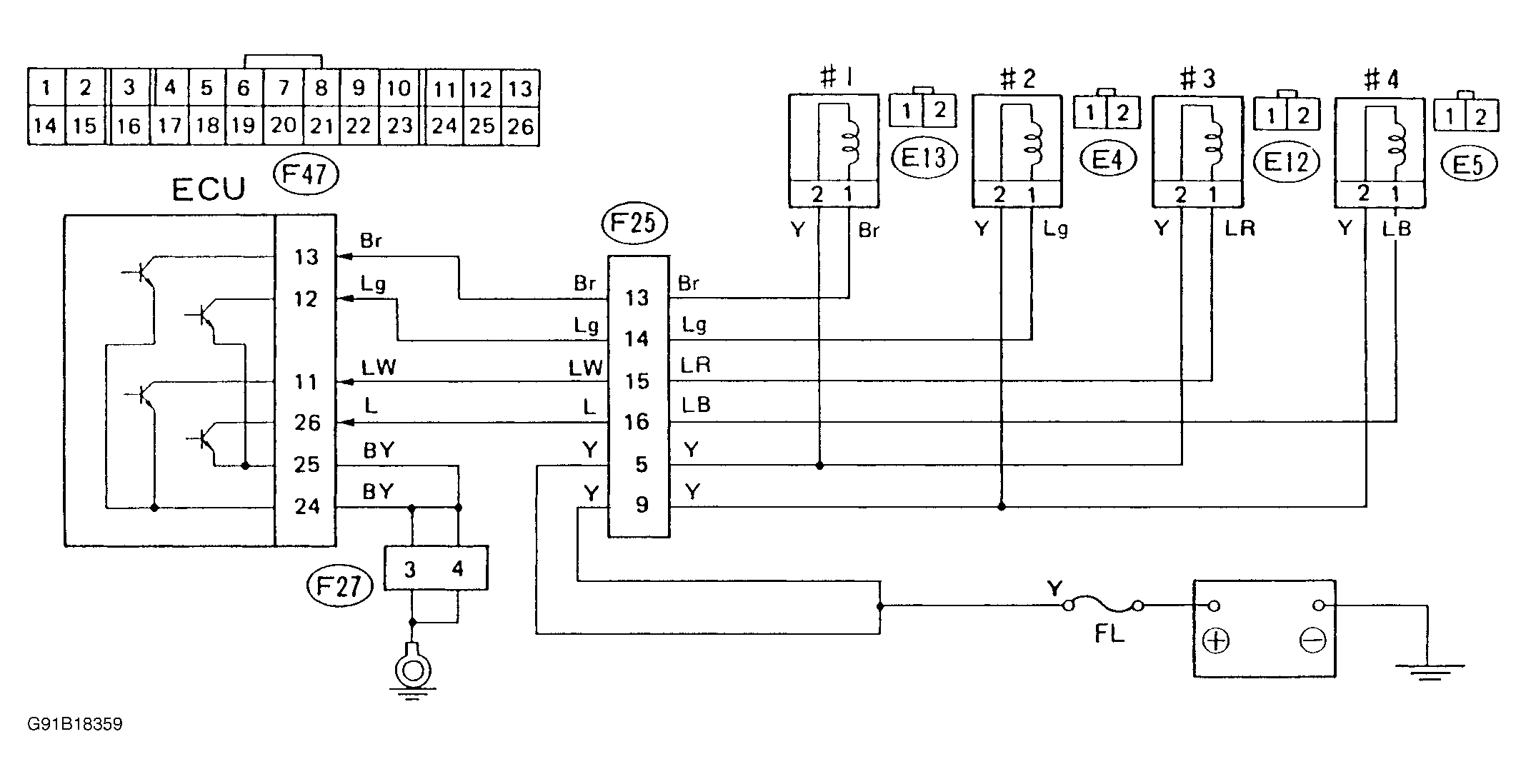

Fig 1: Schematic - Codes 14, 15, 16 & 17, Fuel Injectors
G91B18359

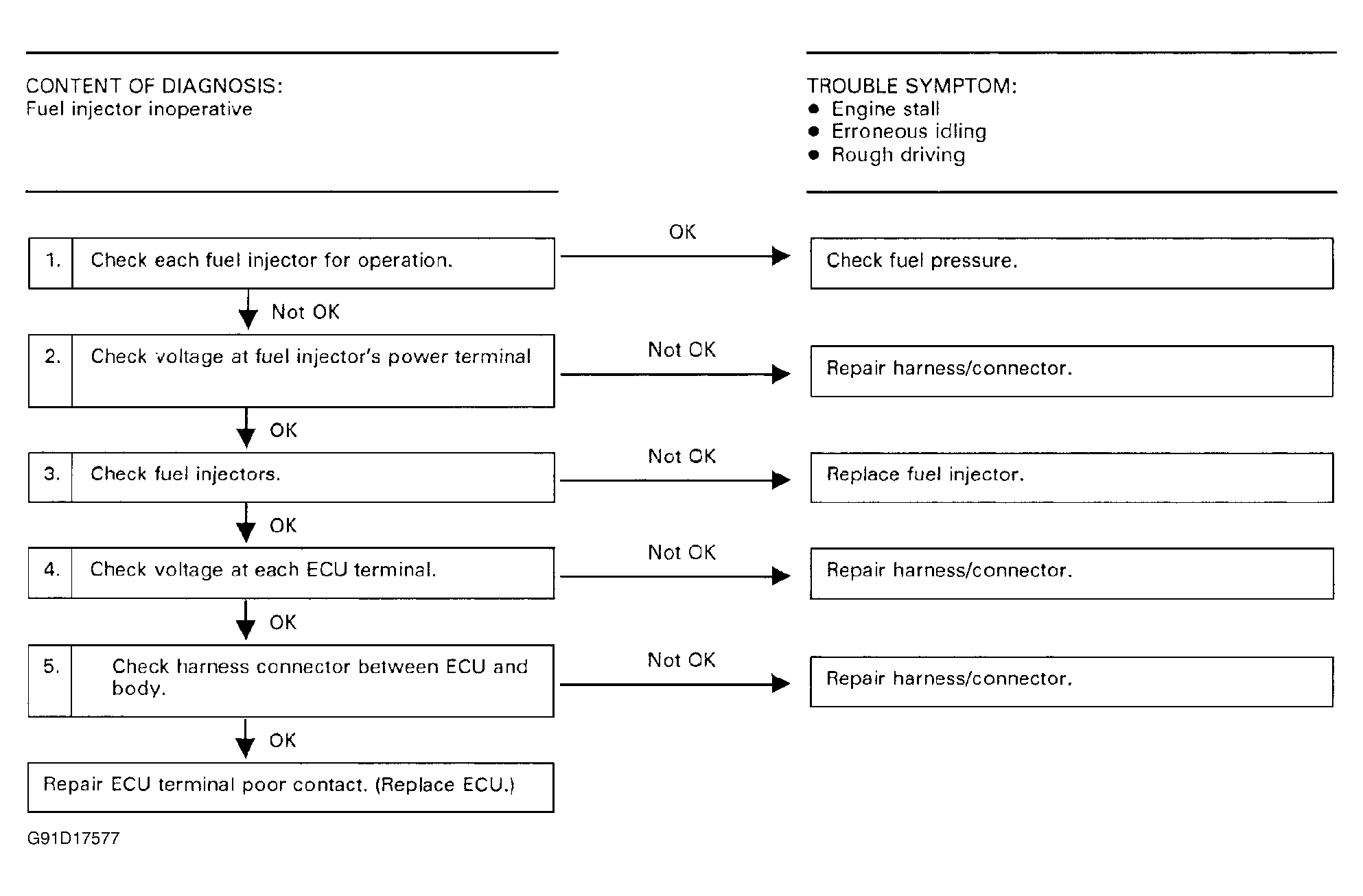

Fig 2: Flow Chart - Codes 14, 15, 16 & 17, Fuel Injectors
G91D17577
