Steering Column: Reassembly

To reassemble, reverse disassembly procedure. Lubricate shaft sliding section at lower and upper bearings and horn brush.
With steering wheel in place, check clearance between steering wheel and cover. If clearance exceeds .04-.12" (1.0-3.0 mm), loosen column cover screws to adjust clearance.

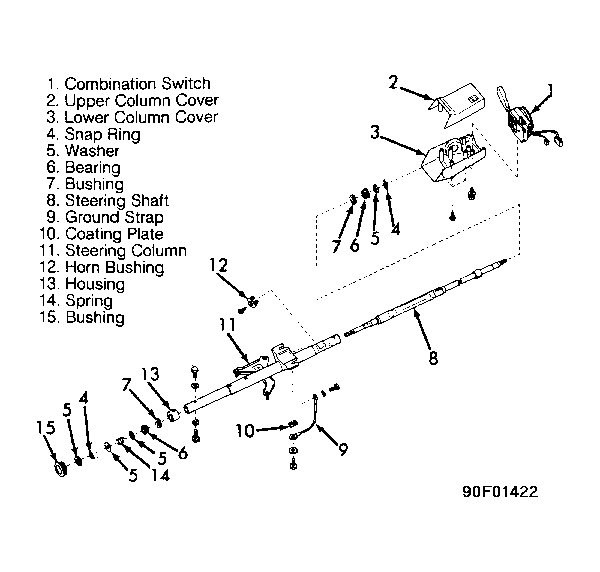

Fig 1: Identifying Steering Column Components (Justy)

Courtesy of SUBARU OF AMERICA, INC.

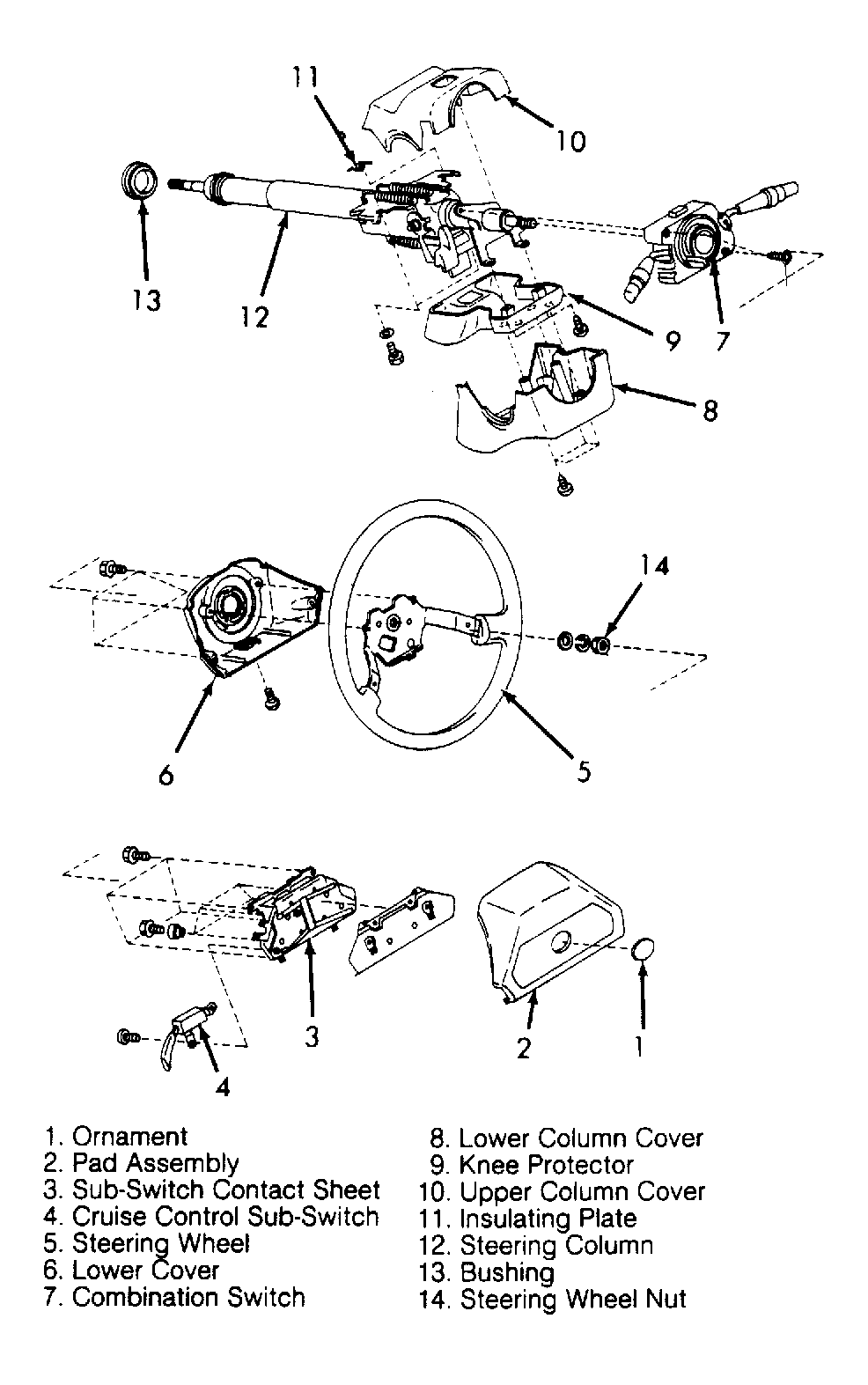

Fig 2: Identifying Rigid Steering Column Components (Legacy W/O SRS)

Courtesy of SUBARU OF AMERICA, INC.

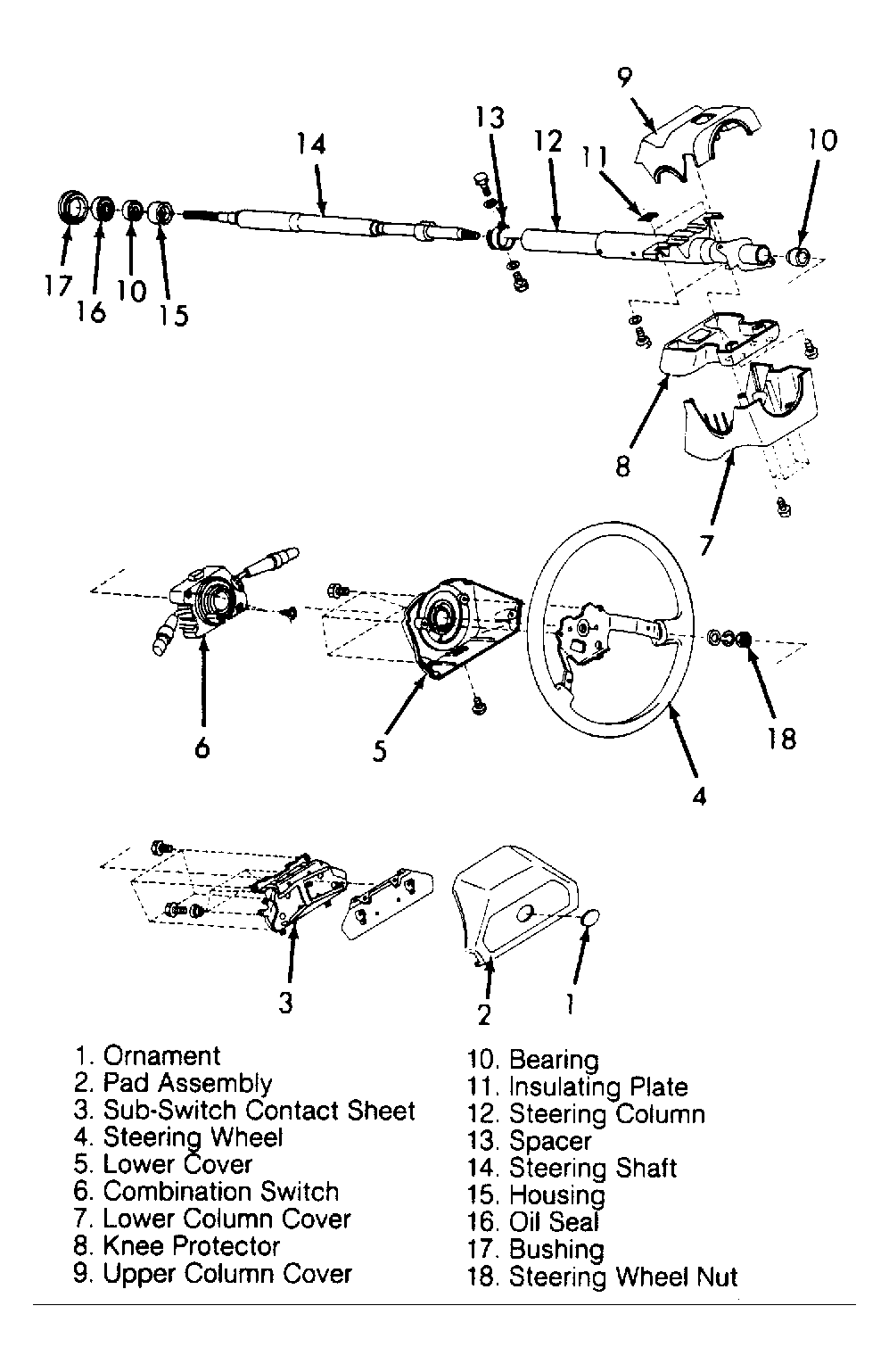

Fig 3: Identifying Tilt Steering Column Components (Legacy W/O SRS)

Courtesy of SUBARU OF AMERICA, INC.

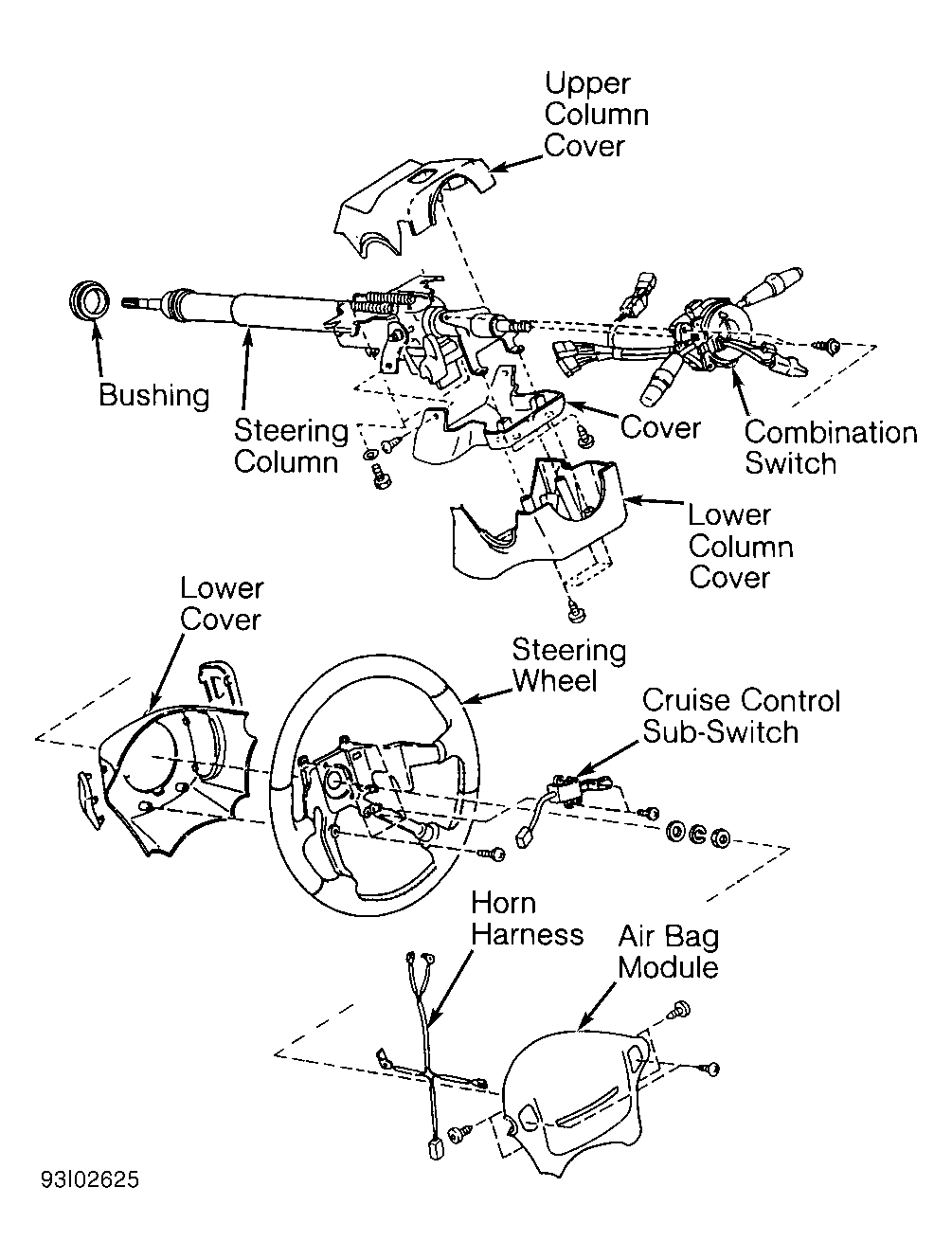

Fig 4: Identifying Steering Column Components (Legacy With SRS)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Steering Column Components (Loyale)

Courtesy of SUBARU OF AMERICA, INC.

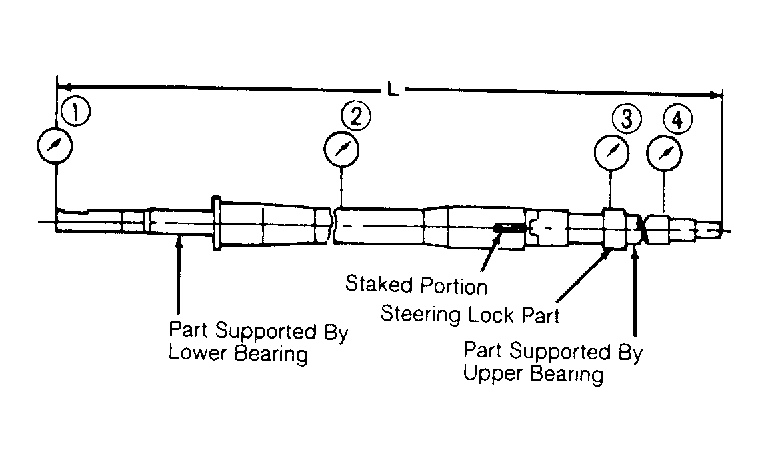

Fig 6: Measuring Steering Shaft Dimensions

Courtesy of SUBARU OF AMERICA, INC.
