Code 21: Coolant (Water) Temperature Sensor

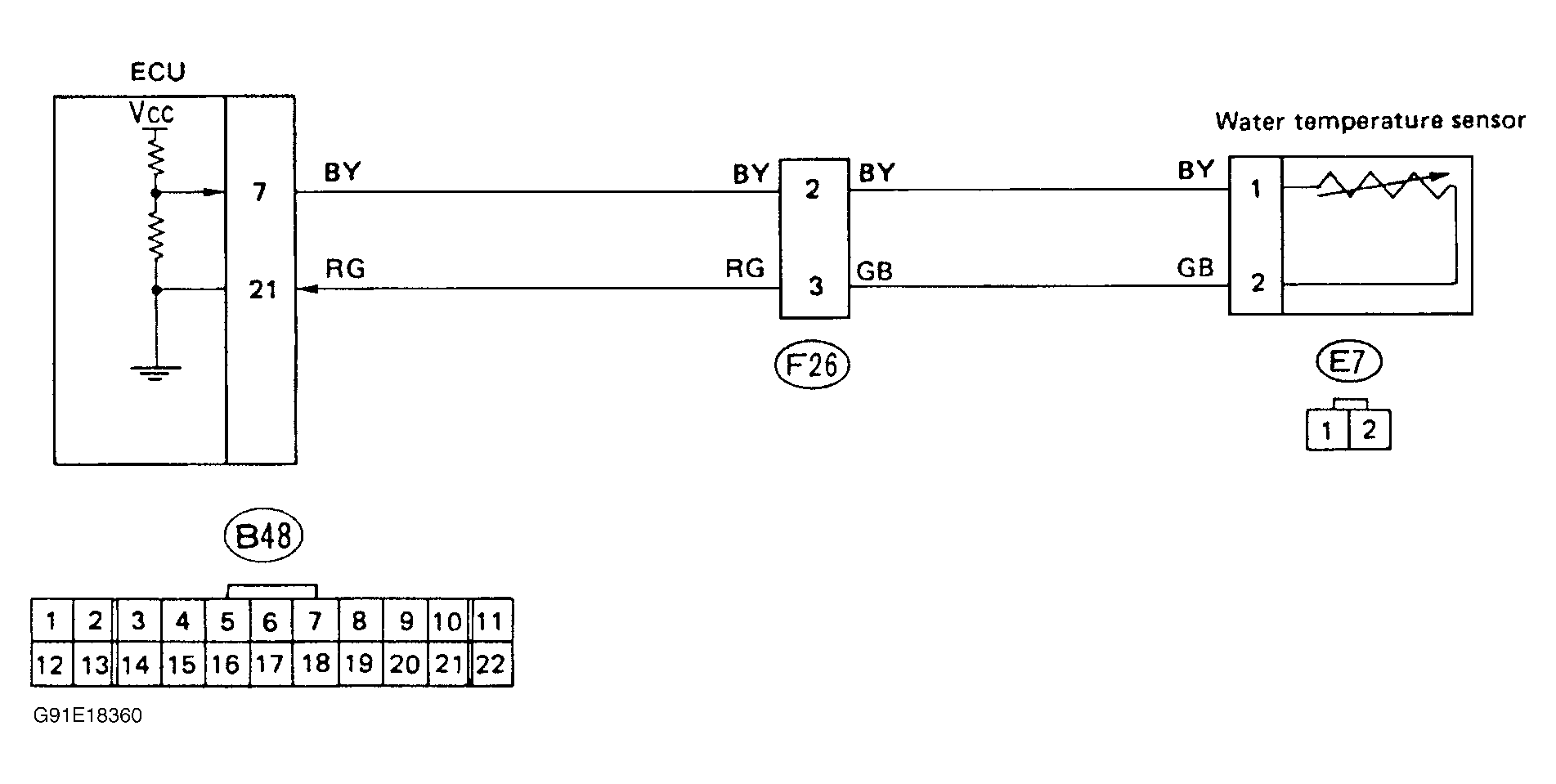

Fig 1: Schematic - Code 21, Coolant (Water) Temperature Sensor
G91E18360

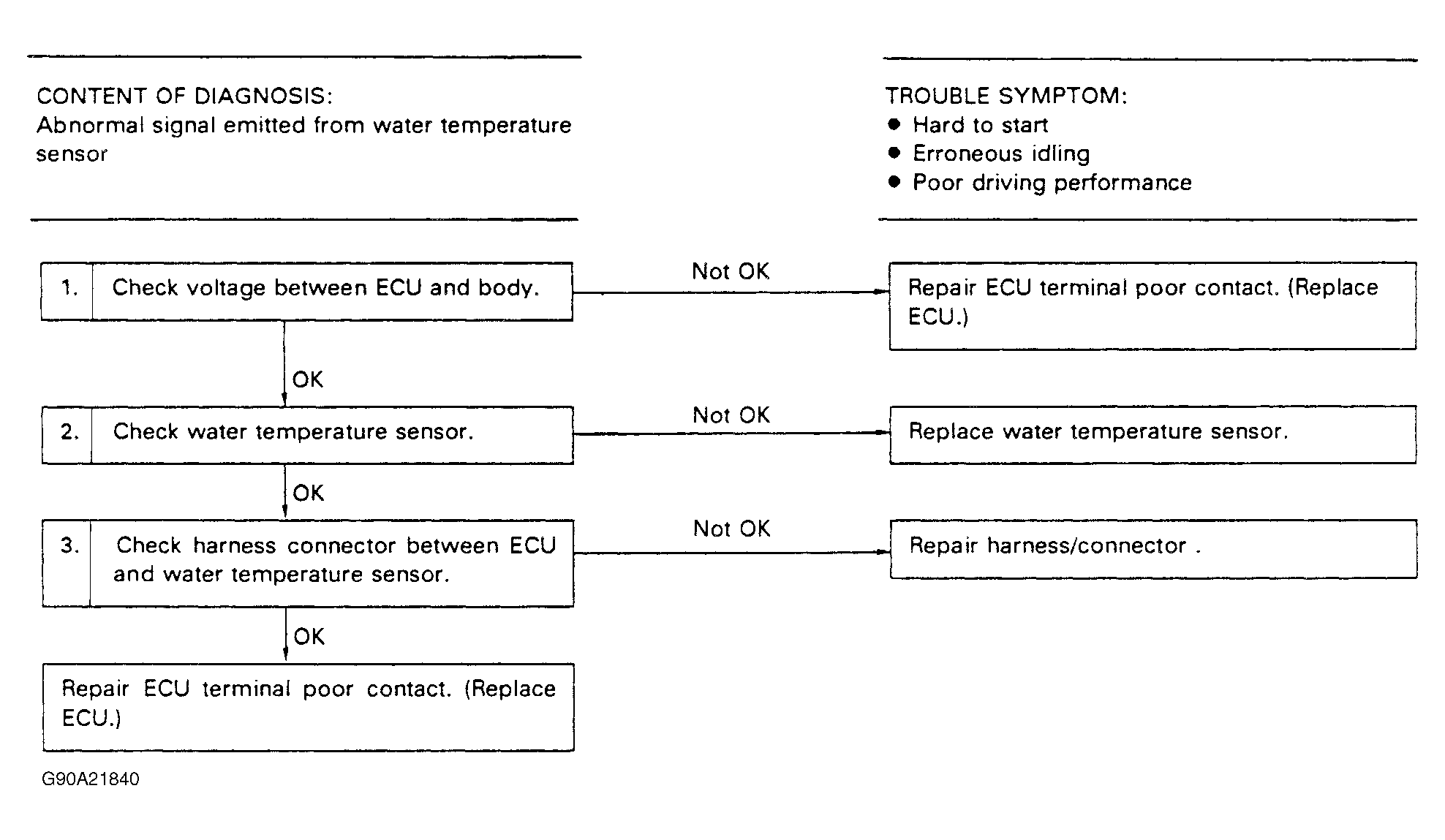

Fig 2: Flow Chart - Code 21, Coolant (Water) Temperature Sensor
G90A21840
