Circuit Protection Devices

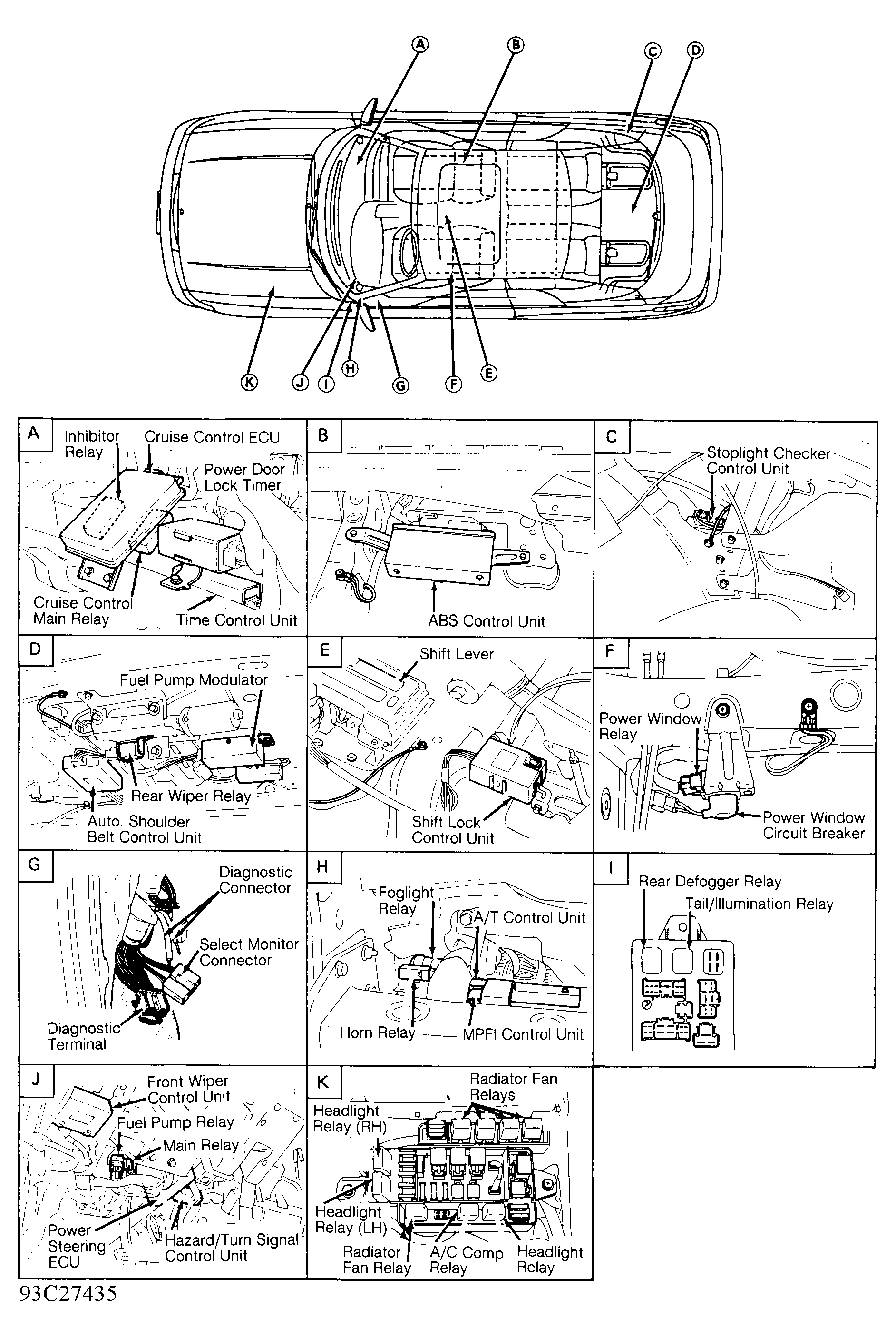

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Fuse/Relay Block | ||
| Engine Compartment | On left side of engine compartment, behind battery. | |
| Passenger Compartment | Behind left side of dash, above hood release handle. | |
| Power Window Circuit Breaker | On bracket, under driver's seat. See Figure . | |
