Code 11: Crank Angle Sensor No. 1

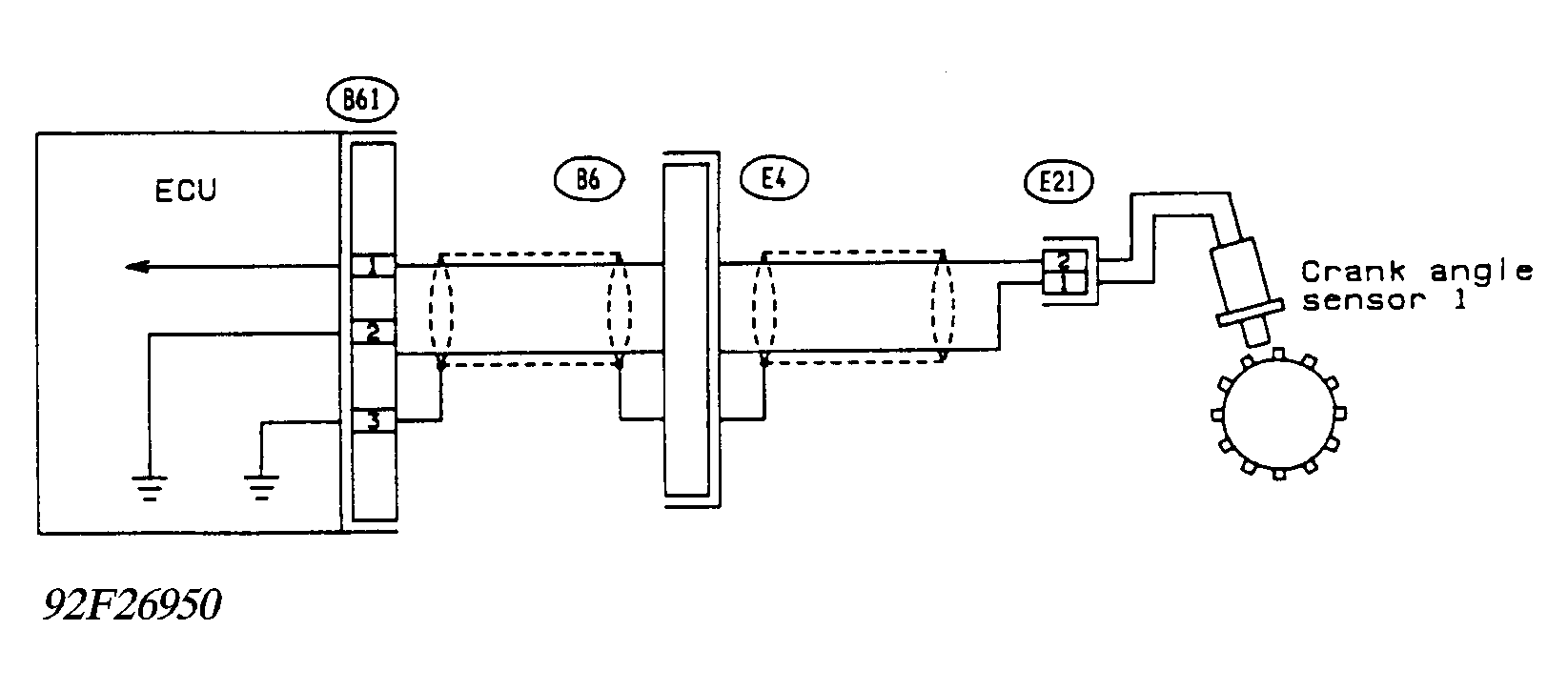

Fig 1: Schematic - Code 11, Crank Angle Sensor No. 1
G92F26950

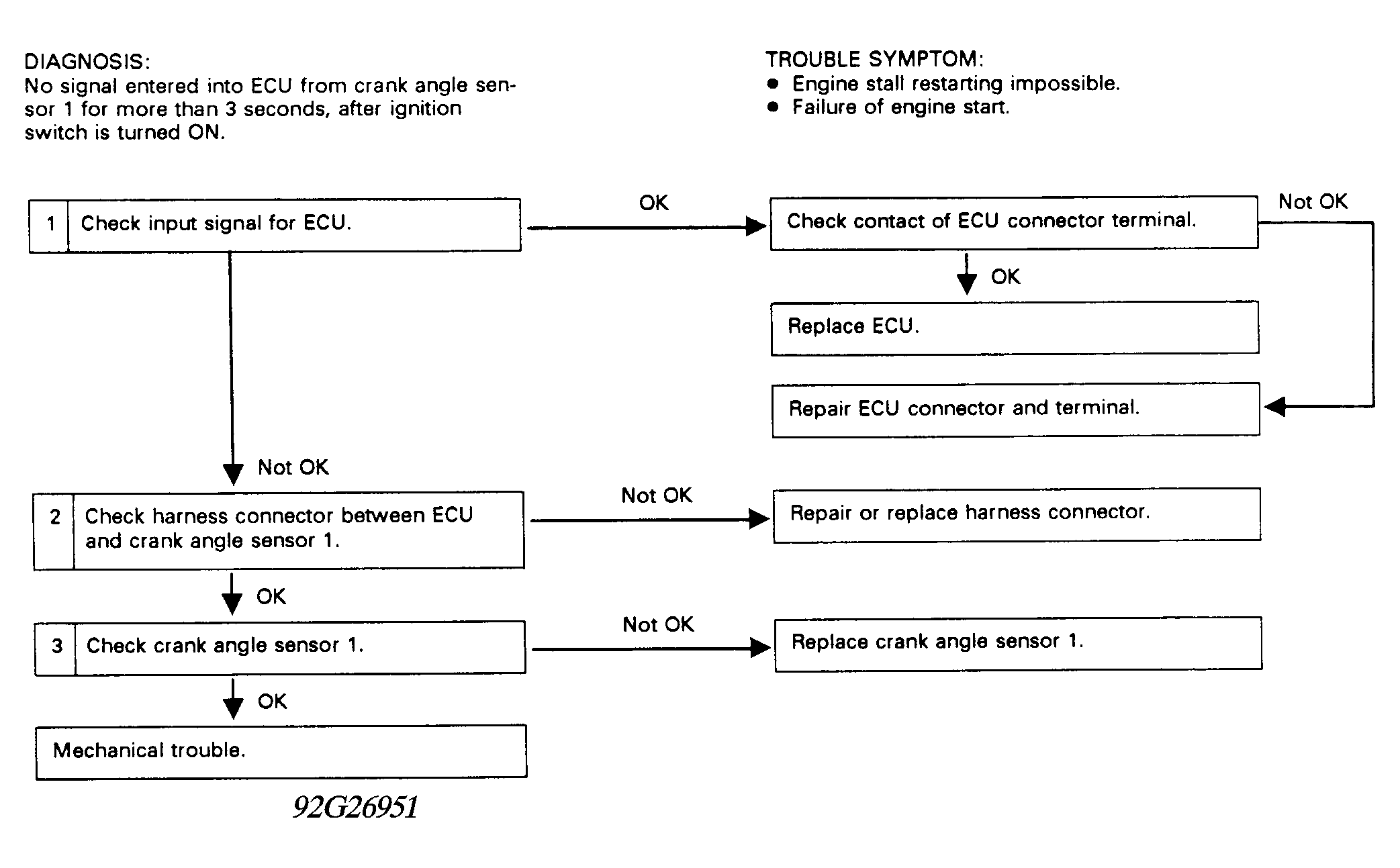

Fig 2: Flow Chart - Code 11, Crank Angle Sensor No. 1
G92G26951
