Code 13: Cam Angle Sensor

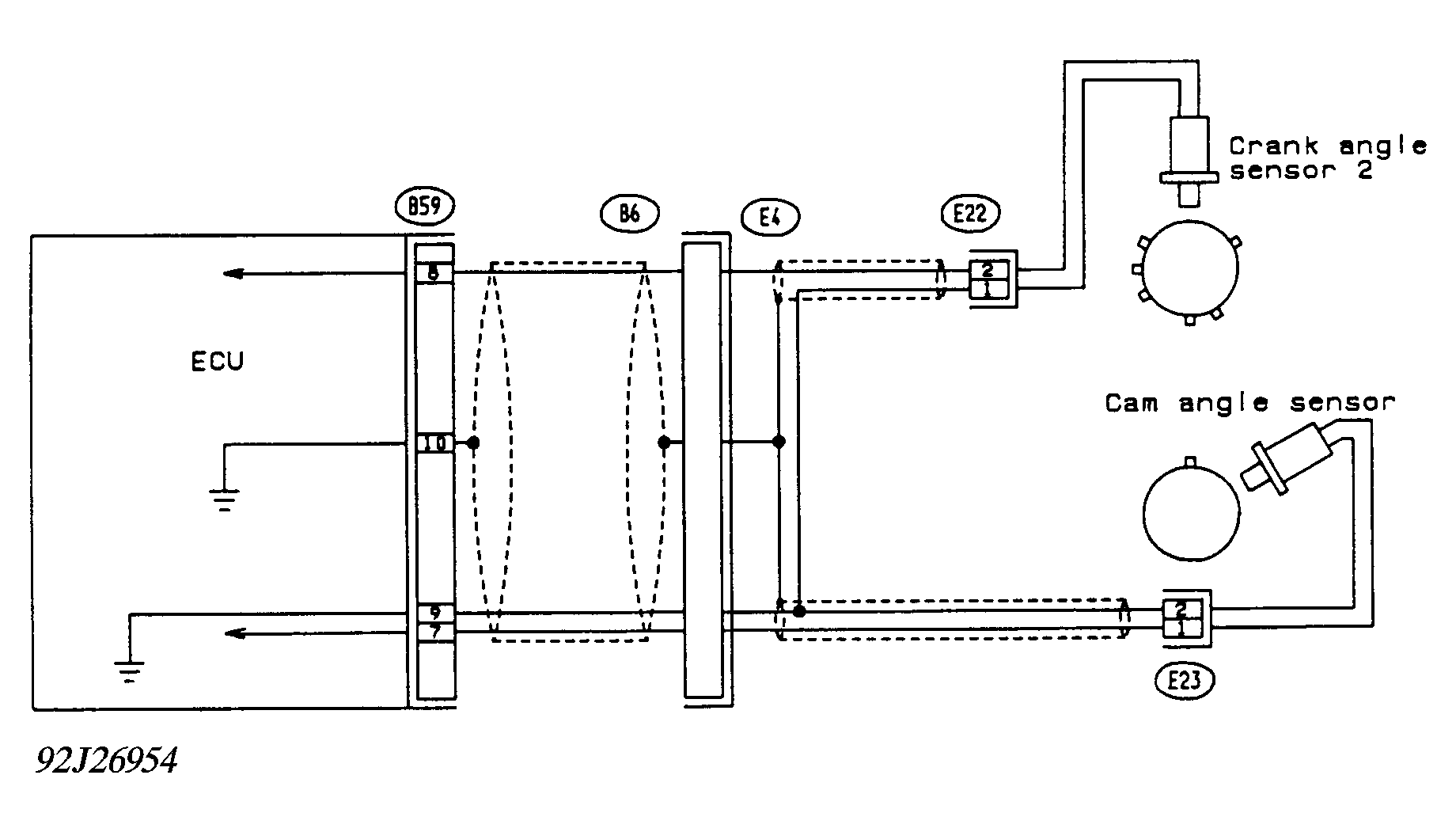

Fig 1: Schematic - Code 13, CAM Angle Sensor

G92J26954

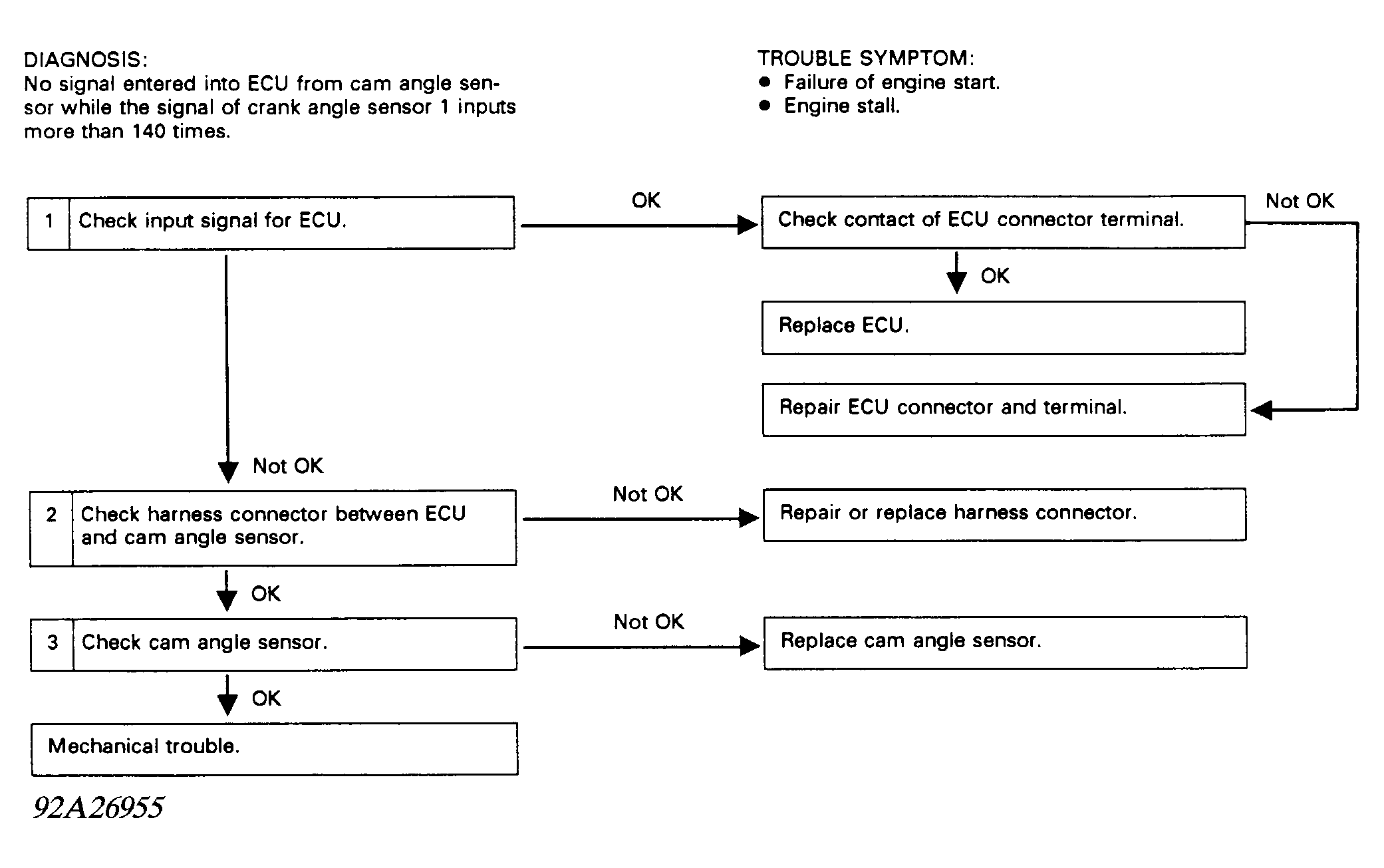

Fig 2: Flow Chart - Code 13, CAM Angle Sensor

G92A26955
