Code 31: Throttle Position Sensor

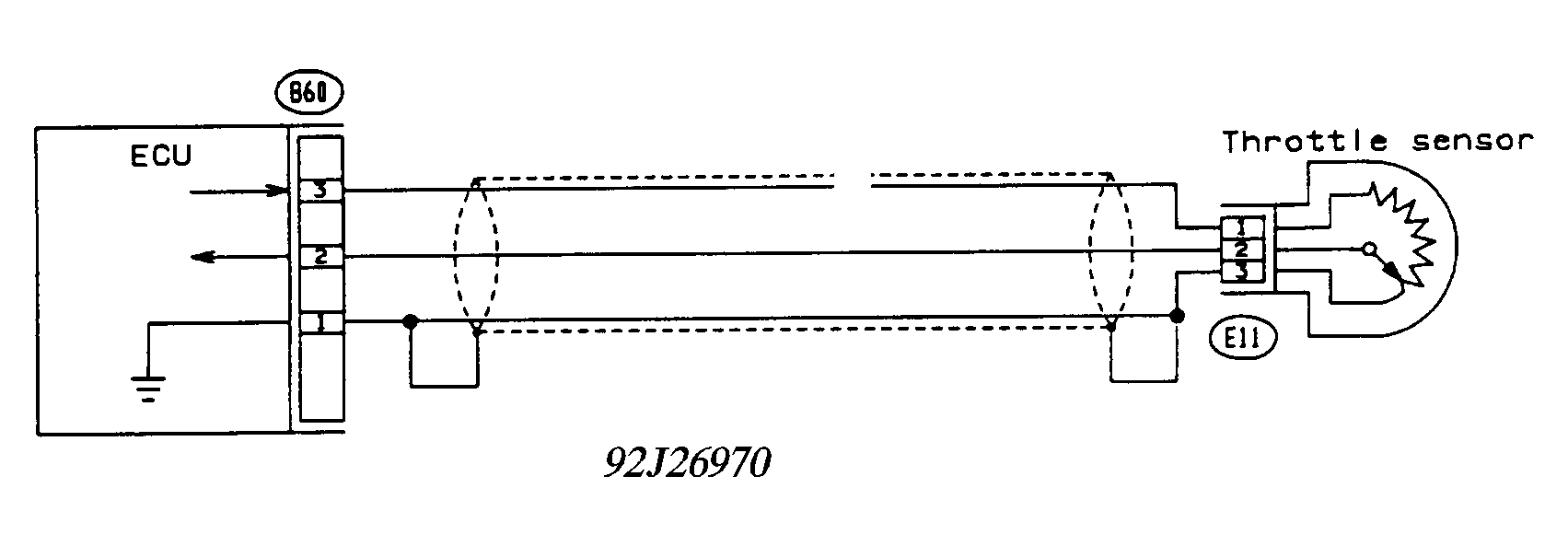

Fig 1: Schematic - Code 31, Throttle Position Sensor
G92J26970

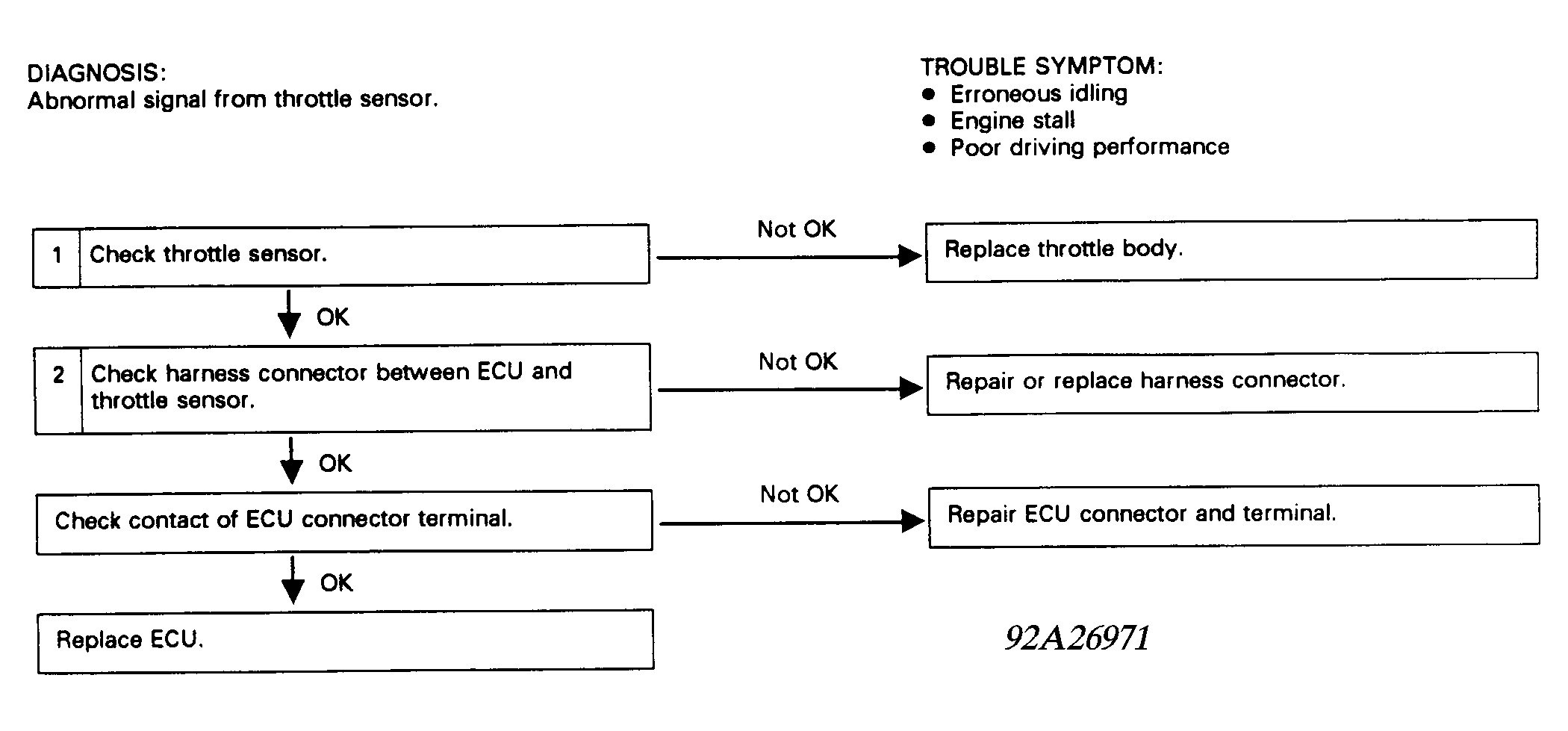

Fig 2: Flow Chart - Code 31, Throttle Position Sensor
G92A26971
