Code 32: Oxygen (O2) Sensor No. 1

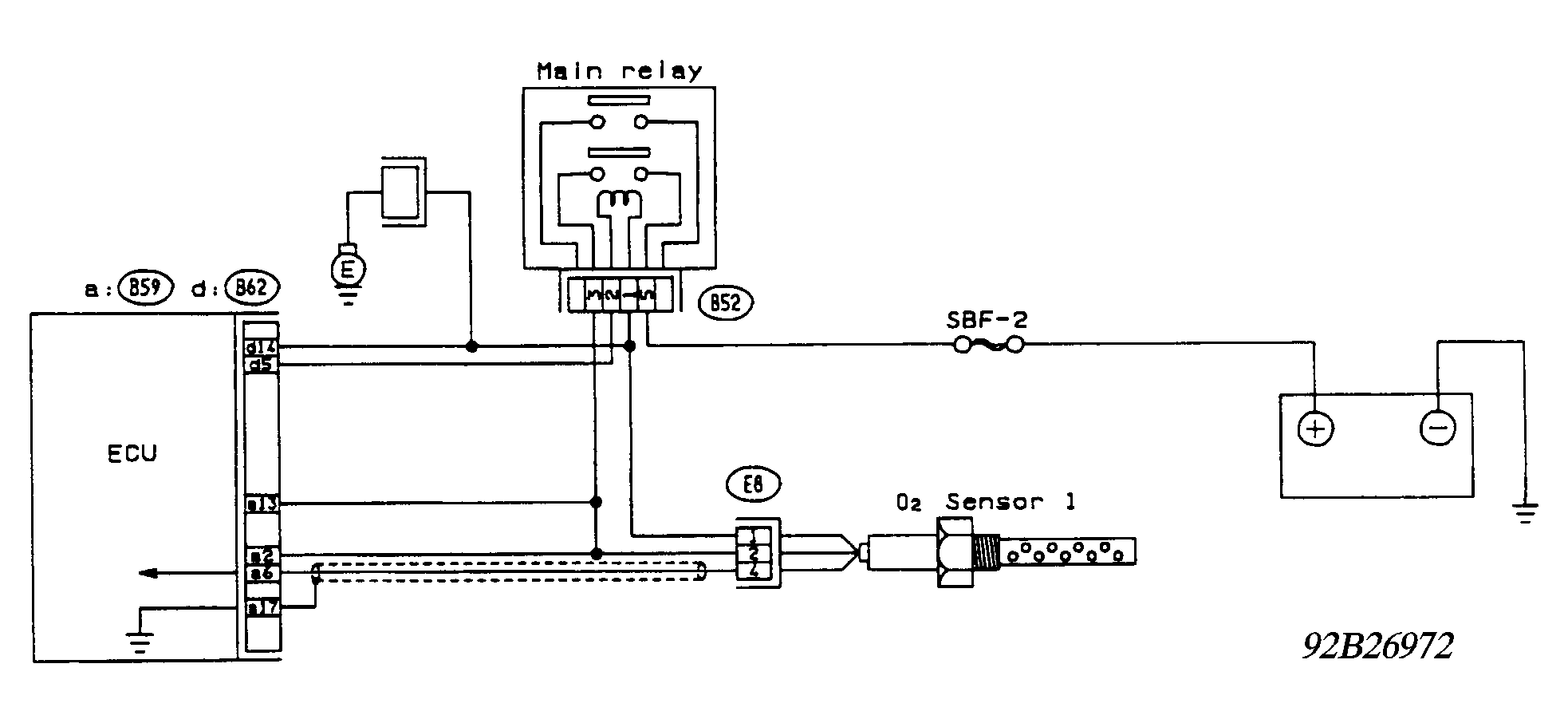

Fig 1: Schematic - Code 32, Oxygen (O2) Sensor No. 1
G92B26972

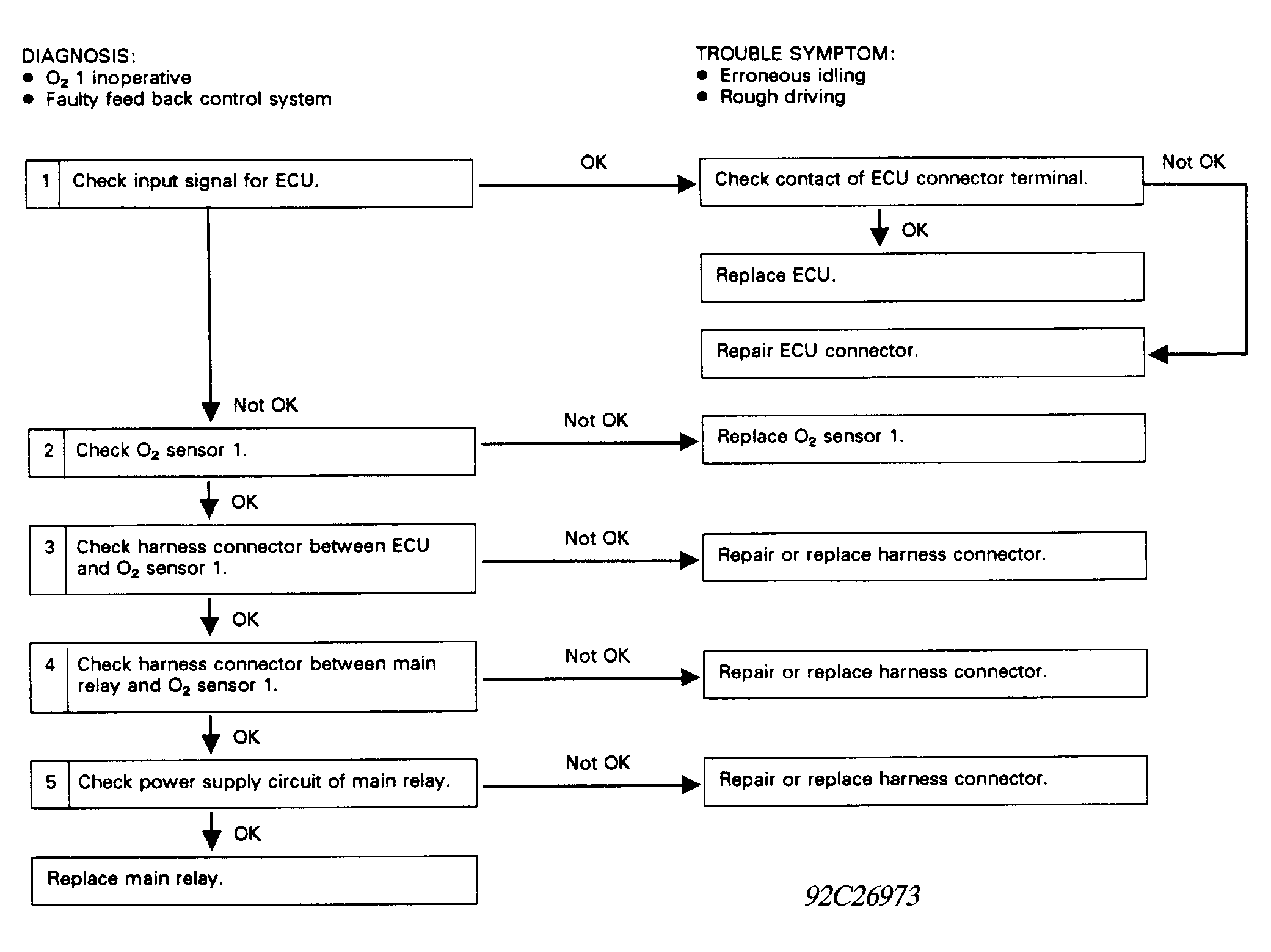

Fig 2: Flow Chart - Code 32, Oxygen (O2) Sensor No. 1
G92C26973
