Code 33: Vehicle Speed Sensor No. 2

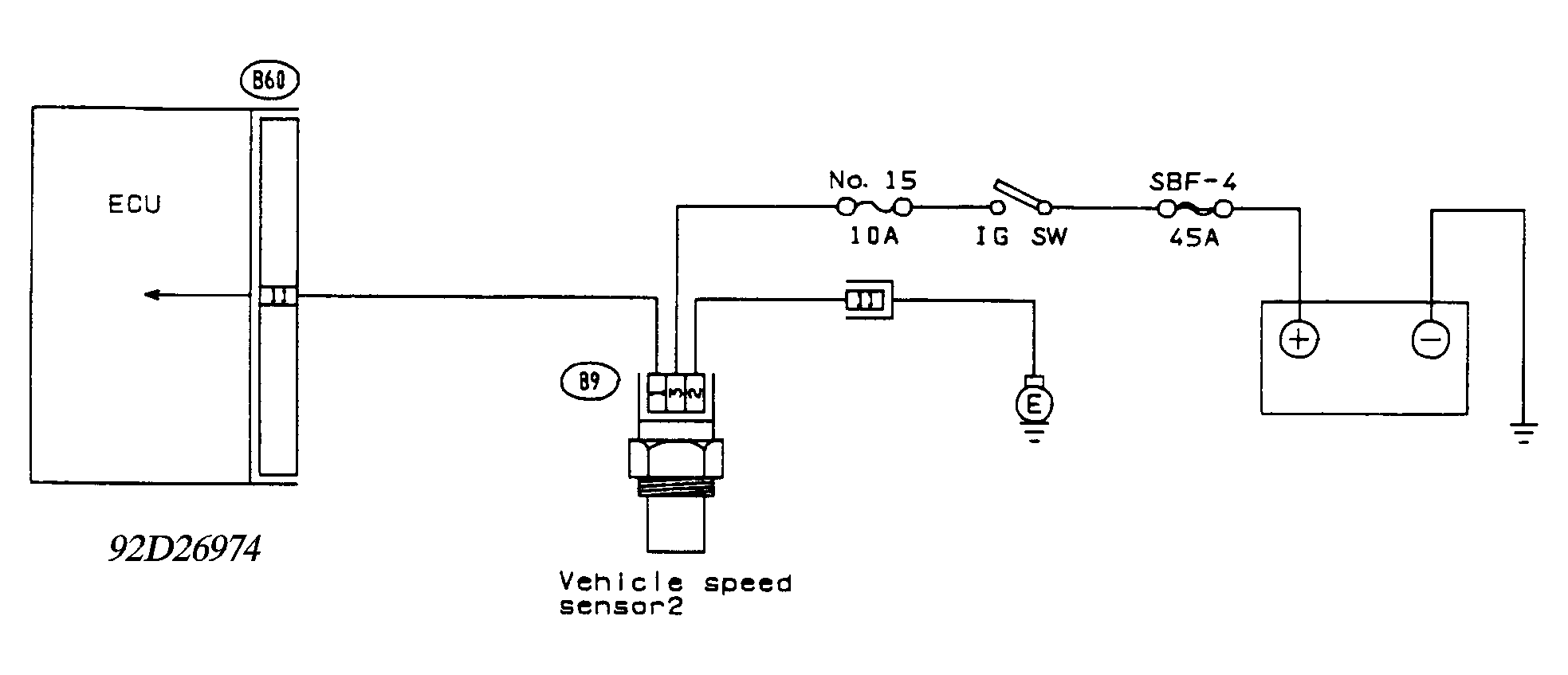

Fig 1: Schematic - Code 33, Vehicle Speed Sensor No. 2
G92D26974

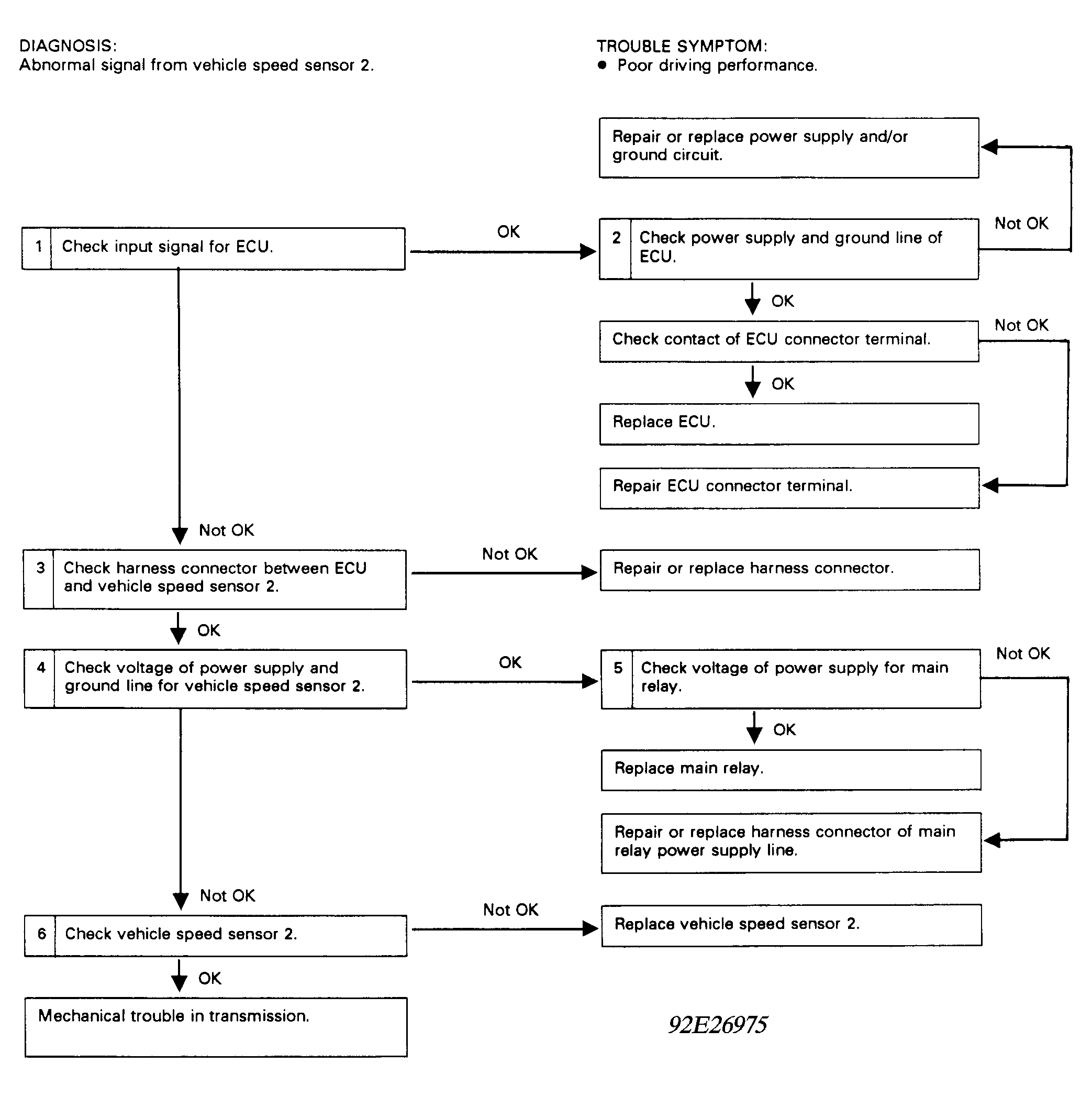

Fig 2: Flow Chart - Code 33, Vehicle Speed Sensor No. 2
G92E26975
