Code 38: Engine Torque Control

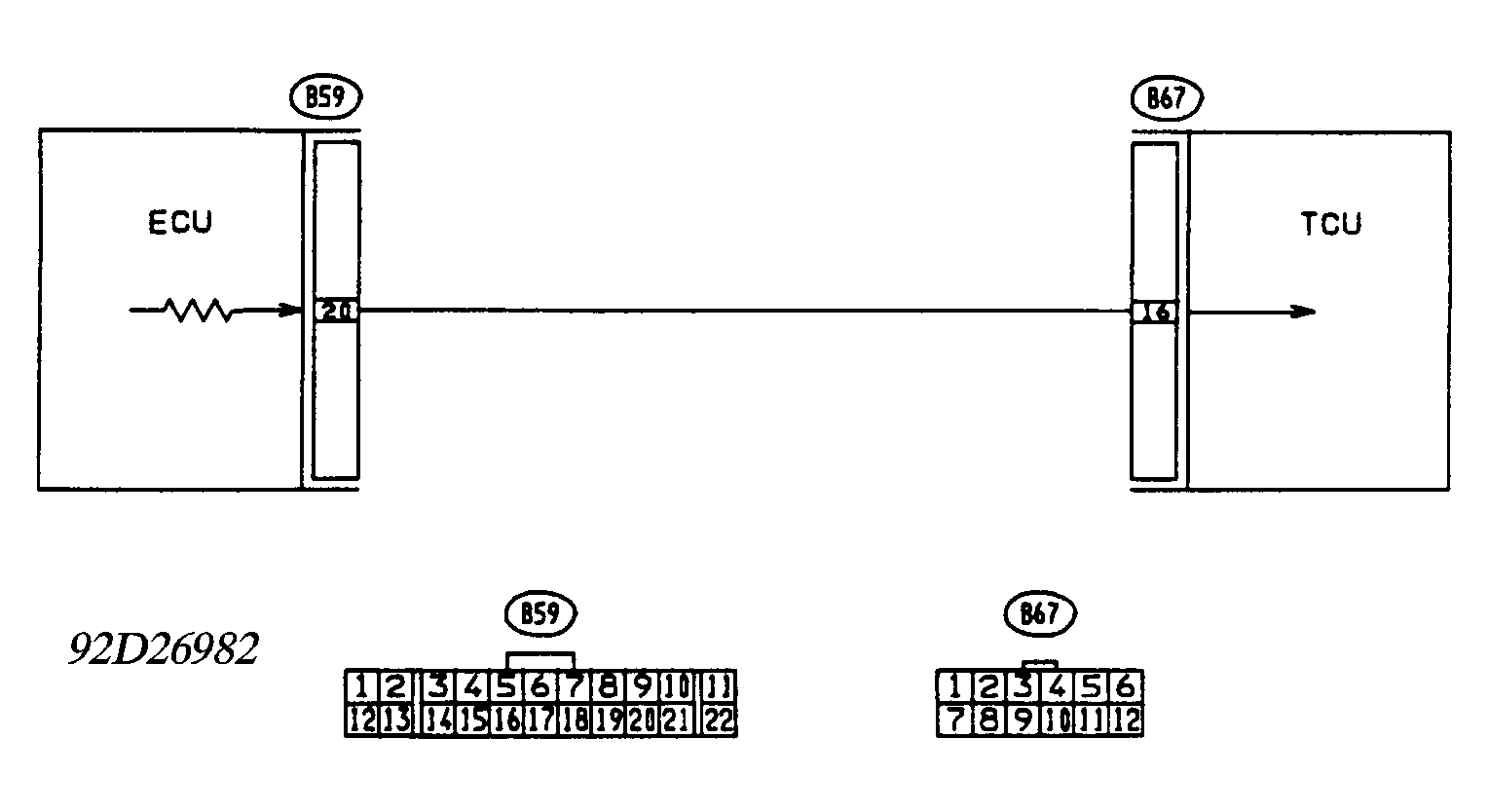

Fig 1: Schematic - Code 38, Engine Torque Control

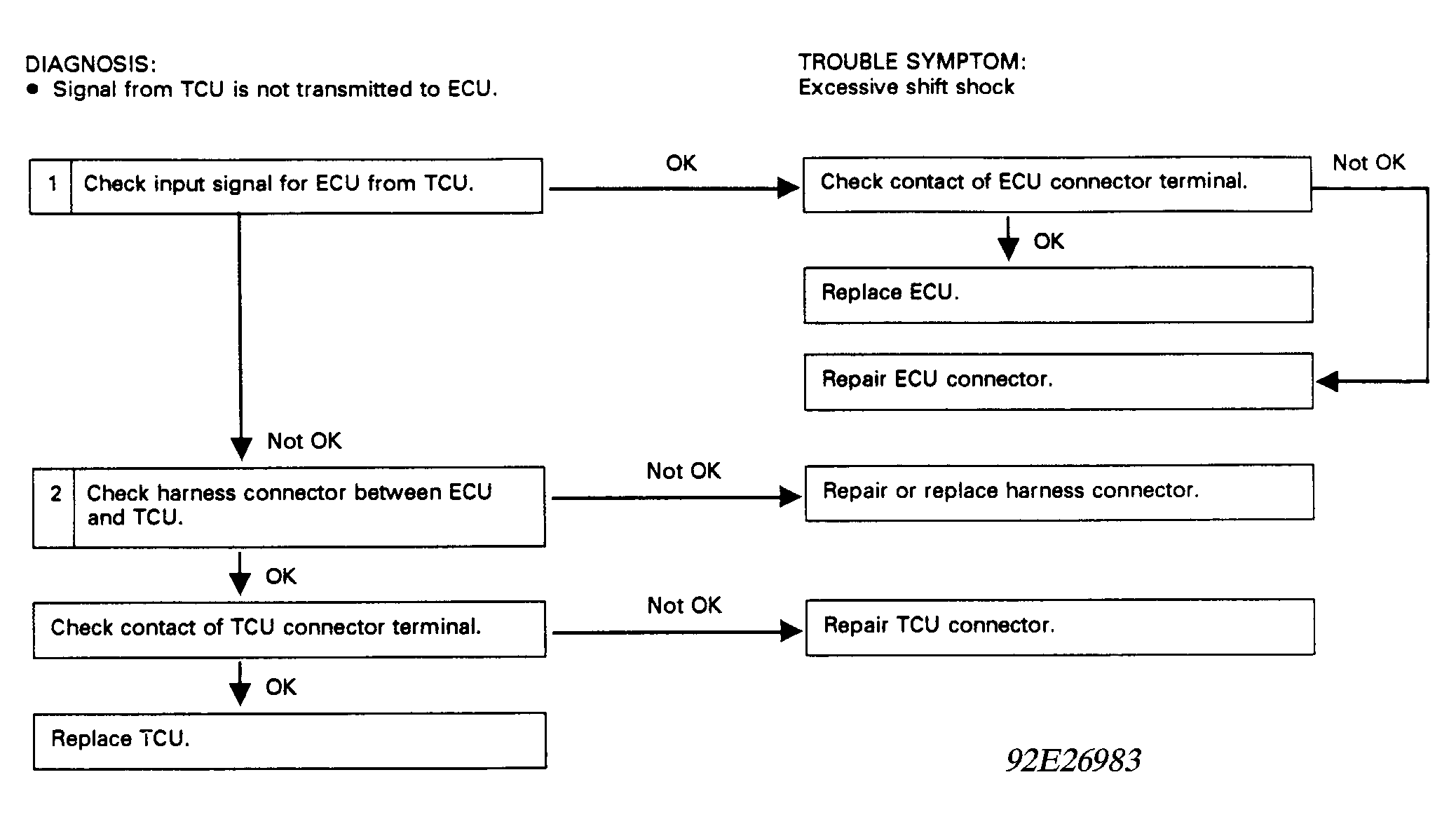

Fig 2: Flow Chart - Code 38, Engine Torque Control
