Code 55: Exhaust Gas RECIRCULATION (EGR) Temperature Sensor

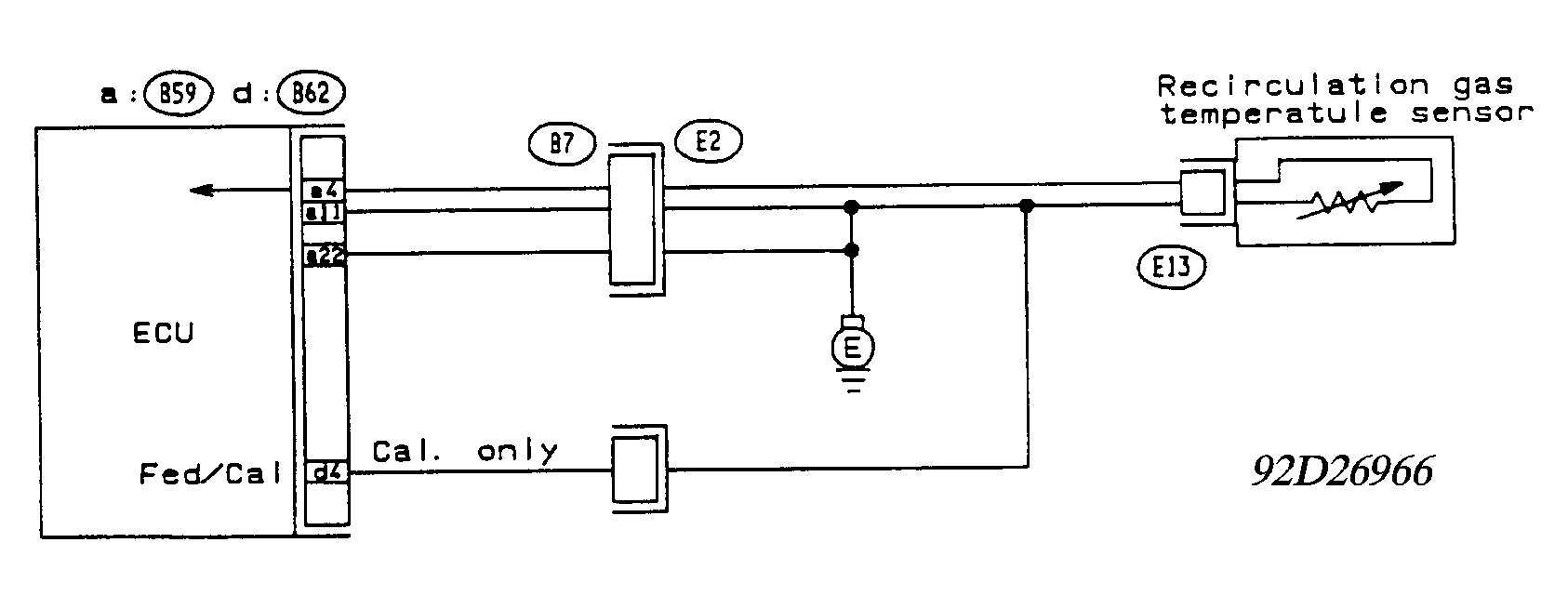

Fig 1: Schematic - Code 55, Exhaust Gas Recirculation (EGR) Temp Sens
G92D26966

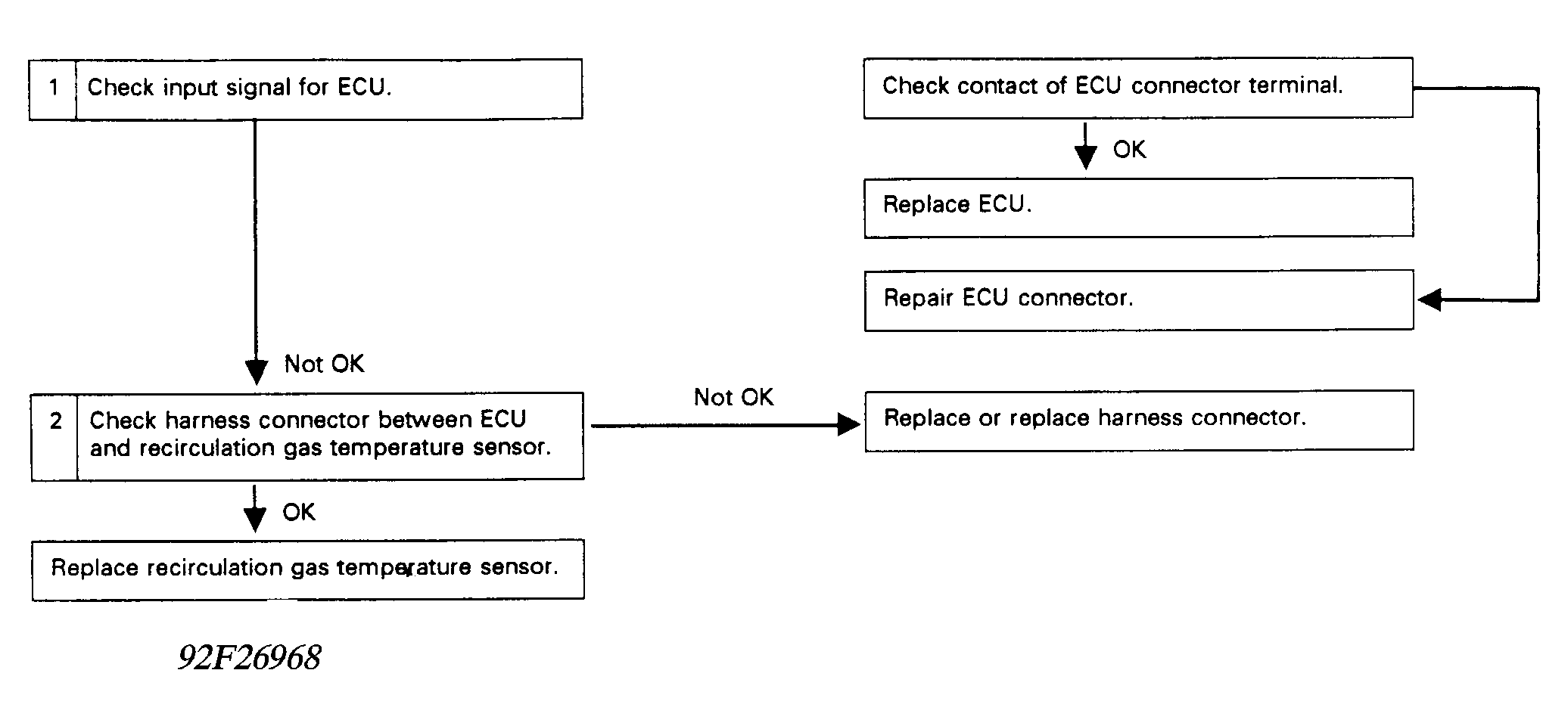

Fig 2: Flow Chart - Code 55, Exhaust Gas Recirculation (EGR) Temp Sens
G92F26968
