Retrieving Codes

  1. Enter specific test mode by connecting or disconnecting read memory and/or test mode connectors as shown in the RELATIONSHIP BETWEEN MODES & CONNECTORS  table. Connectors are located behind left side of dash. See Fig 1 .
  2. Observe either CHECK ENGINE or O2 sensor monitor light. Note trouble codes, if any. Long illumination periods of 1.2 seconds designate the tens digit in the numbered codes. Short illumination periods of .2 second designate the ones digit in the numbered codes.
  3. Tens and one digits are separated by a .03-second interval of non illumination. Example: 3 long flashes (1.2 seconds each), followed by 5 short flashes (.02 second each) designate code 35.
  4. Code is repeated after a break of 2 seconds, unless another code is present which will be displayed after the 2-second break. Once all codes have been displayed, sequence will repeat.

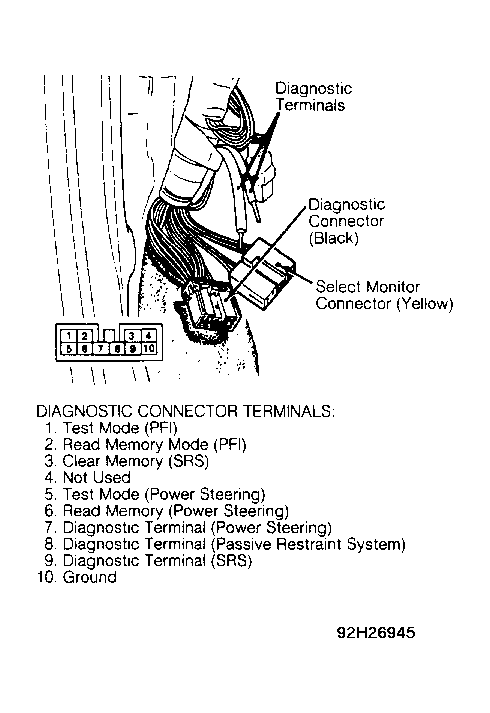

Fig 1: Locating Diagnostic Test Connectors
G92H26945Courtesy of SUBARU OF AMERICA, INC.
RELATIONSHIP BETWEEN MODES & CONNECTORS

Mode Read Memory Connector Test Mode Connector
U-CHECK (1) Disconnected Disconnected
READ MEMORY (1) Connected Disconnected
D-CHECK (1) Disconnected Connected
CLEAR MEMORY (2) Connected Connected
(1) Key on, engine off.
(2) Key on, engine running.
