Code 33: Vehicle Speed Sensor No. 2
NOTE:
Refer to illustration for ECU connector and terminal identification. See Figure
.

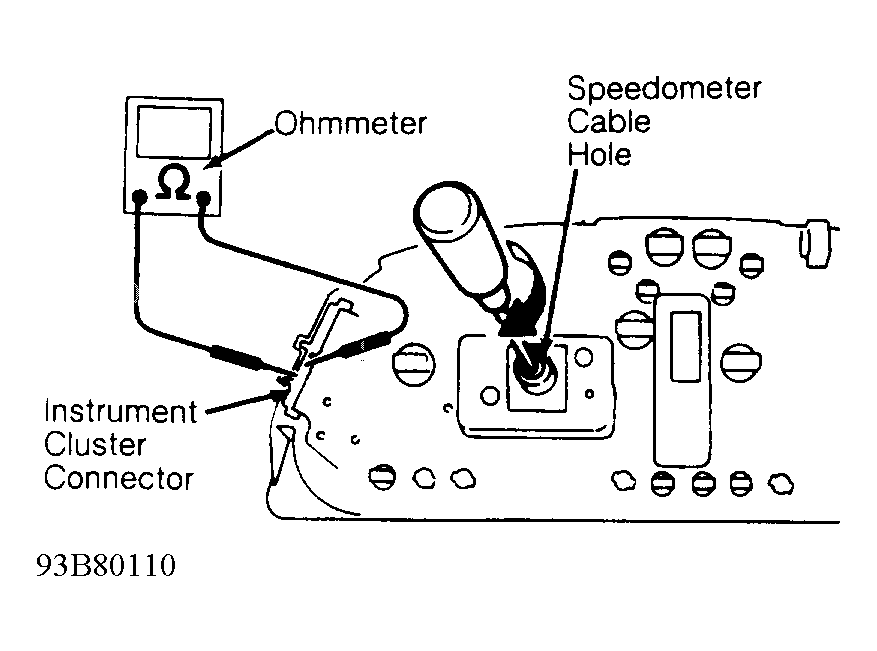

- Remove instrument cluster assembly. Measure resistance between connector terminals No. 11 and 8 of combination meter while rotating speedometer cable rotor with screwdriver. See Fig 1 . If resistance switches from greater than one megohm to less than 10 ohms (4 times per revolution), go to next step. If resistance does not switch as indicated, replace combination meter.

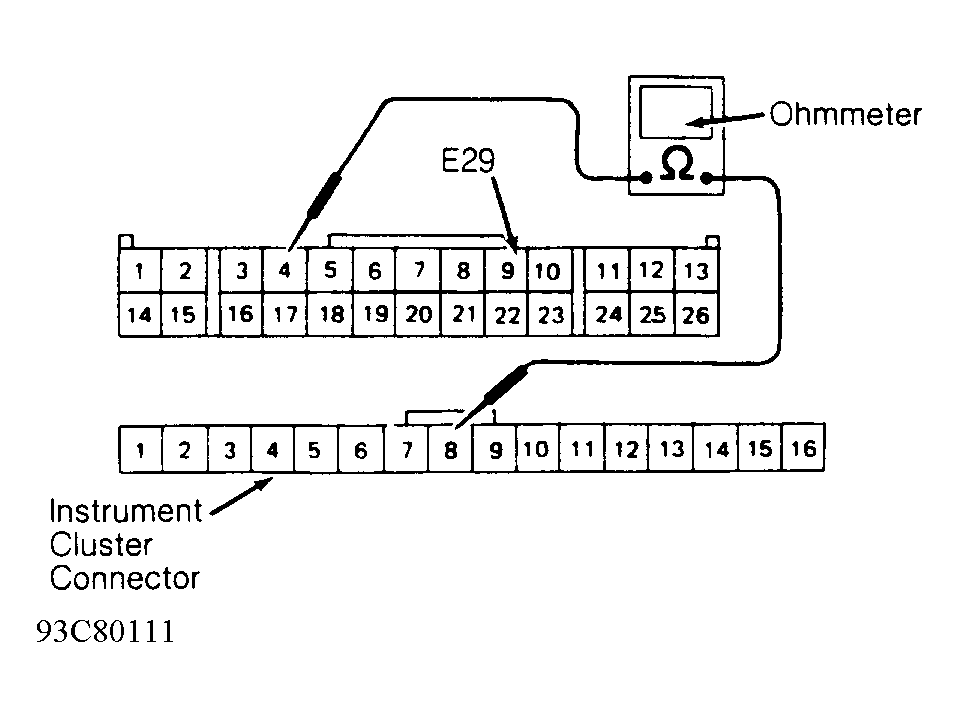

- Turn ignition off. Disconnect ECU connector. Measure resistance between ECU connector E29, terminal No. 4 and instrument cluster connector terminal No. 8. See Fig 2 . Less than 10 ohms should be present. Measure resistance between instrument cluster connector terminal No. 4 and ground. At least one megohm should be present. If resistances are as specified, repair or replace harness connector. If resistances are not to specification, go to next step.
- Measure resistance between instrument cluster connector terminal No. 8 and ground. If resistance is not at least one megohm, repair or replace harness connector. If resistance is not to specification, repair ECU harness connector or replace ECU.
