Engine Controls - Tests W/O Codes: Symptoms

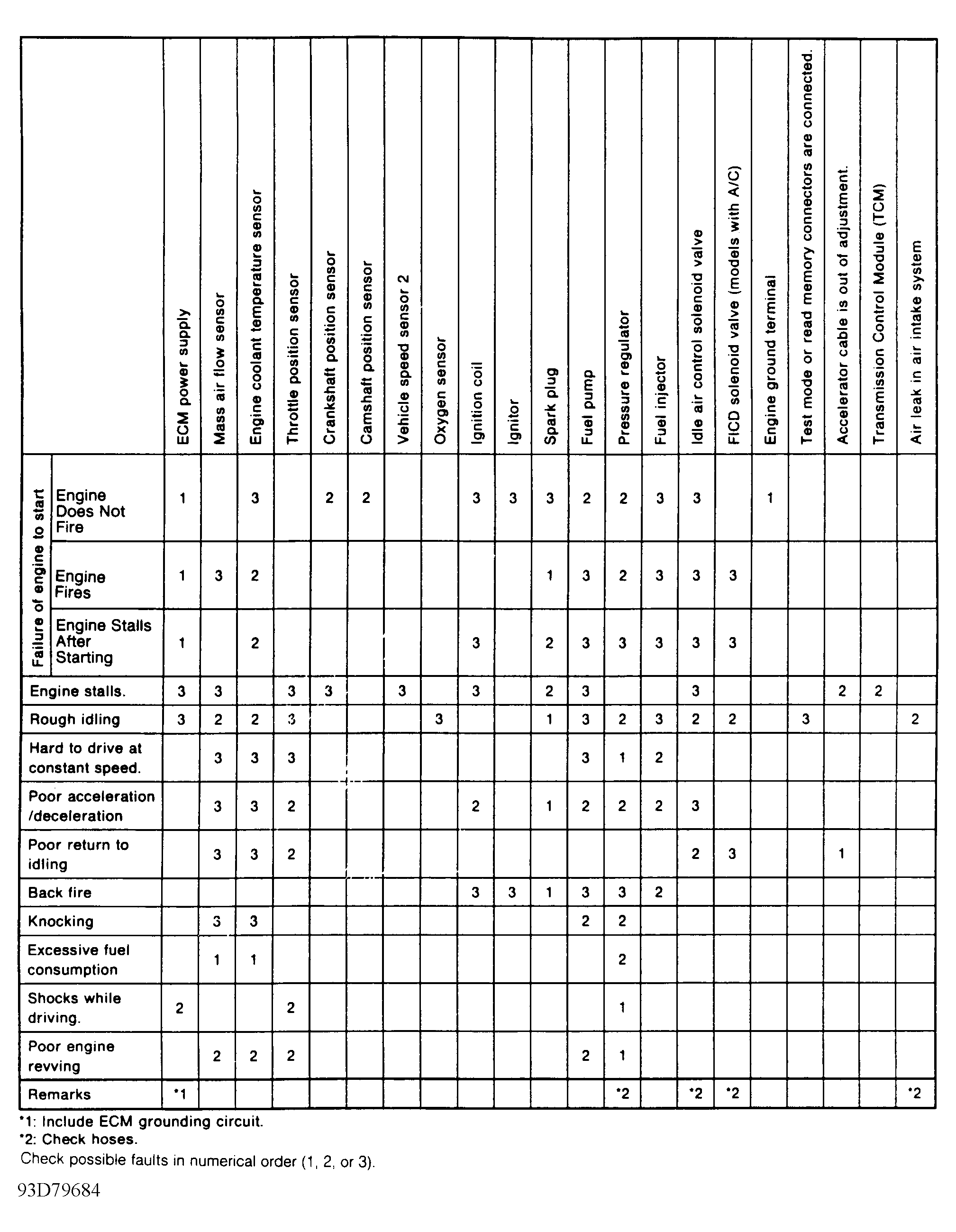

Fig 1: Symptom Diagnosis - Impreza

G93D79684

Courtesy of SUBARU OF AMERICA, INC.

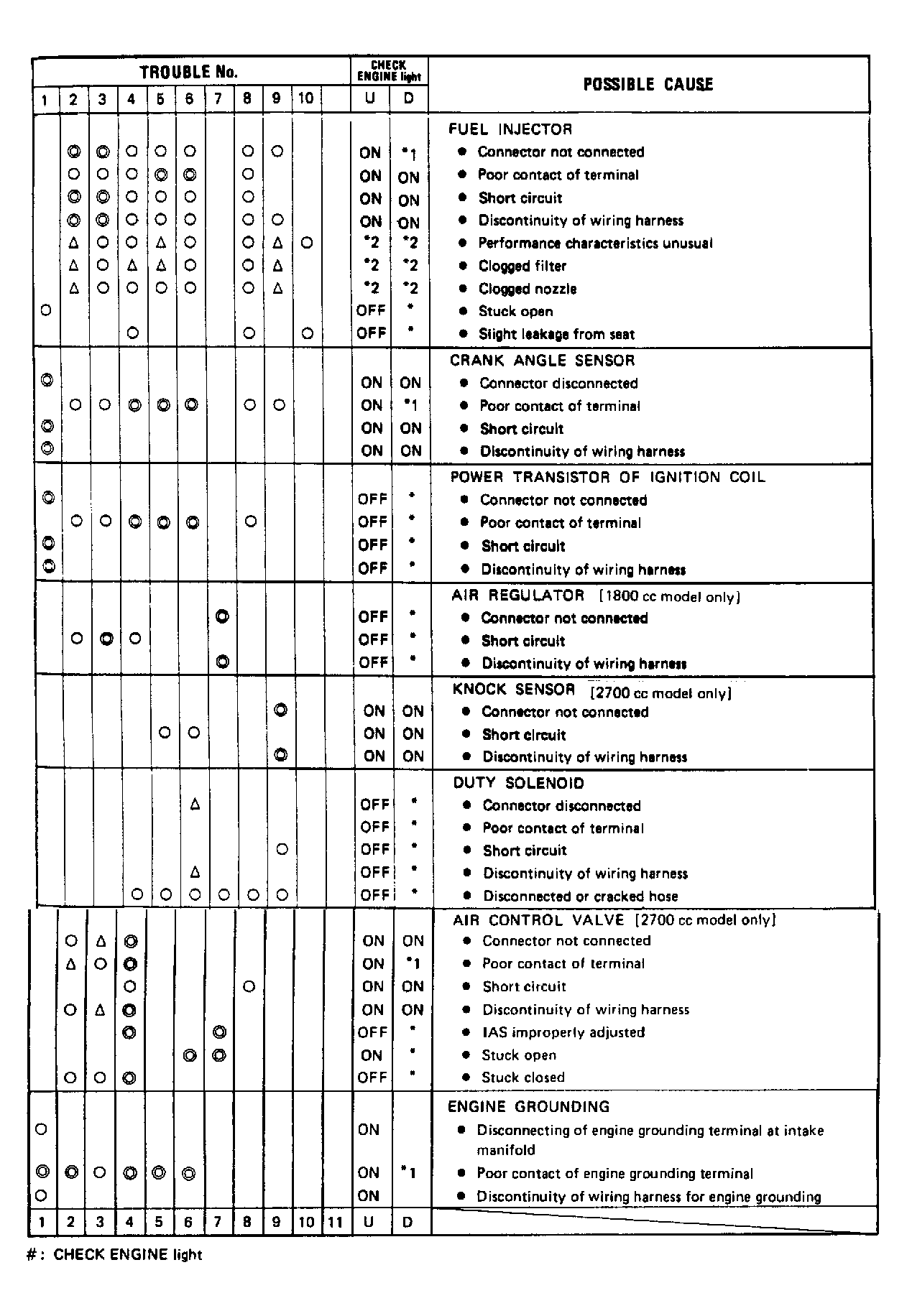

Fig 2: Symptom Diagnosis - Justy (1 of 3)

G118401

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Symptom Diagnosis - Justy (2 of 3)

G121830

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Symptom Diagnosis - Justy (3 of 3)

G121832

Courtesy of SUBARU OF AMERICA, INC.

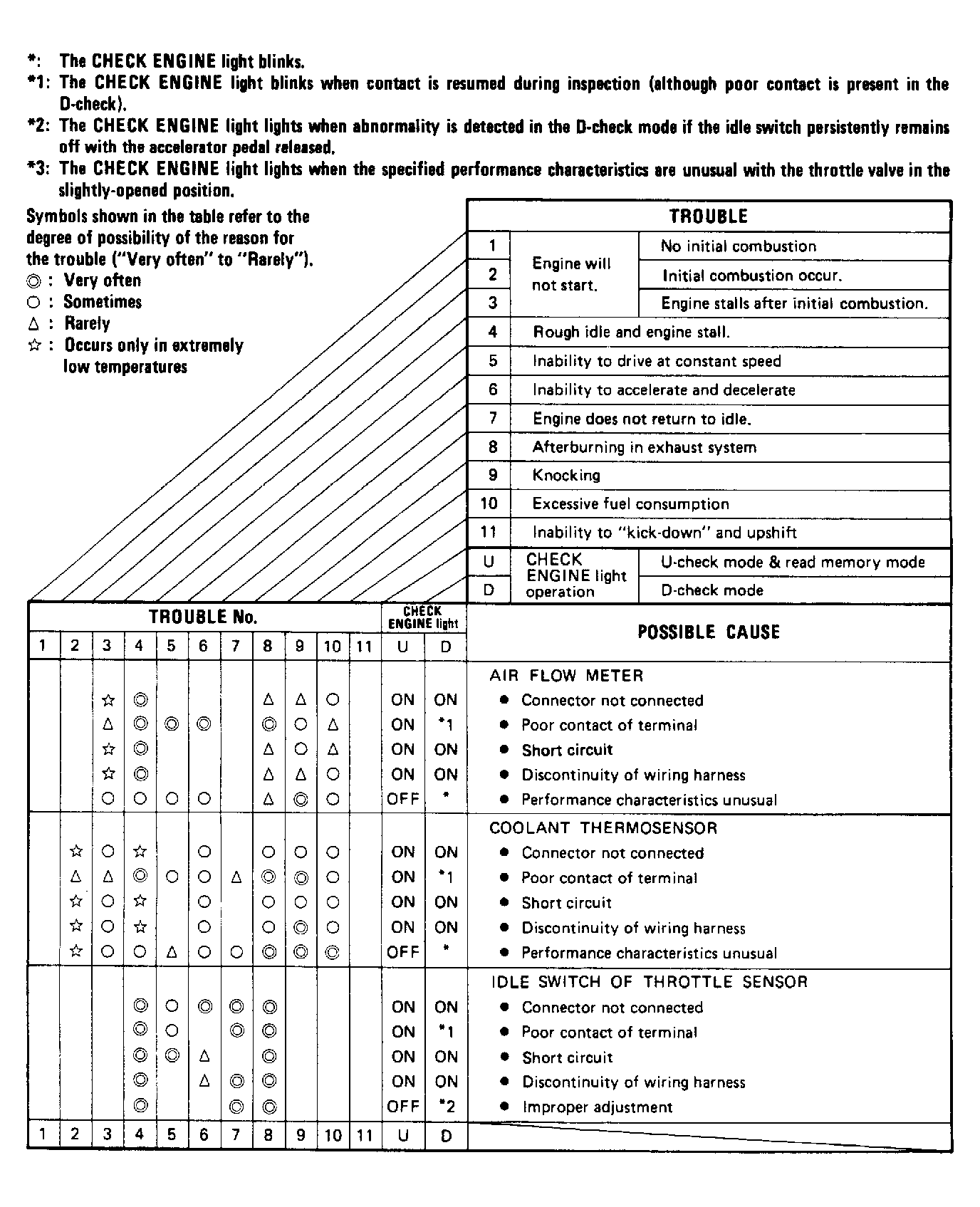

Fig 5: Symptom Diagnosis - Loyale (1 of 2)

G118402

Courtesy of SUBARU OF AMERICA, INC.

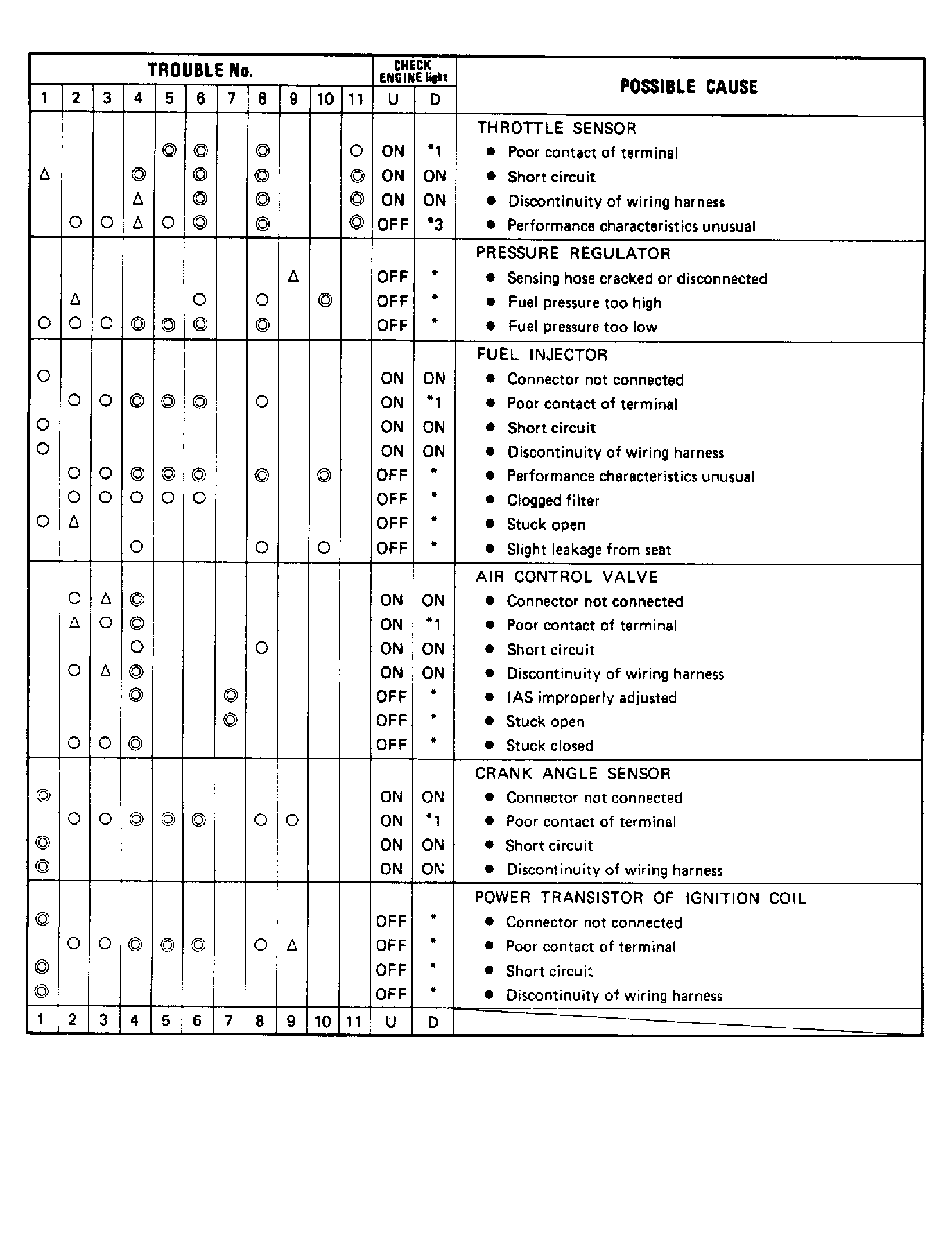

Fig 6: Symptom Diagnosis - Loyale (2 of 2)

G121831

Courtesy of SUBARU OF AMERICA, INC.

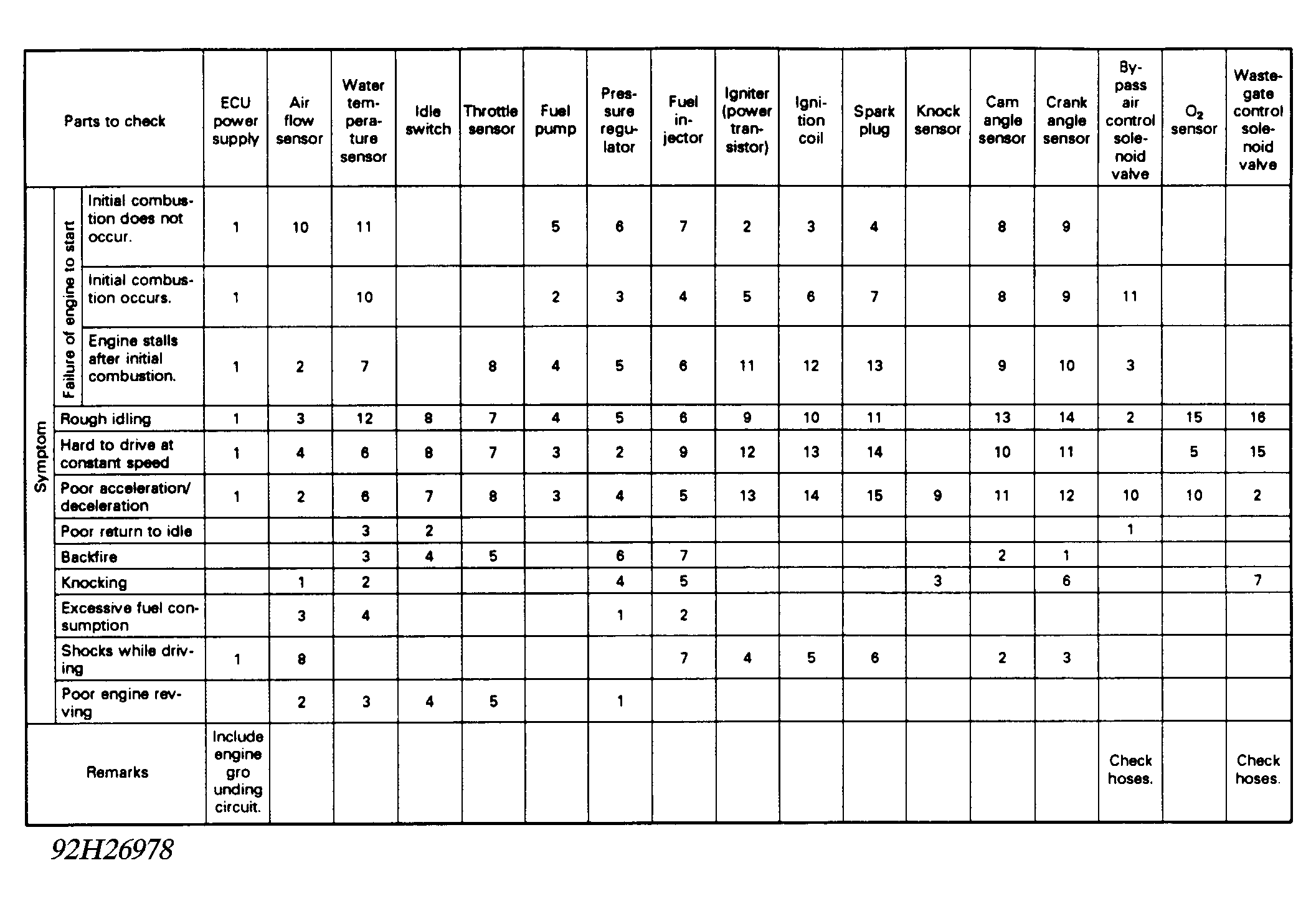

Fig 7: Symptom Diagnosis - Legacy

G92H26978

Courtesy of SUBARU OF AMERICA, INC.

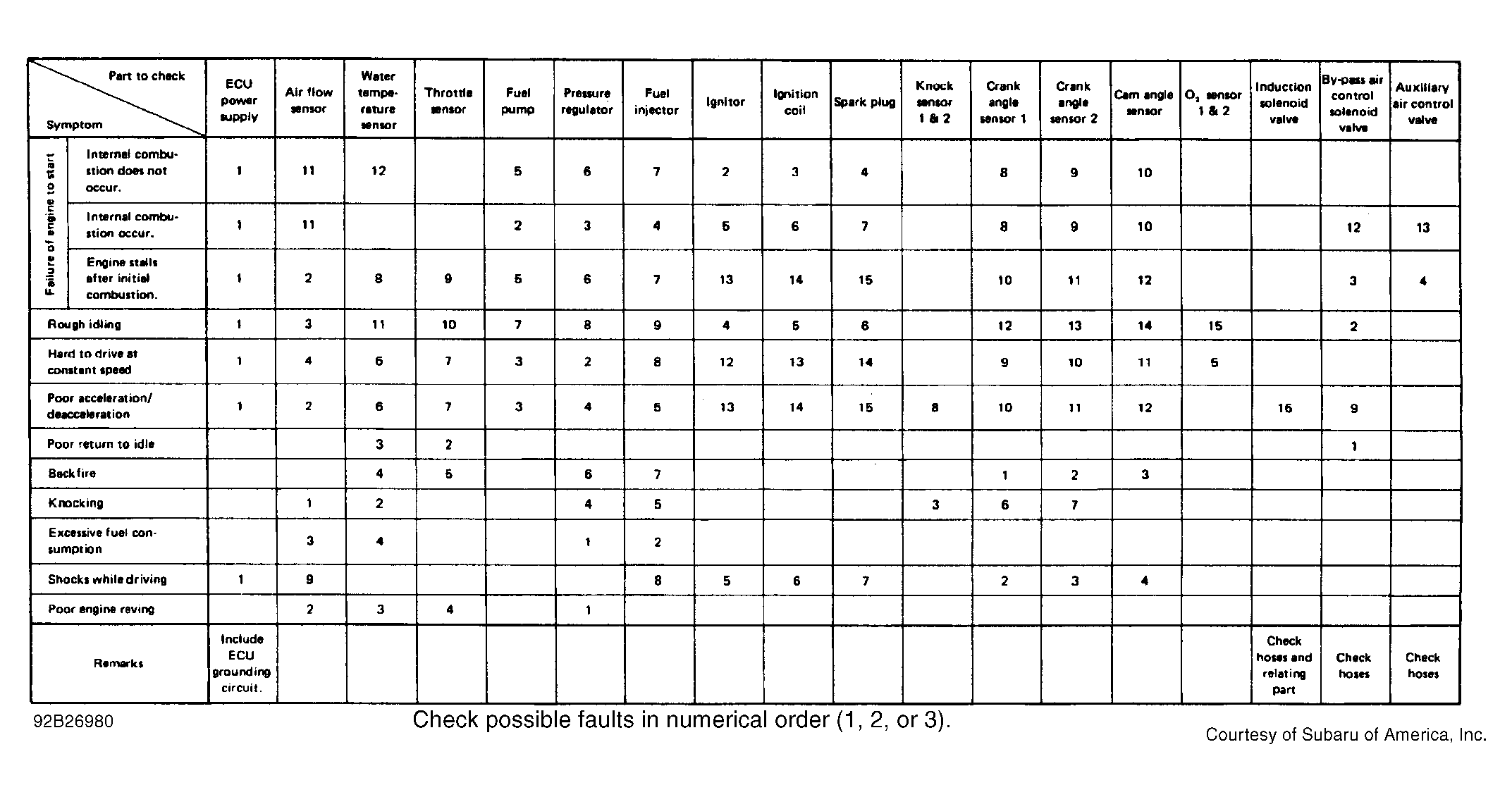

Fig 8: Symptom Diagnosis - SVX

G92B26980

Courtesy of SUBARU OF AMERICA, INC.
