Throttle Position Sensor/Switch

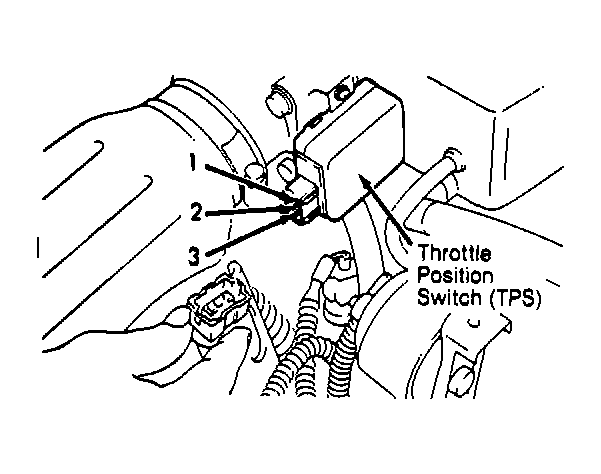

- With ignition off, unplug Throttle Position Switch (TPS) connector, located at throttle body. Measure and record resistance between terminals No. 2 and 3 with throttle fully closed, then with throttle fully open. See Fig 1 .
- If necessary, loosen attaching screws and rotate TPS until correct resistance is obtained. See 3-CYLINDER THROTTLE POSITION SWITCH RESISTANCE table. Replace TPS if resistance cannot be adjusted to specification.
3-CYLINDER THROTTLE POSITION SWITCH RESISTANCE
| Application | Ohms | |
|---|---|---|
| Terminals No. 2 & 3 | ||
| Throttle Fully Closed | Less Than One | |
| Throttle Fully Open | Infinite | |
NOTE:
All testing procedures are performed with engine at normal operating temperature.
