Power Window Switch

Remove control switch from door panel. Using ohmmeter, check continuity of switch. For switch terminal identification, see Fig 1 or Fig 3 . Replace appropriate switch as necessary if switch continuity is not as specified. See Fig 2 or Fig 4 .

Fig 1: Power Window Main Switch Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.

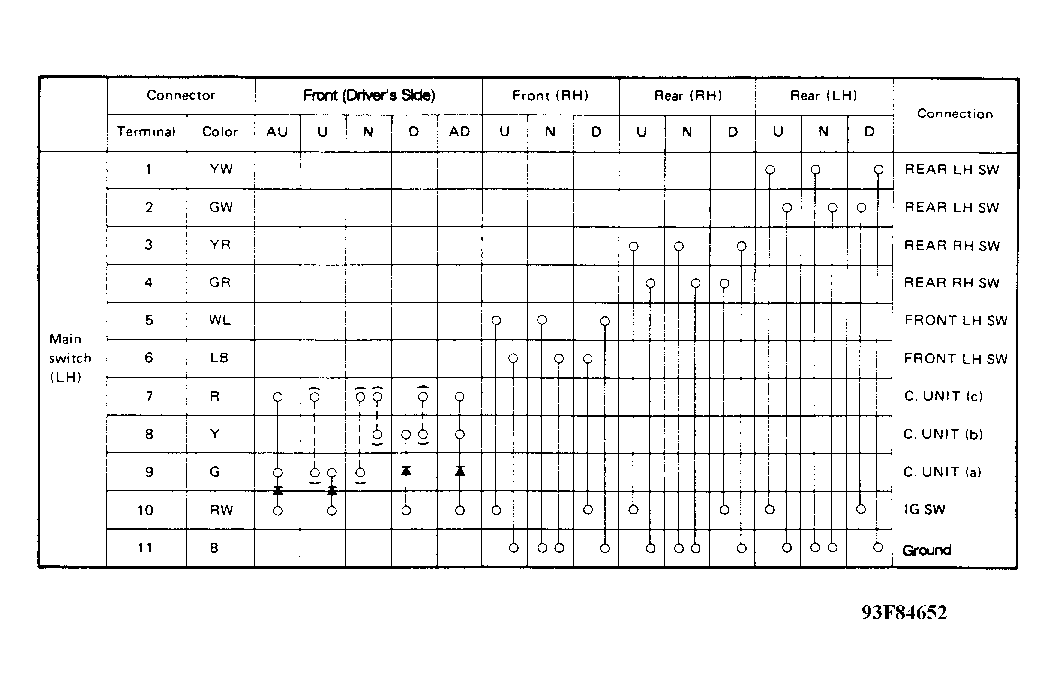

Fig 2: Power Window Main Switch Continuity Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Power Window Sub-Switch Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.

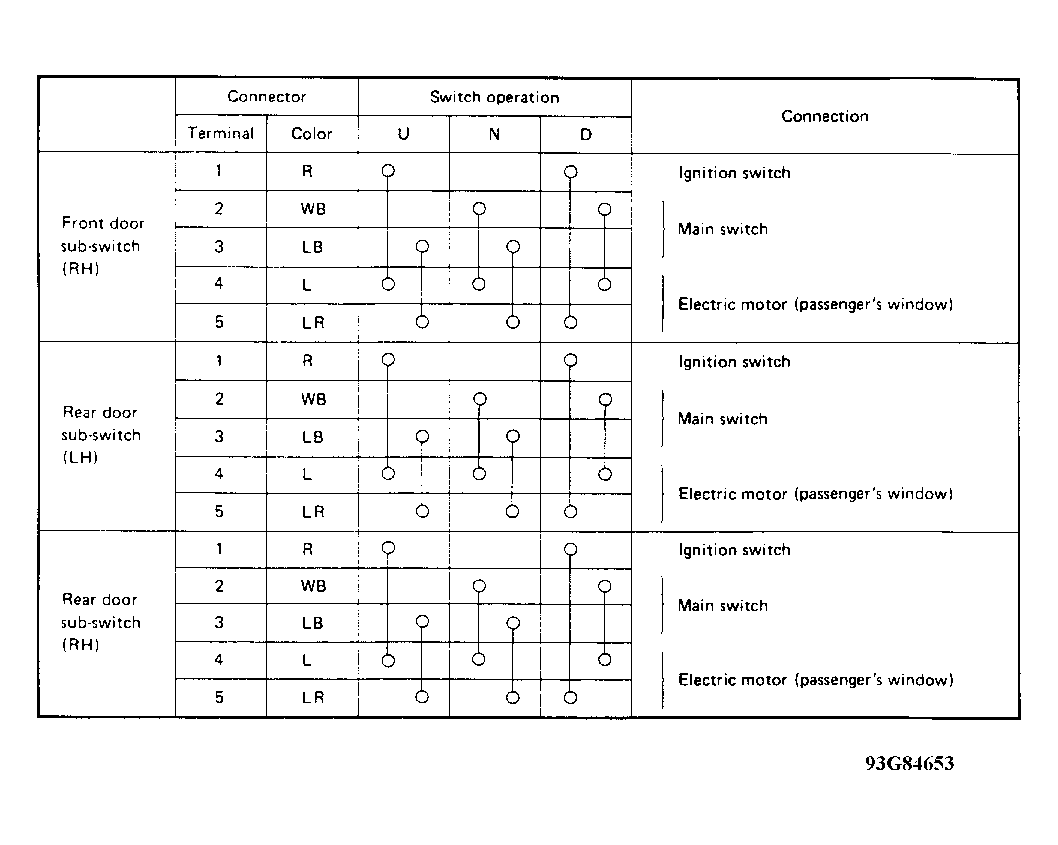

Fig 4: Power Window Sub-Switch Continuity Chart

Courtesy of SUBARU OF AMERICA, INC.
