Code 11 - Crank Angle Sensor, No Reference Signal

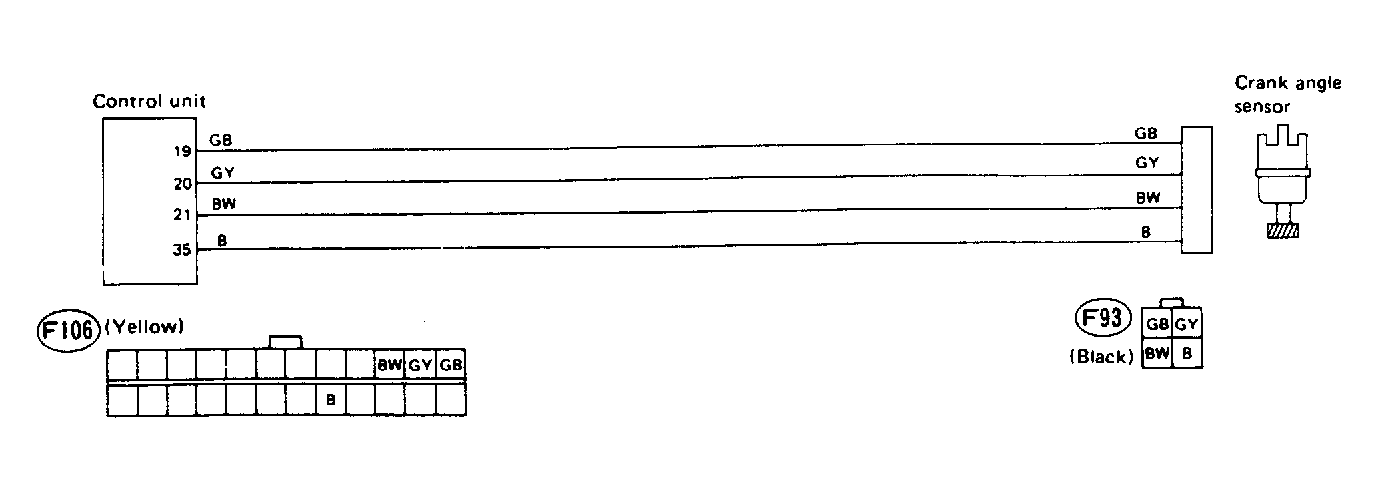

Fig 1: Code 11 - Wiring Schematic

Courtesy of SUBARU OF AMERICA, INC.

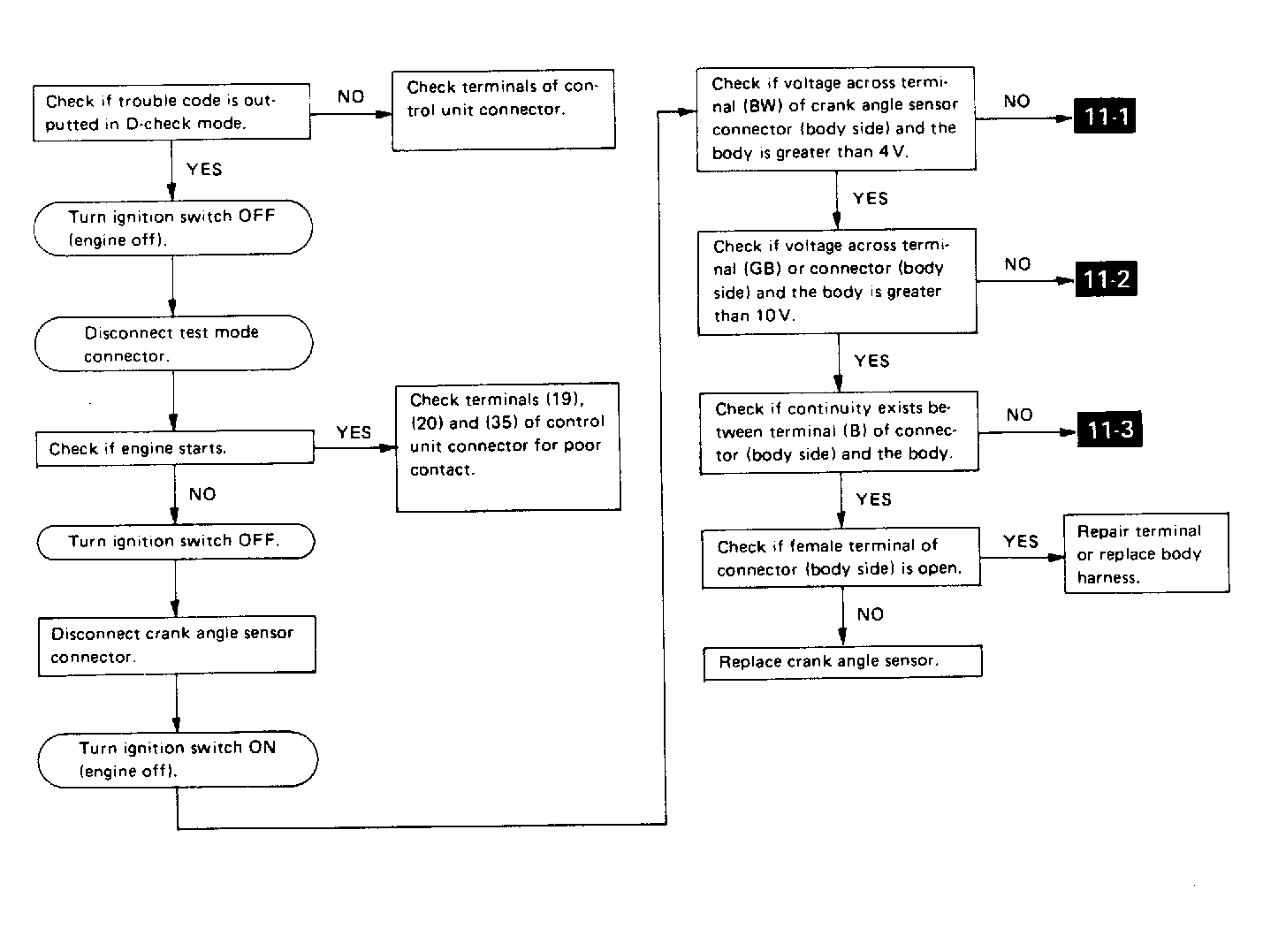

Fig 2: Code 11 - Diagnostic Flowchart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

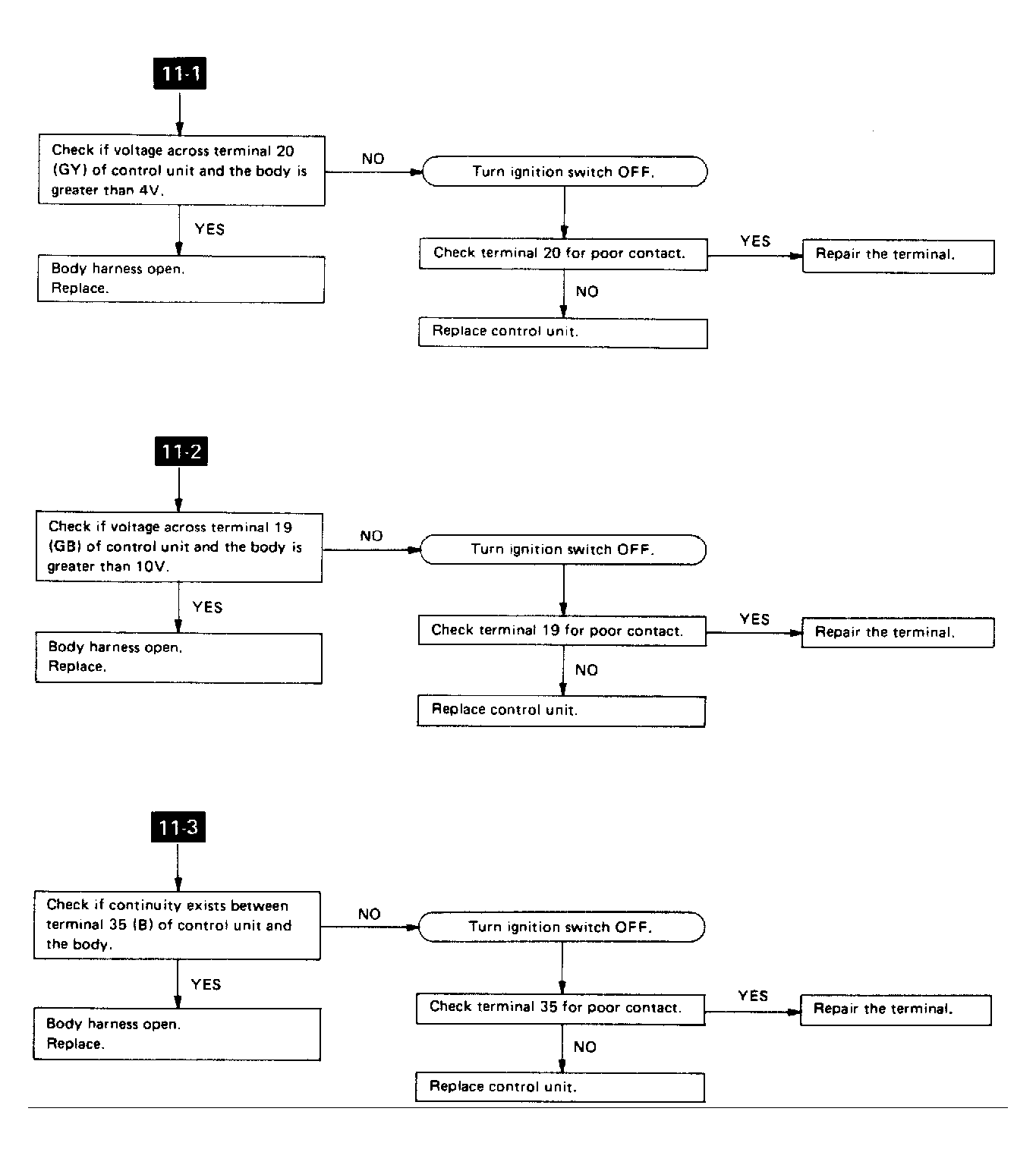

Fig 3: Code 11 - Diagnostic Flowchart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
