Code 12 - Starter Switch

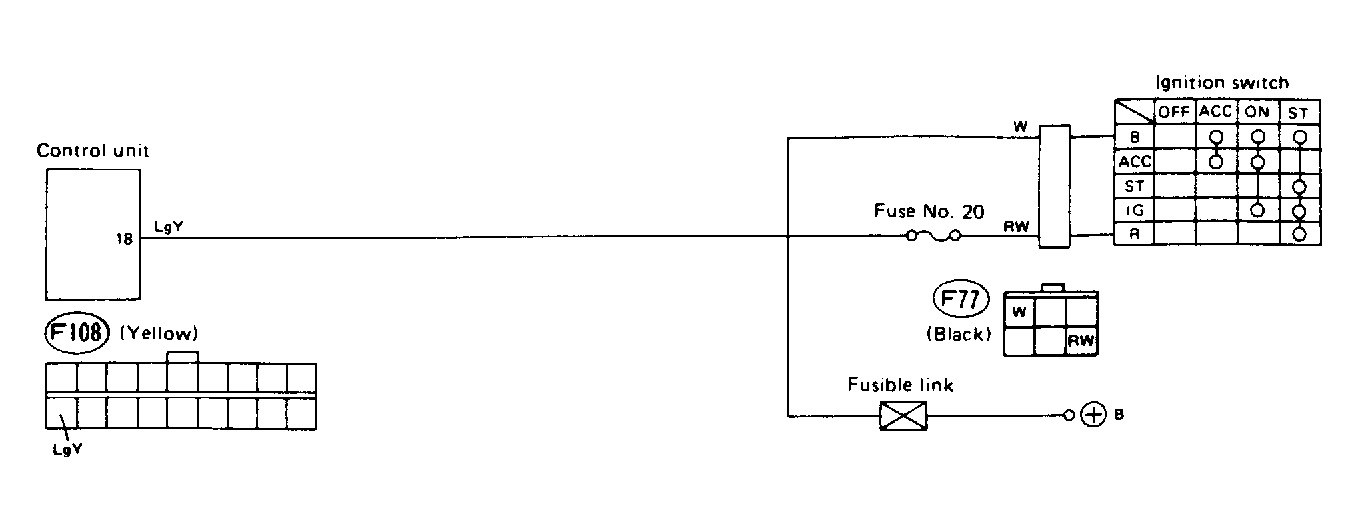

Fig 1: Code 12 - Wiring Schematic
G91B18391Courtesy of SUBARU OF AMERICA, INC.

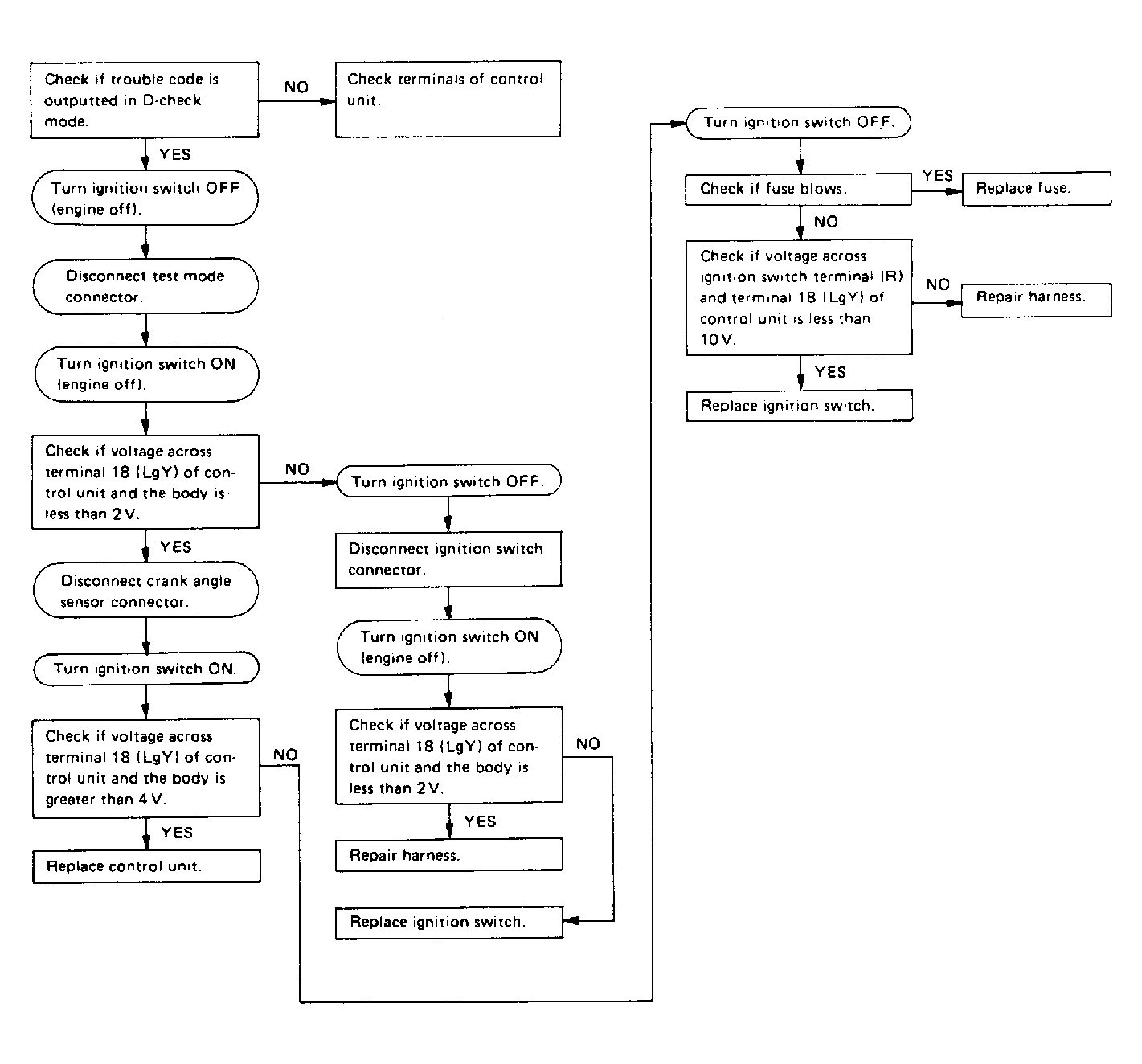

Fig 2: Code 12 - Diagnostic Flowchart
G90H21862Courtesy of SUBARU OF AMERICA, INC.
