Code 23 - Airflow Meter Circuit

Fig 1: Code 23 - Wiring Schematic
G91F18395Courtesy of SUBARU OF AMERICA, INC.

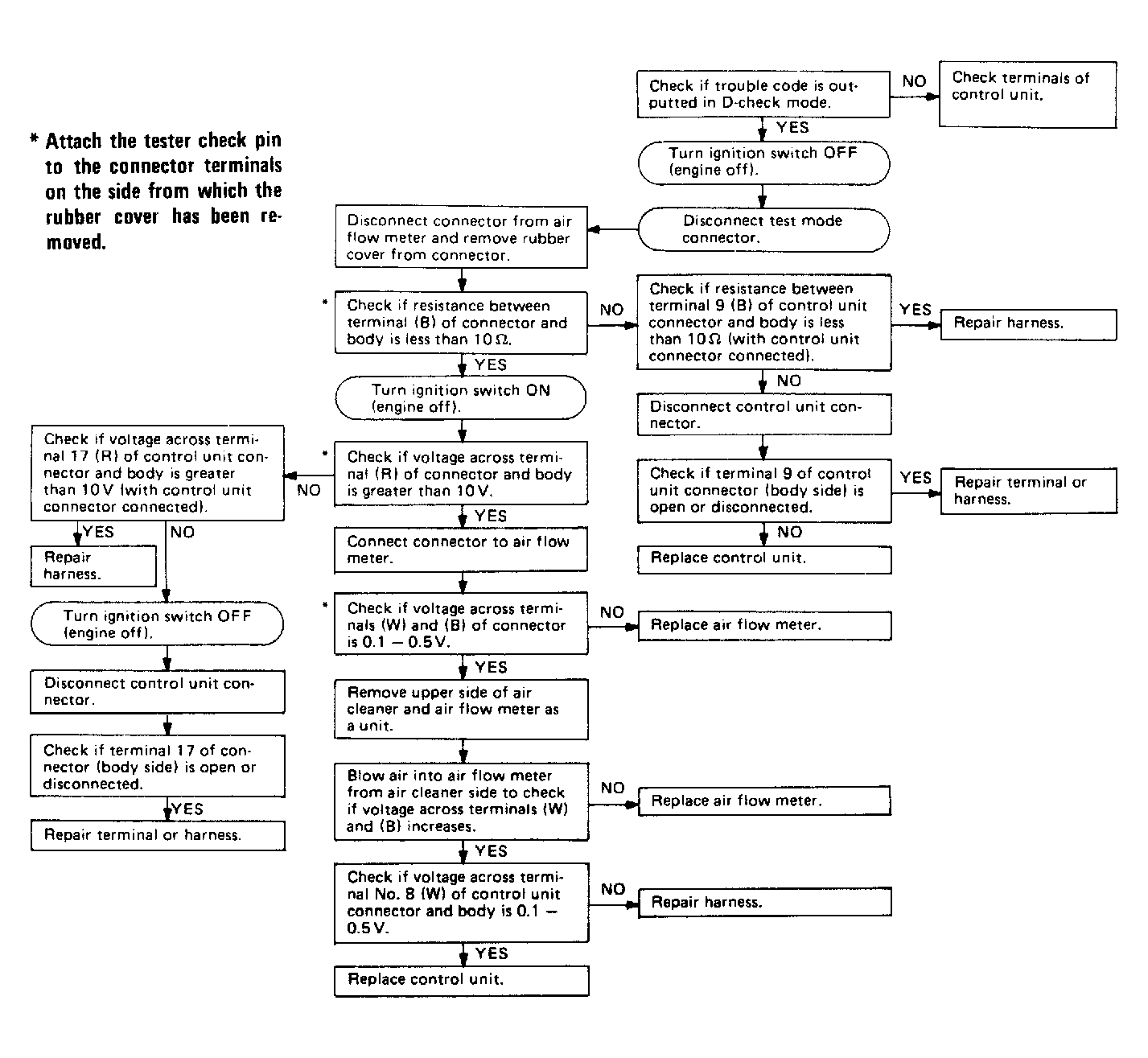

Fig 2: Code 23 - Diagnostic Flowchart
G90C21867Courtesy of SUBARU OF AMERICA, INC.
