Code 24 - Air Control Valve

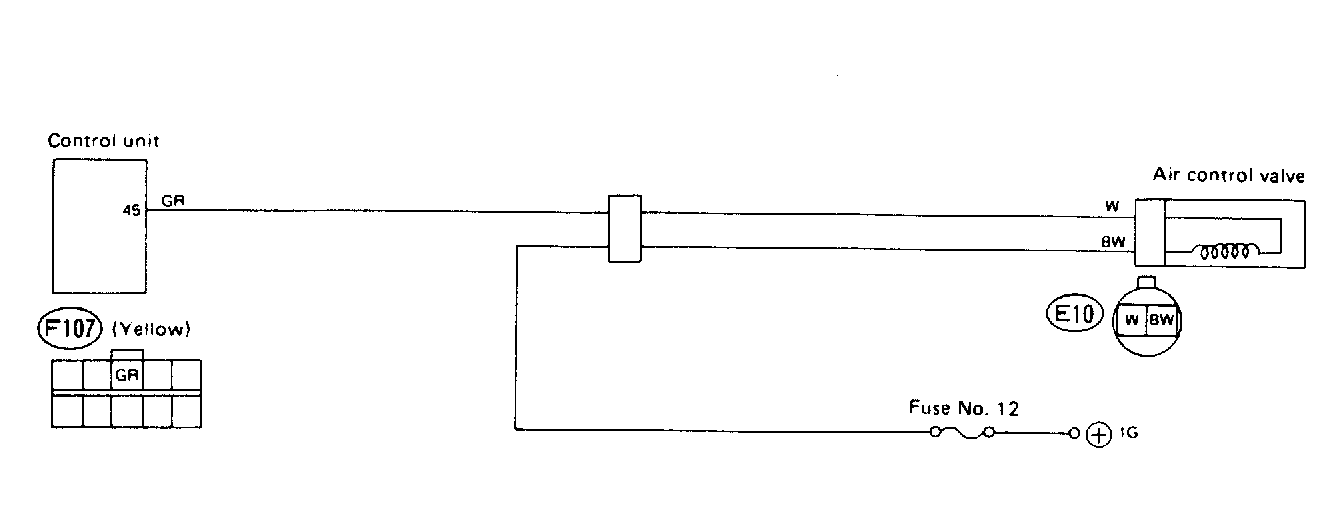

Fig 1: Code 24 - Wiring Schematic
G91G18396Courtesy of SUBARU OF AMERICA, INC.

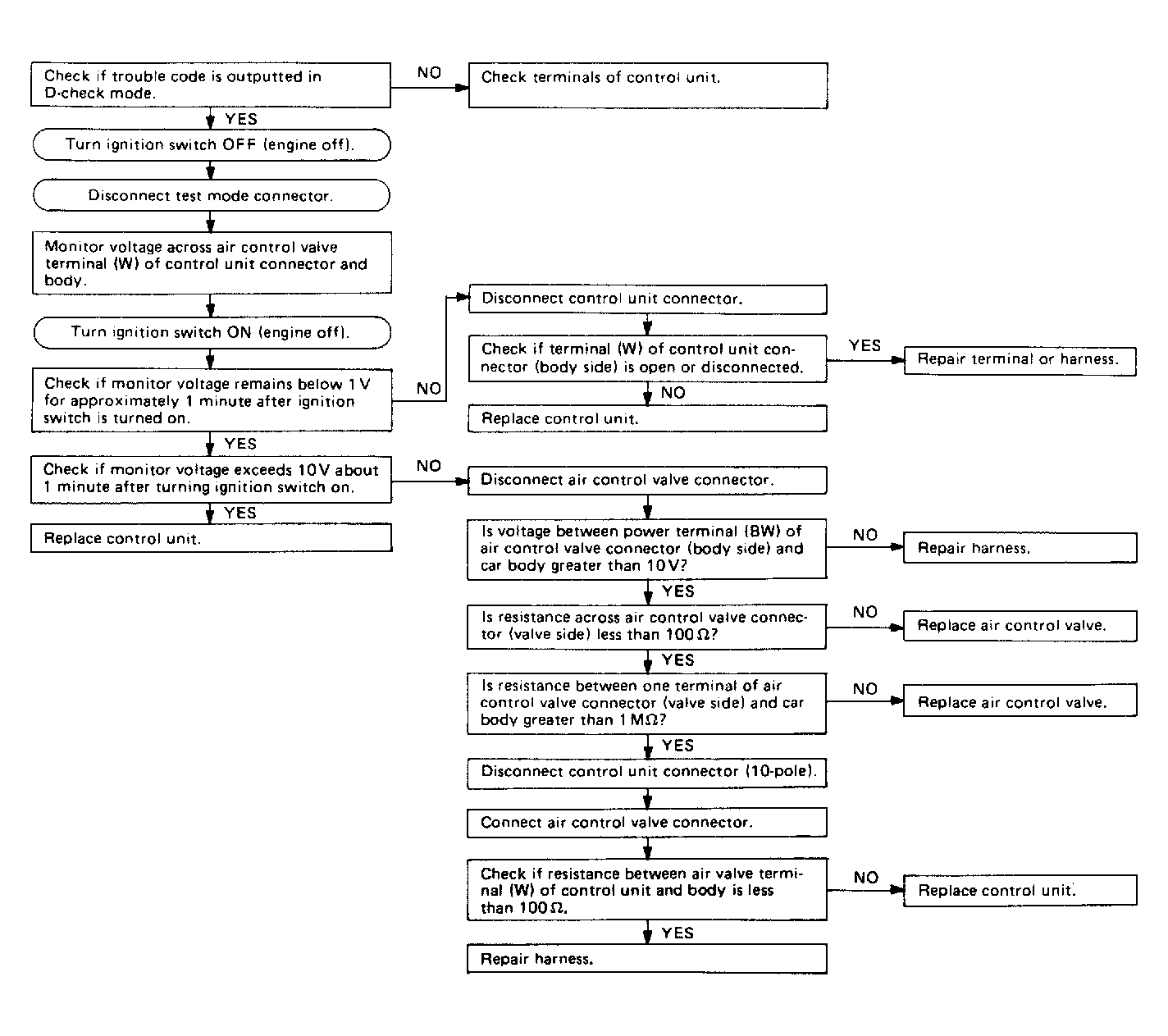

Fig 2: Code 24 - Diagnostic Flowchart
G90D21868
