Code 31 - Throttle Position Sensor

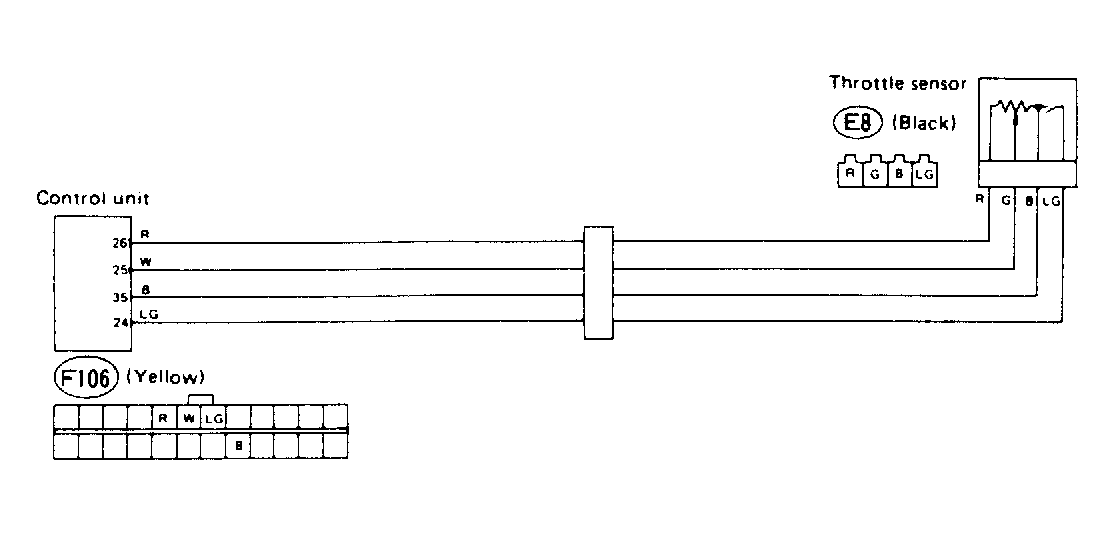

Fig 1: Code 31 - Wiring Schematic
G91H18397Courtesy of SUBARU OF AMERICA, INC.

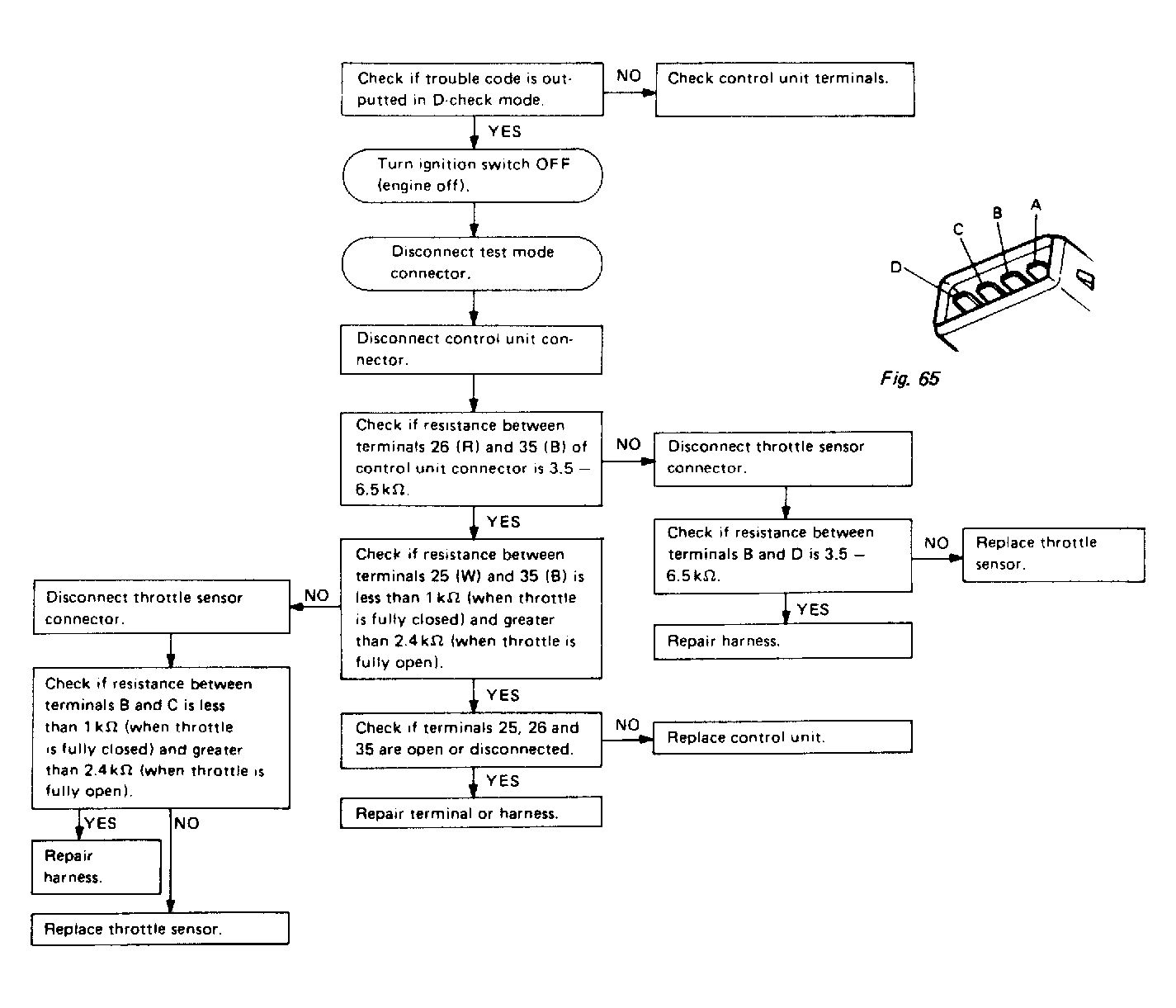

Fig 2: Code 31 - Diagnostic Flowchart
G90E21869Courtesy of SUBARU OF AMERICA, INC.
