Code 32 - Oxygen (O2) Sensor

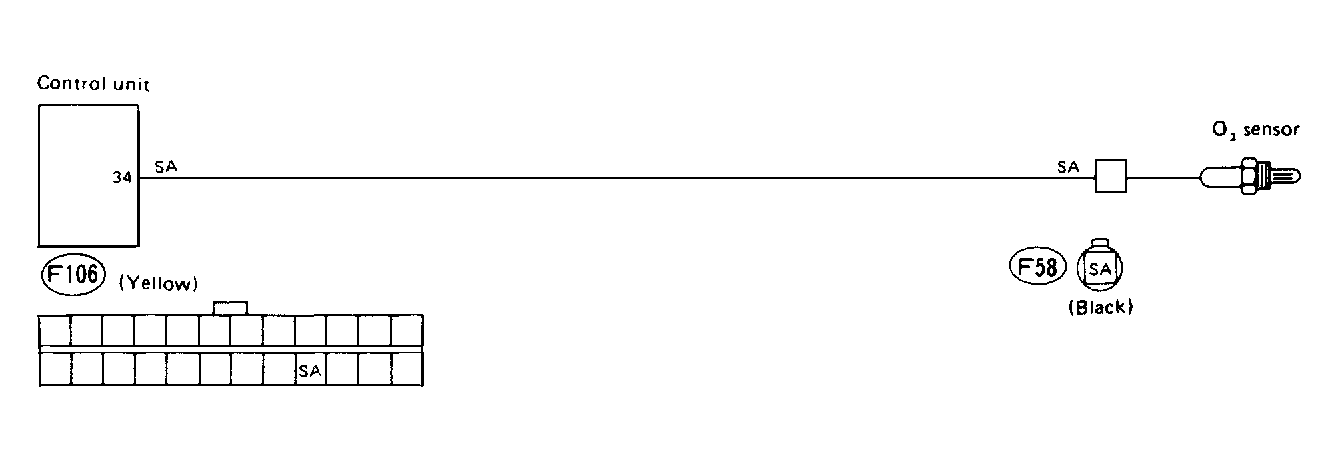

Fig 1: Code 32 - Wiring Schematic
Courtesy of SUBARU OF AMERICA, INC.

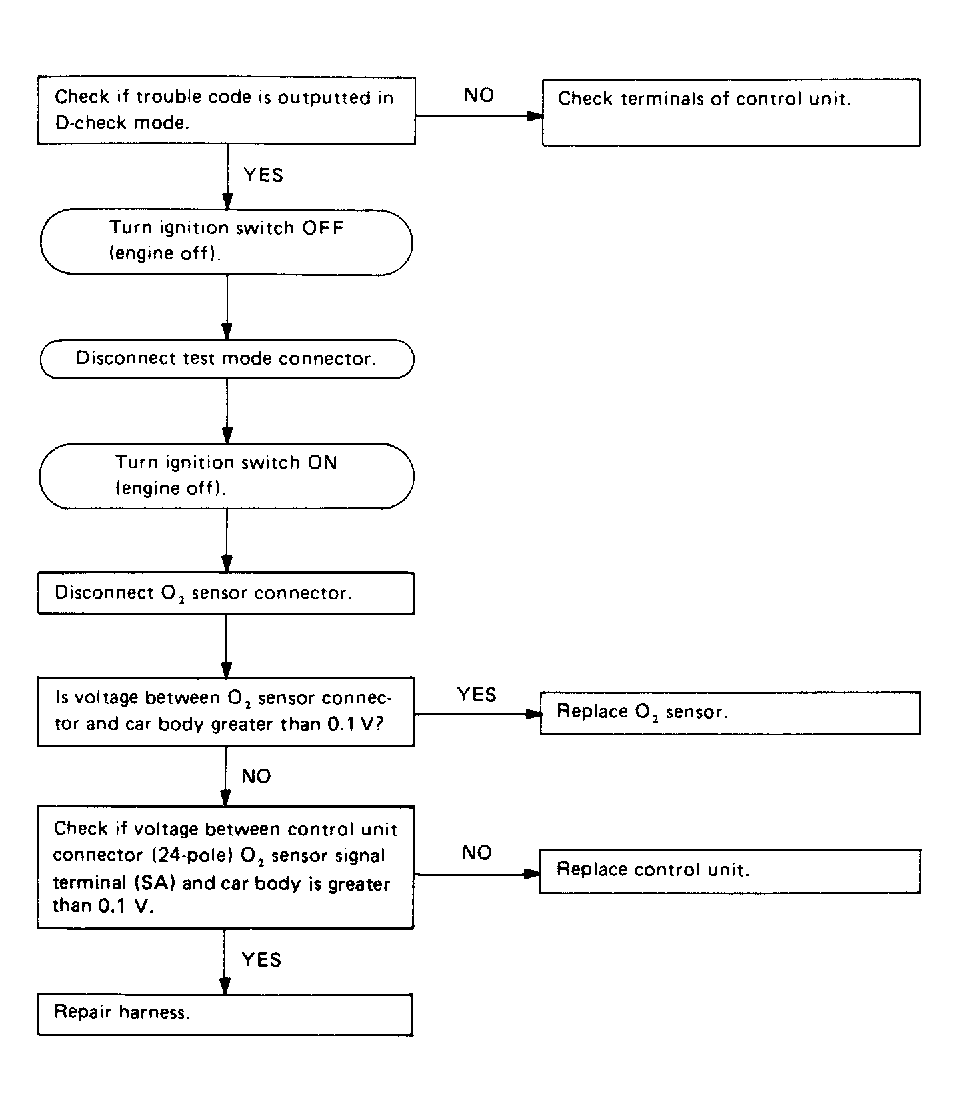

Fig 2: Code 32 - Diagnostic Flowchart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
