Code 33 - Vehicle Speed Sensor

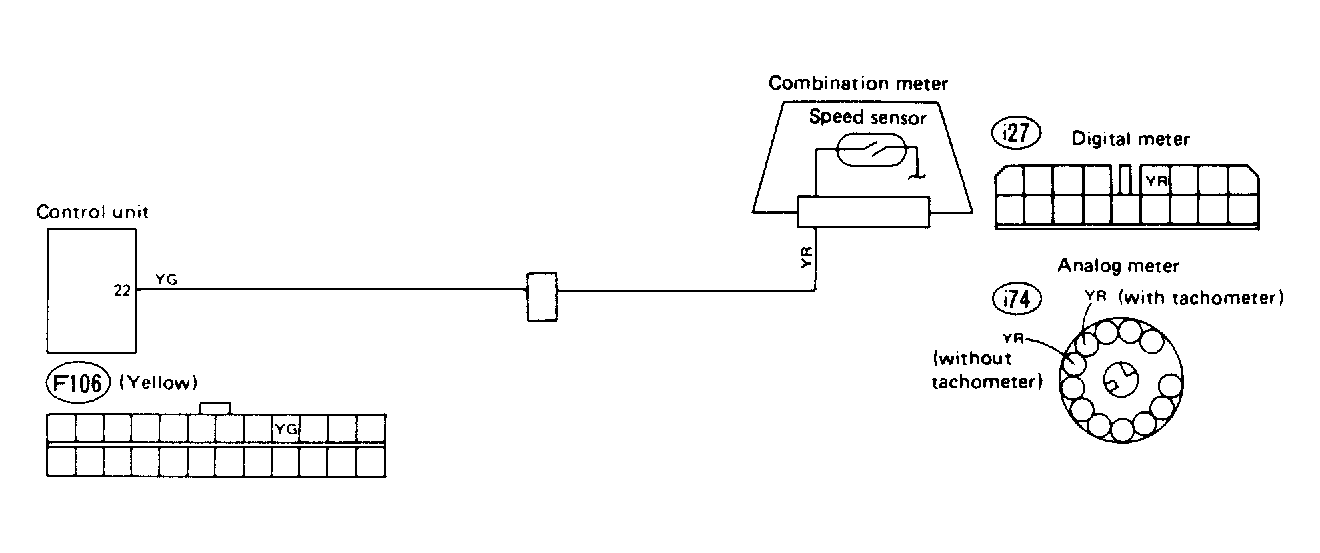

Fig 1: Code 33 - Wiring Schematic
G91J18399Courtesy of SUBARU OF AMERICA, INC.

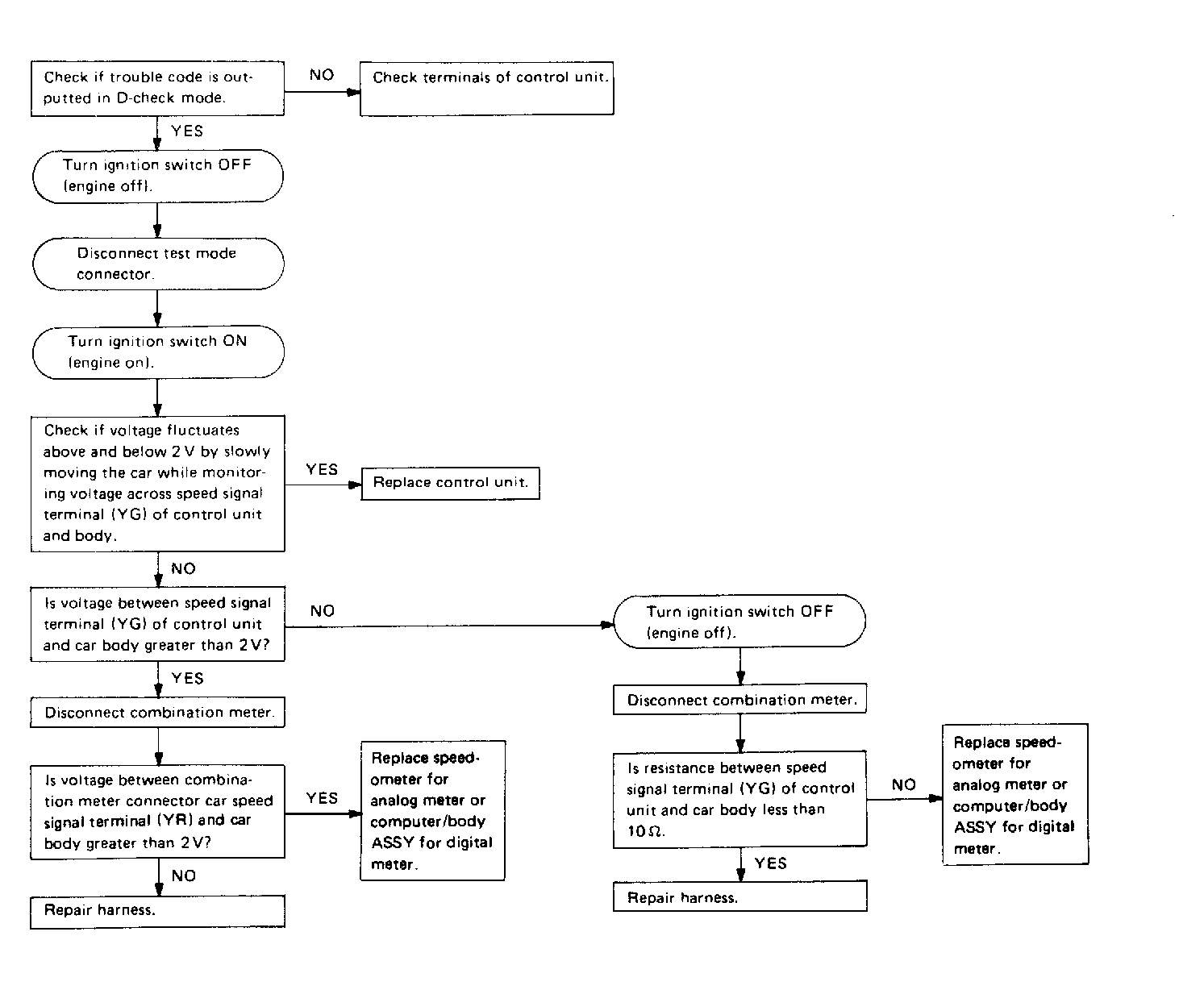

Fig 2: Code 33 - Diagnostic Flowchart
G90I21871Courtesy of SUBARU OF AMERICA, INC.
