Code 42 - Idle Switch

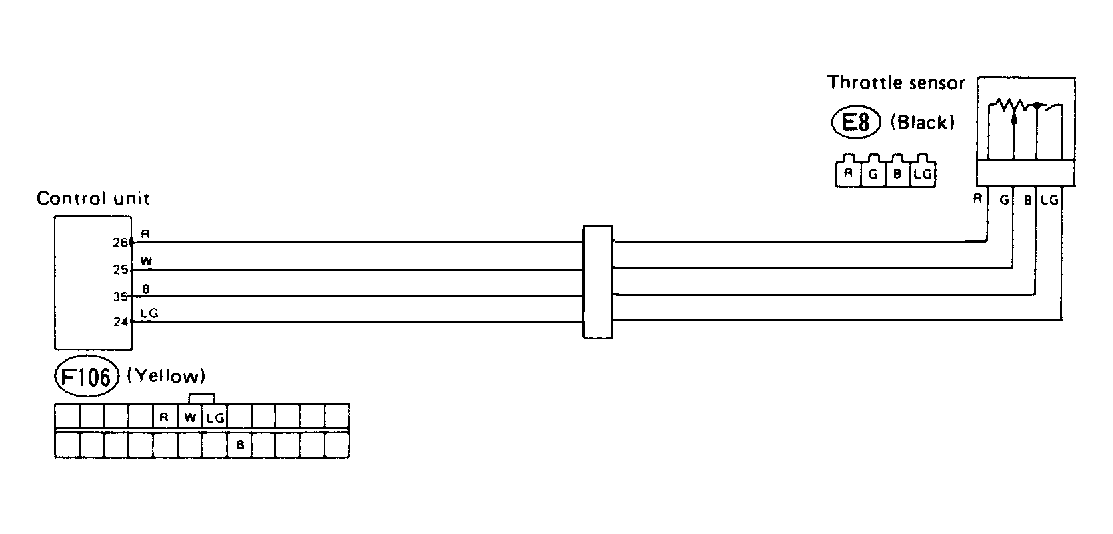

Fig 1: Code 42 - Wiring Schematic
Courtesy of SUBARU OF AMERICA, INC.

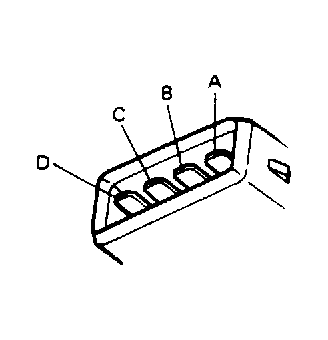

Fig 2: Code 42 - Control Unit Connector
Courtesy of SUBARU OF AMERICA, INC.

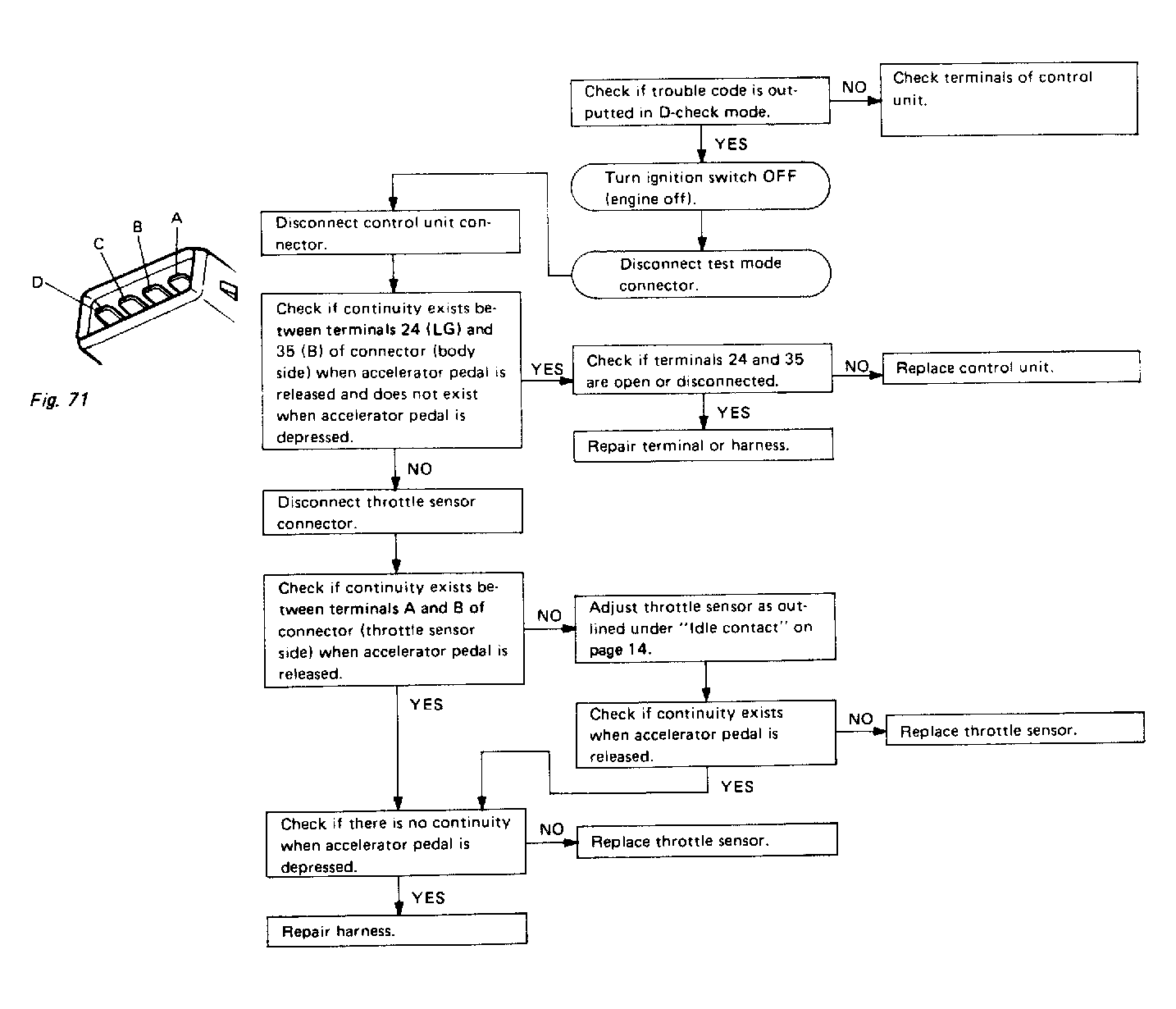

Fig 3: Code 42 - Diagnostic Flowchart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
