Code 45 - KICKDOWN Control Relay

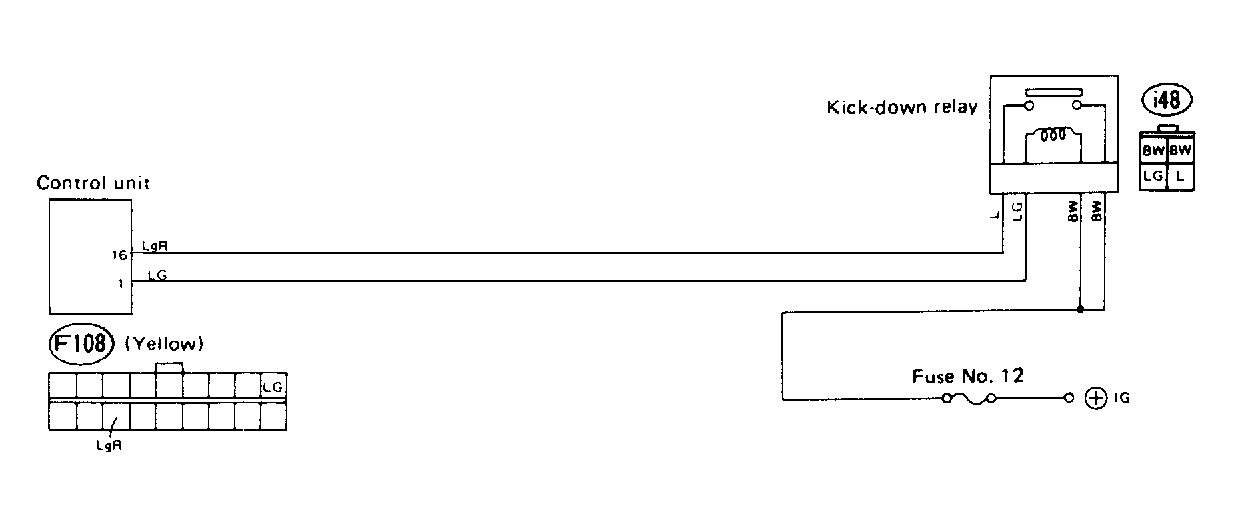

Fig 1: Code 45 - Wiring Schematic
Courtesy of SUBARU OF AMERICA, INC.

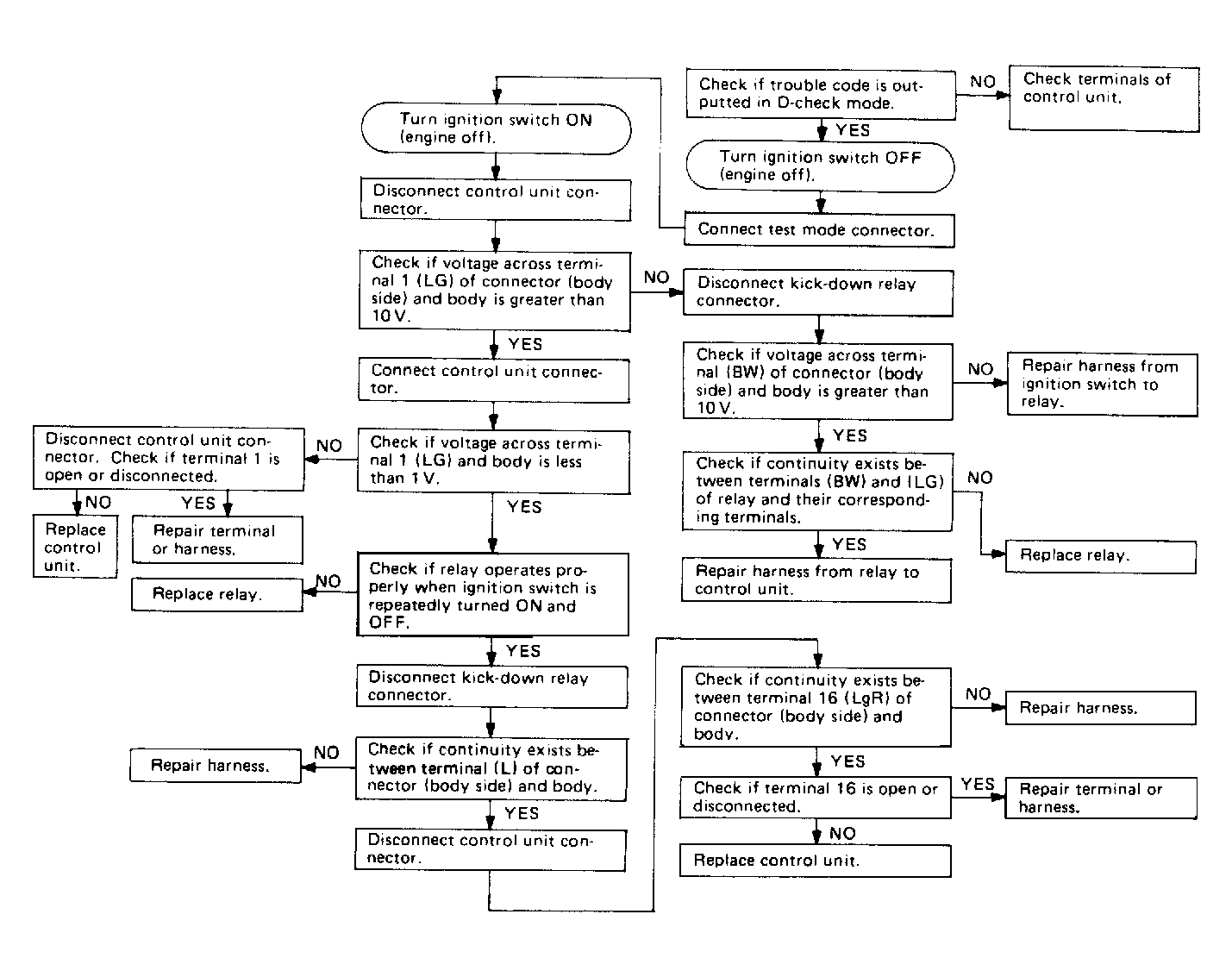

Fig 2: Code 45 - Diagnostic Flowchart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
