Code 55 - EGR Temperature Sensor (Ca)

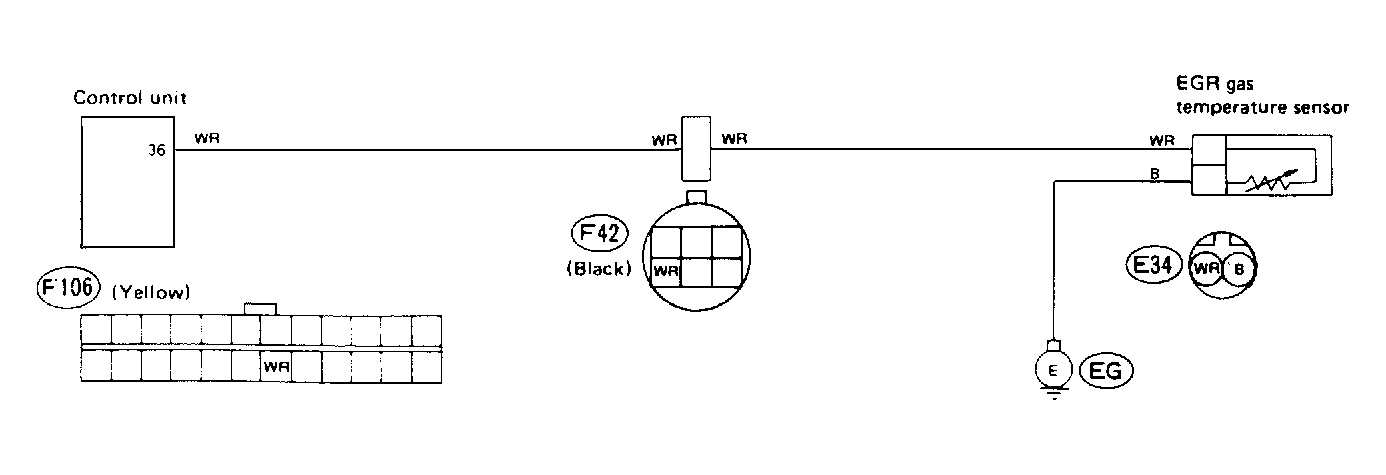

Fig 1: Code 55 - Wiring Schematic
Courtesy of SUBARU OF AMERICA, INC.

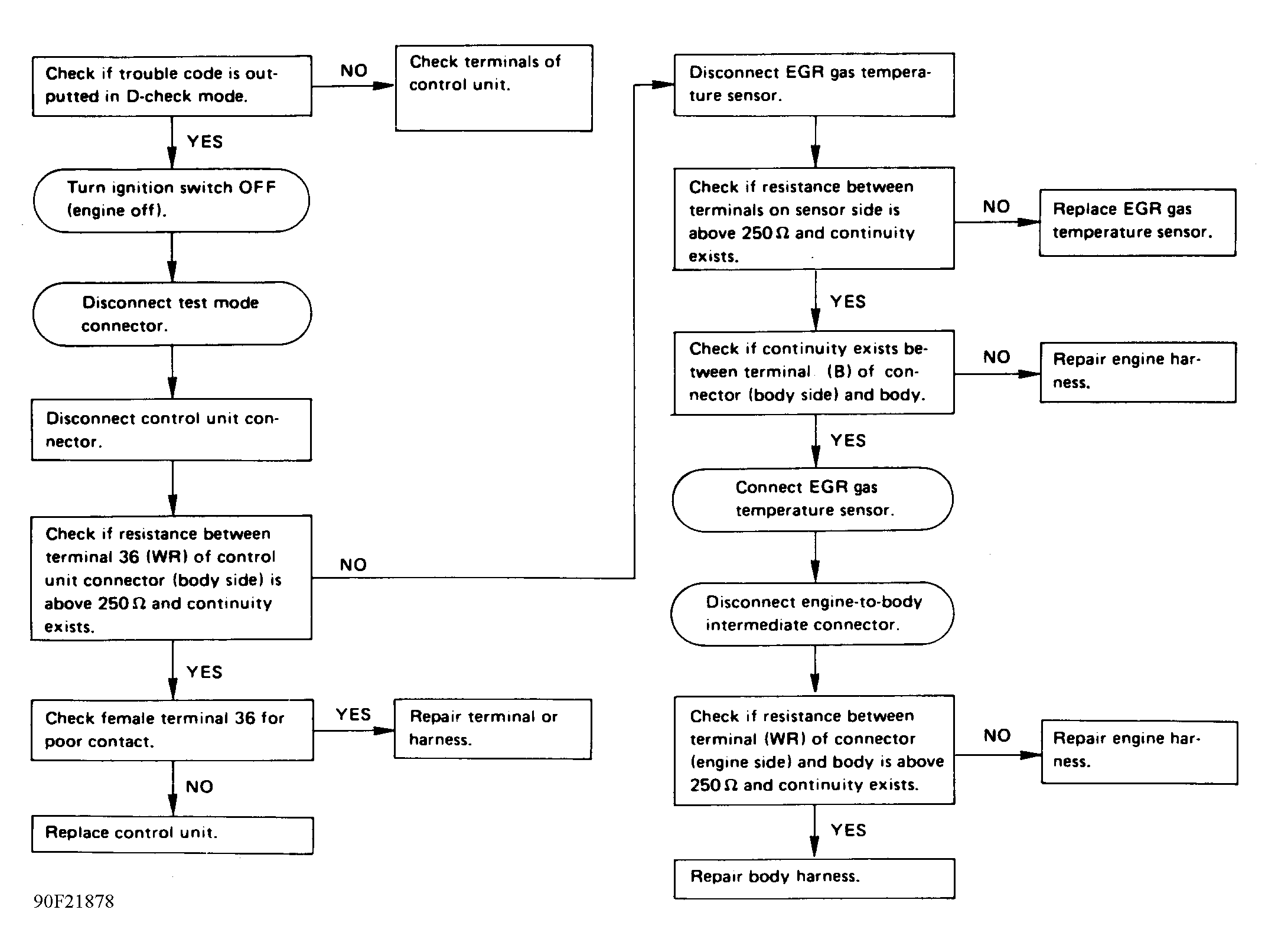

Fig 2: Code 55 - Diagnostic Flowchart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
