Code 34 - EGR Valve Solenoid

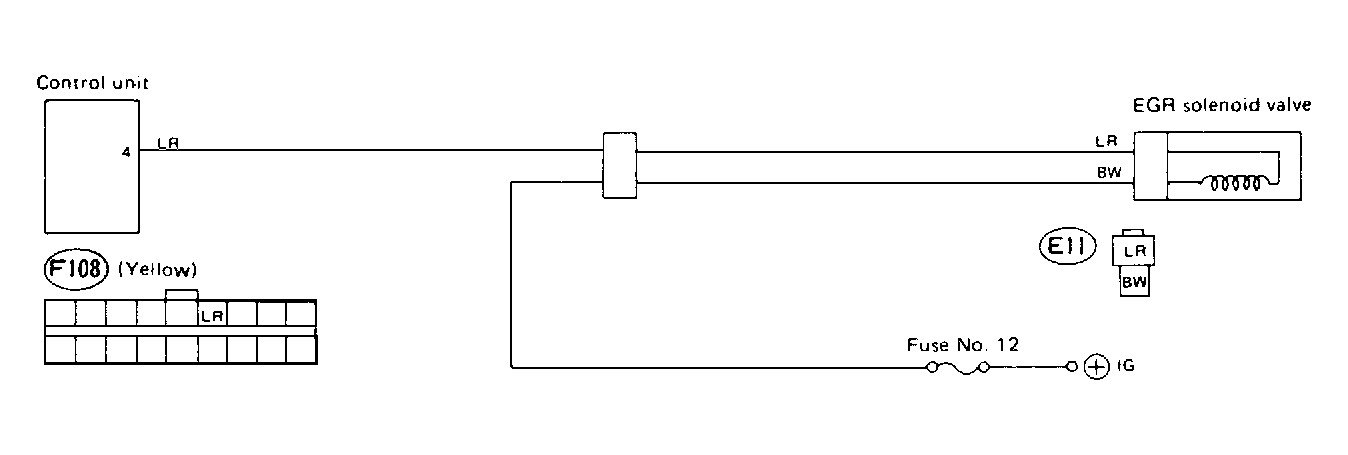

Fig 1: Code 34 - Wiring Schematic
Courtesy of SUBARU OF AMERICA, INC.

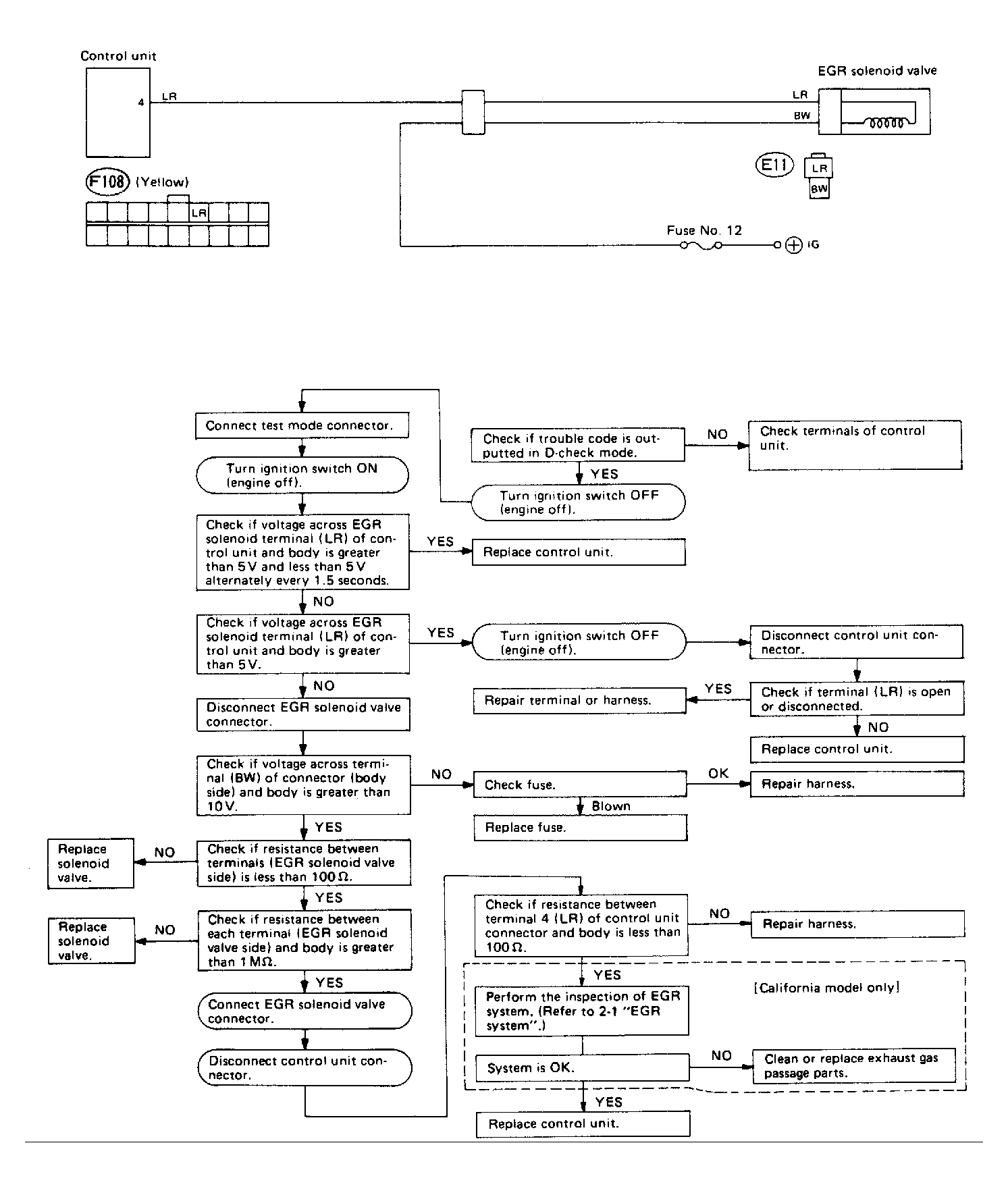

Fig 2: Code 34 - Diagnostic Flowchart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
