Power Window Switch

Remove control switch from door panel. Using ohmmeter, check continuity of switch. Use illustration for switch terminal identification. See Fig 1 -Fig 3 . Replace appropriate switch as necessary if switch continuity is not as specified. See Fig 3 .

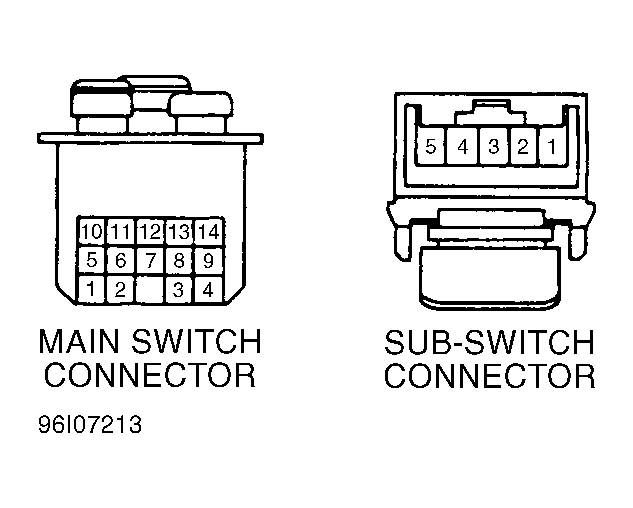

Fig 1: Identifying Power Window Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.

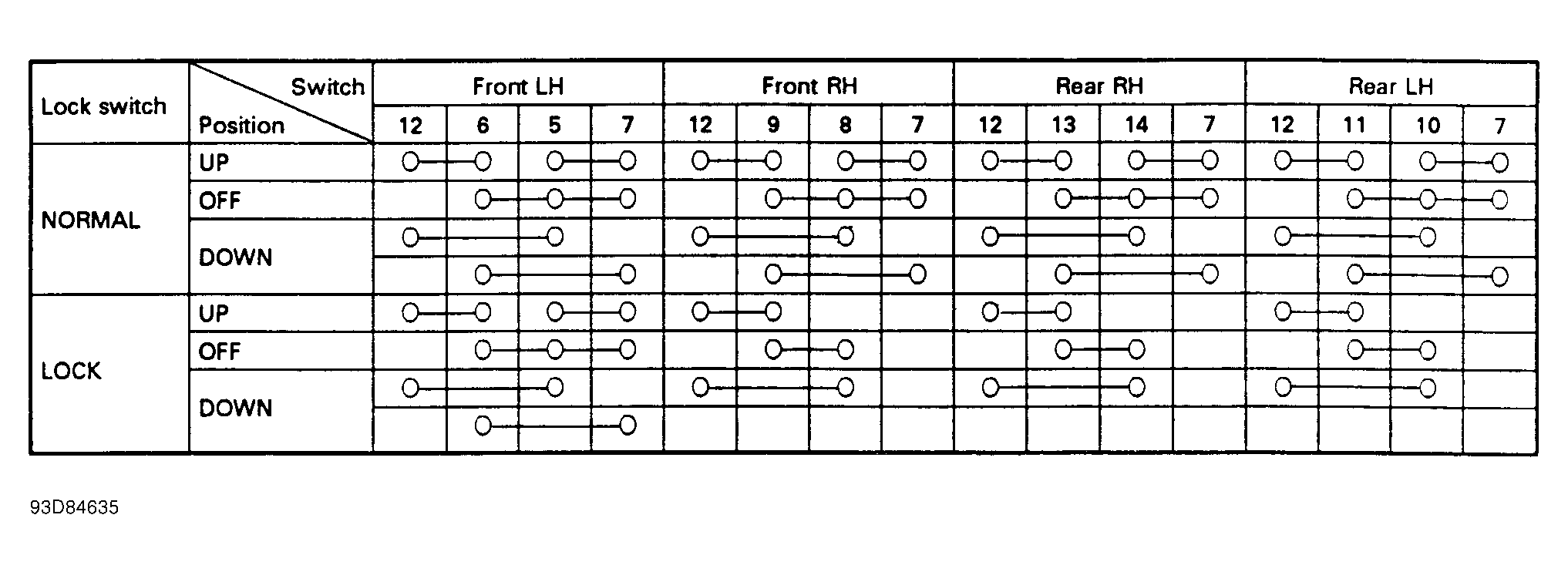

Fig 2: Power Window Main Switch Continuity Chart

Courtesy of SUBARU OF AMERICA, INC.

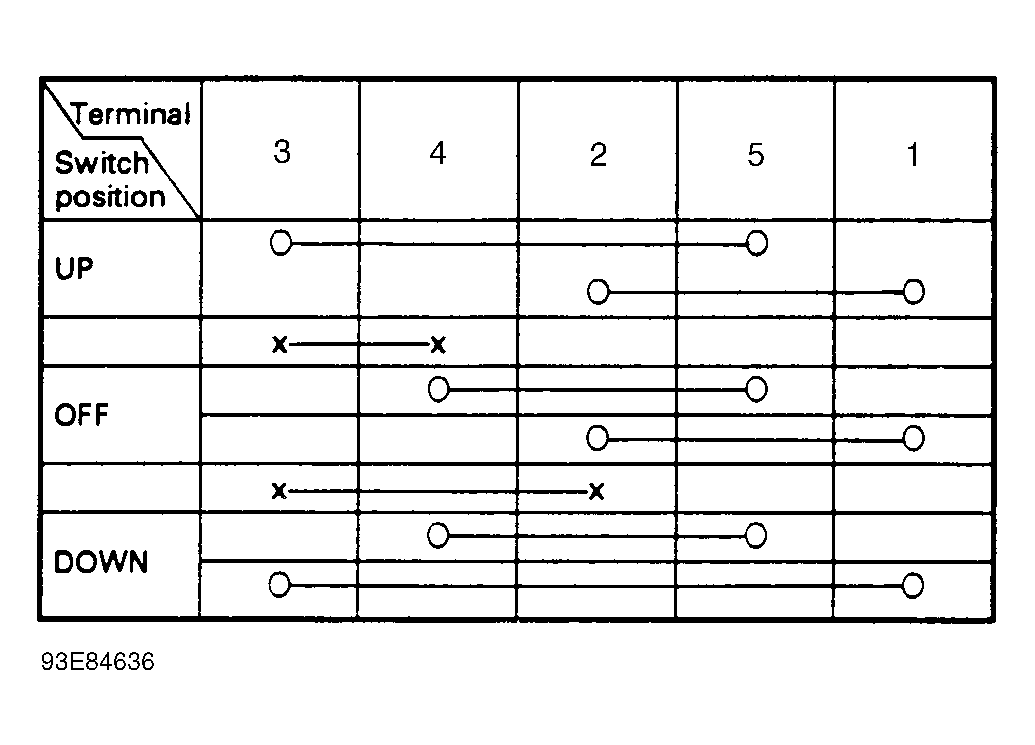

Fig 3: Power Window Sub-Switch Continuity Chart

Courtesy of SUBARU OF AMERICA, INC.
