Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| A/T Control Module | Below center of dash. |
| ABS/TCS Control Module | Under carpet between front passenger seat and door sill. |
| ABS Control Module | Under carpet between front passenger seat and door sill. |
| Cruise Control Module | Behind left side of dash. |
| Daytime Running Lamp Control Module | Behind right kick panel. |

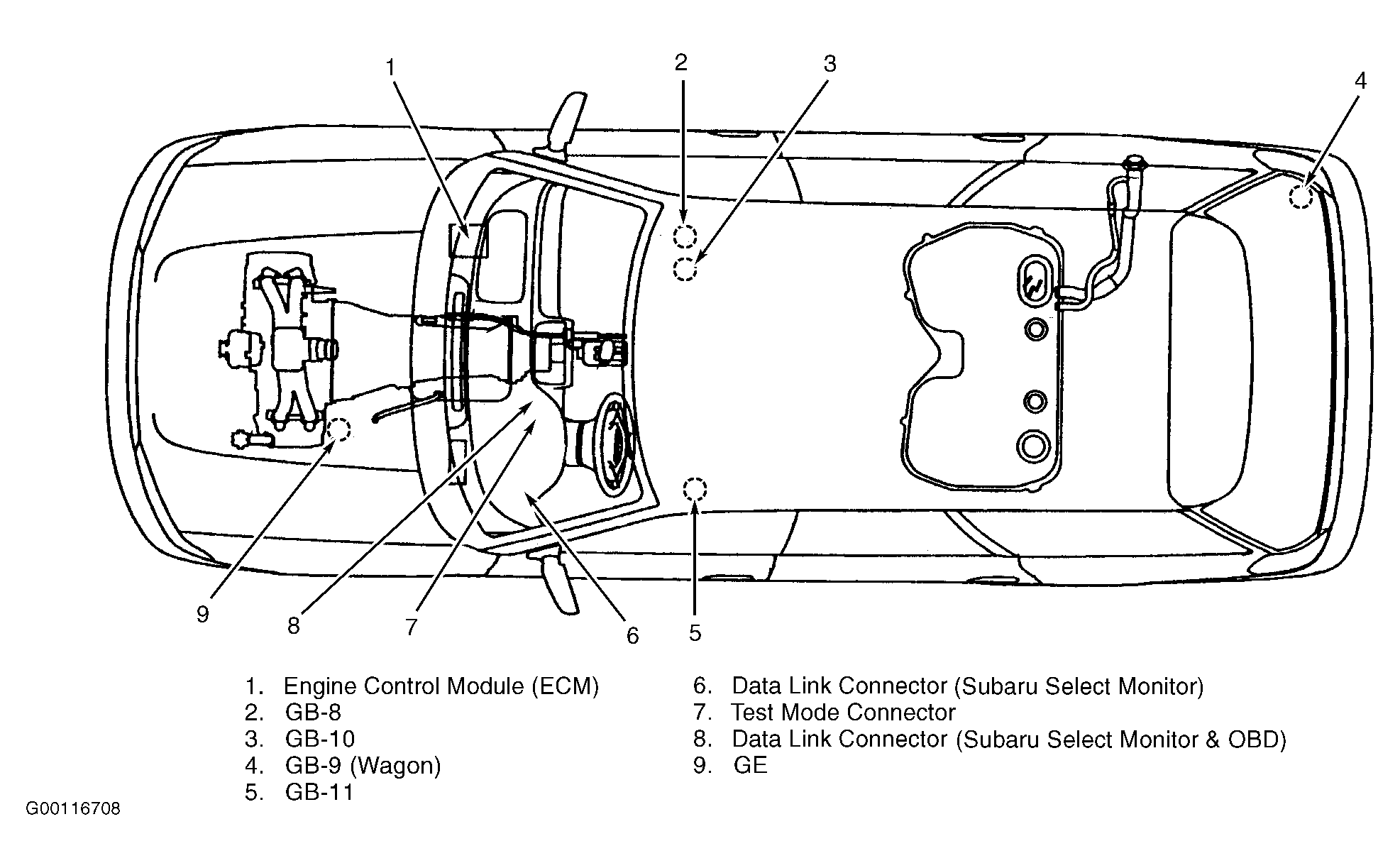

| Engine Control Module (ECM) | Below front passenger's footrest. See Figure. |
| Fuel Gauge Module | Below right side of rear seat. |
| Fuel Gauge Sub Module (AWD) | Below left side of rear seat. |
| Hydraulic Control Unit | On lower right front corner of engine compartment. |
| Hydraulic Unit (TCS) | Right side of engine compartment. |

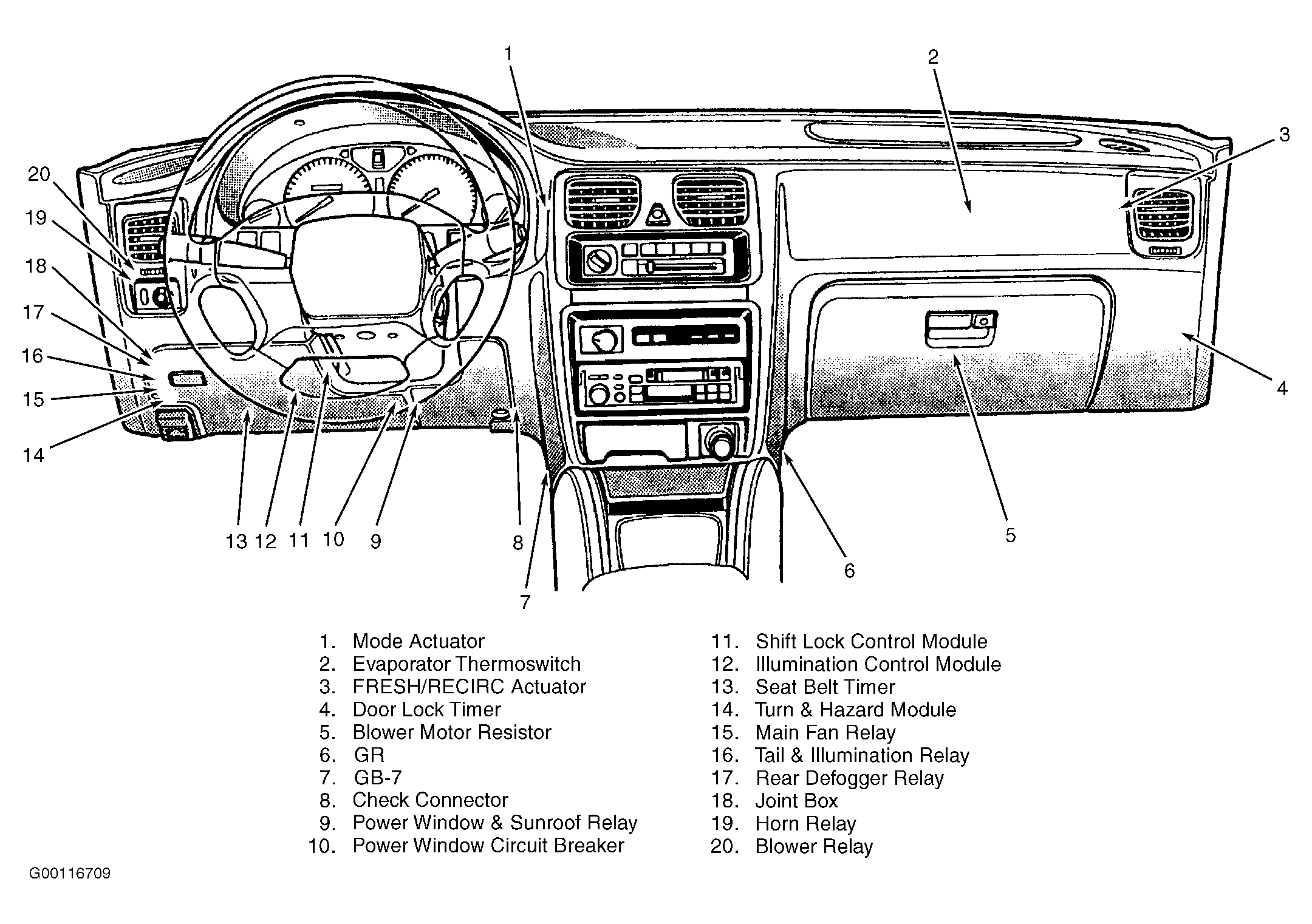

| Illumination Control Module | Behind dash, left of steering column. See Figure. |
| Security Control Module | Behind right side of glove box. |
| Shift Lock Control Module | Behind dash, left of steering column. See Figure. |
| Sunroof Control Module | On center of windshield header. |
| Transmission Control Module | Behind left side of dash. |
| Turn & Hazard Module | In joint box. See Figure. |
