Steering Column: Adjustments: CLOCKSPRING

Ensure wheels are in a straight-ahead position. With air bag module and steering wheel removed, turn clockspring pin clockwise until it stops. See Fig 1 . Then turn clockspring pin counterclockwise approximately 2 1/2 turns until the word CENTER appears in indicator. Align arrow marks. See Fig 1 . Clockspring is now centered. Install steering wheel and air bag module. Turn steering wheel fully in both directions to ensure steering is normal.

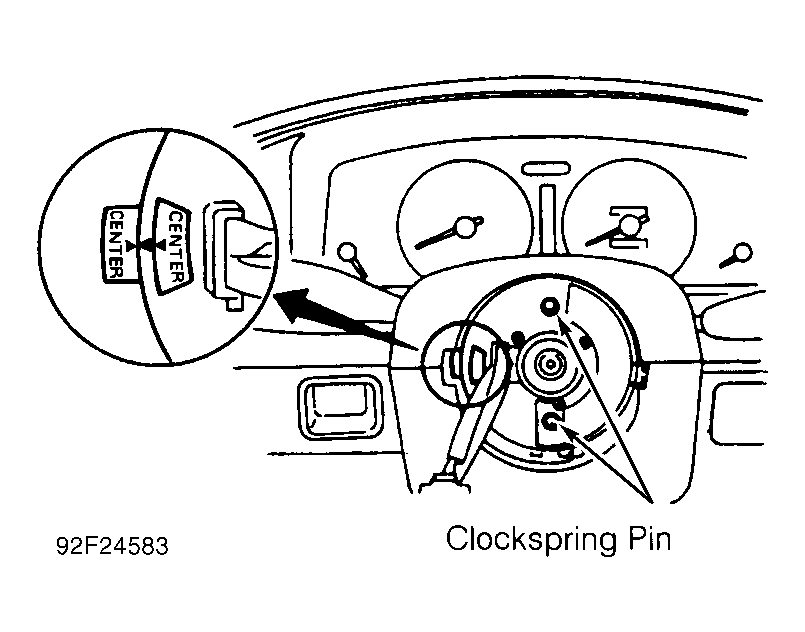

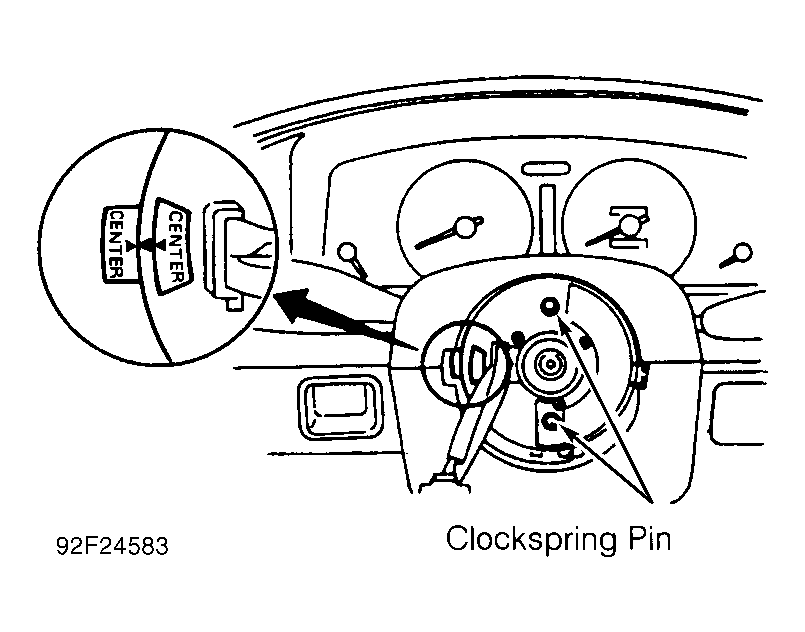

Fig 1: Centering Clockspring
G92F24583Courtesy of SUBARU OF AMERICA, INC.
