Toe-In Adjustment: AWD

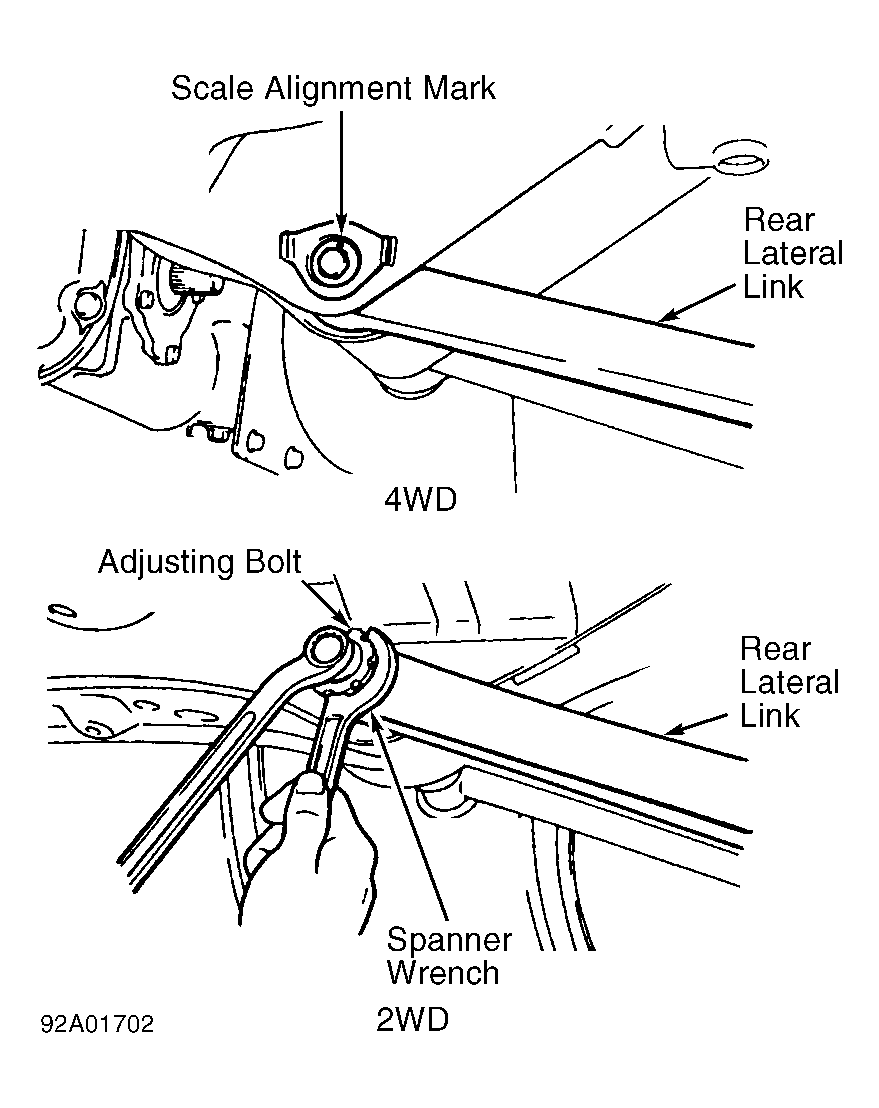

Loosen adjusting bolt for rear lateral link. See Figure . Turn eccentric cam bolt head counterclockwiseto change toe-out angle. Turn eccentric cam bolt head clockwise to change toe-in angle. Tighten adjusting bolt to 61-83 ft. lbs. (83-113 N.m).
