Control Units
CONTROL UNITS

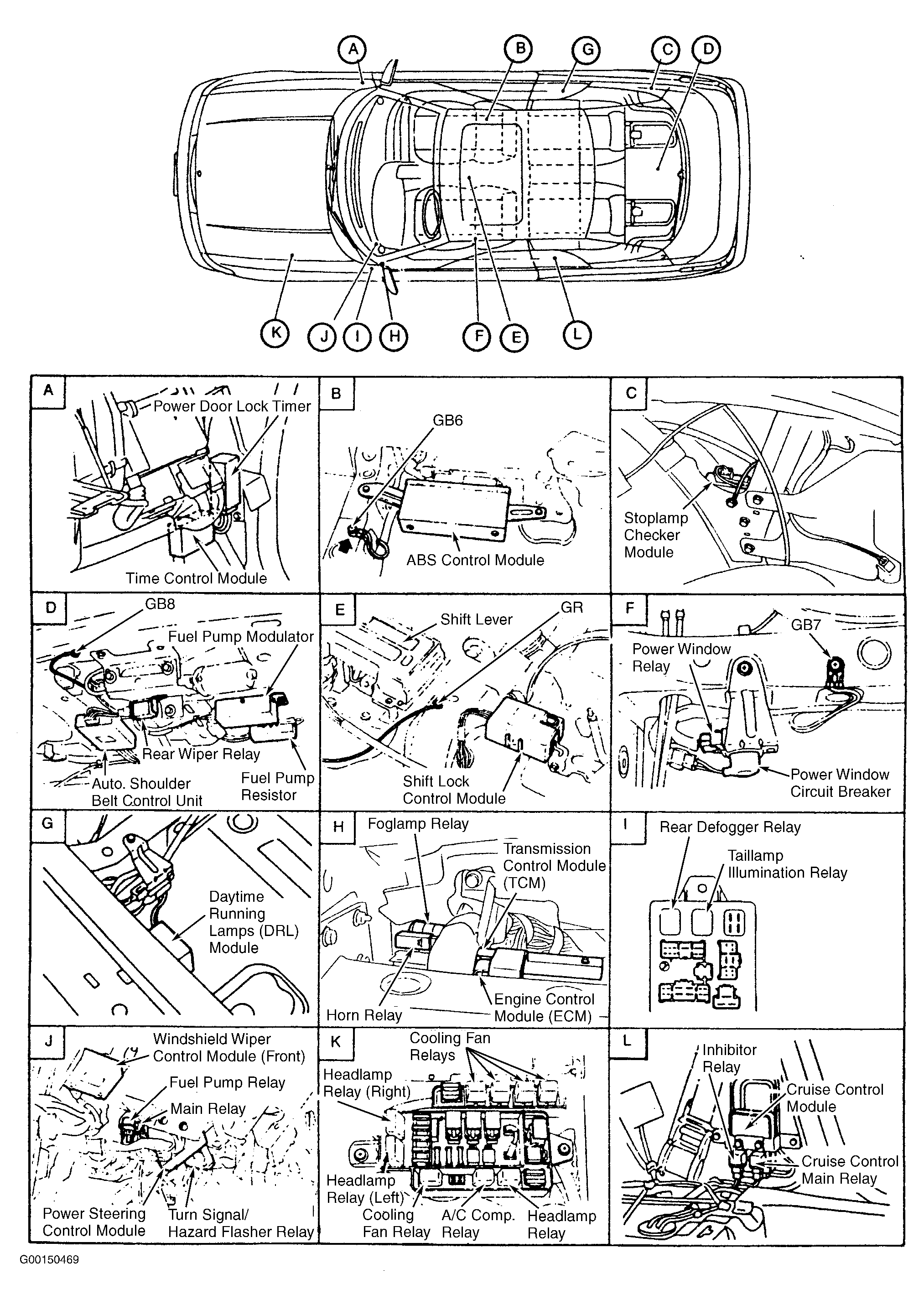

| Component | Component Location |
|---|---|
| ABS Control Module | Under right front seat. See Figure . |
| Air Bag Control Unit | Behind center console. |
| Anti-Theft Control Unit | Behind right side of dash, above glove compartment. |
| Auto. Shoulder Belt Control Unit | In luggage compartment, under package tray. See Figure . |
| Cruise Control Module | Left rear quarter panel. See Figure . |
| Daytime Running Lamps (DRL) Module | Right rear quarter panel. See Figure . |
| Engine Control Module (ECM) | Behind left side of dash, near TCM. See Figure . |
| Key Interlock Module | Behind ignition switch assembly. |
| Power Steering Control Module | Behind left side of dash. See Figure . |
| Shift Lock Control Module | Under center console, behind shift lever. See Figure . |
| Stoplamp Checker Module | In right side of luggage compartment. See Figure . |
| Time Control Module | Behind right kick panel. See Figure . |
| Transmission Control Module (TCM) | Behind left side of dash, near steering column. See Figure . |
| Windshield Wiper Control Module (Front) | Behind left side of dash. See Figure . |
