Ignition Timing

Warm engine to normal operating temperature. Turn A/C off. Connect Subaru Test Mode Monitor to test mode monitor connector, located under left side of dash. See Fig 1 . Using test mode monitor, select MODE 07 to determine ignition timing. See 6-CYLINDER IGNITION TIMING SPECIFICATION table. If ignition timing is not as specified, check self-diagnostic system for trouble codes. Repair as necessary. See the TESTS W/CODES article.

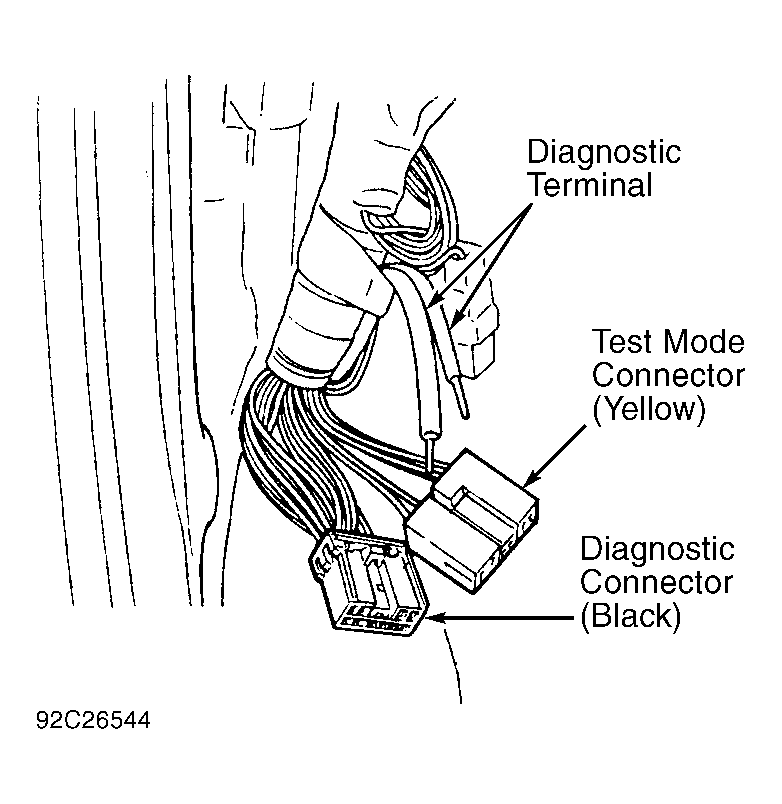

Fig 1: Locating Test Mode Connector

Courtesy of SUBARU OF AMERICA, INC.
