Component Locations

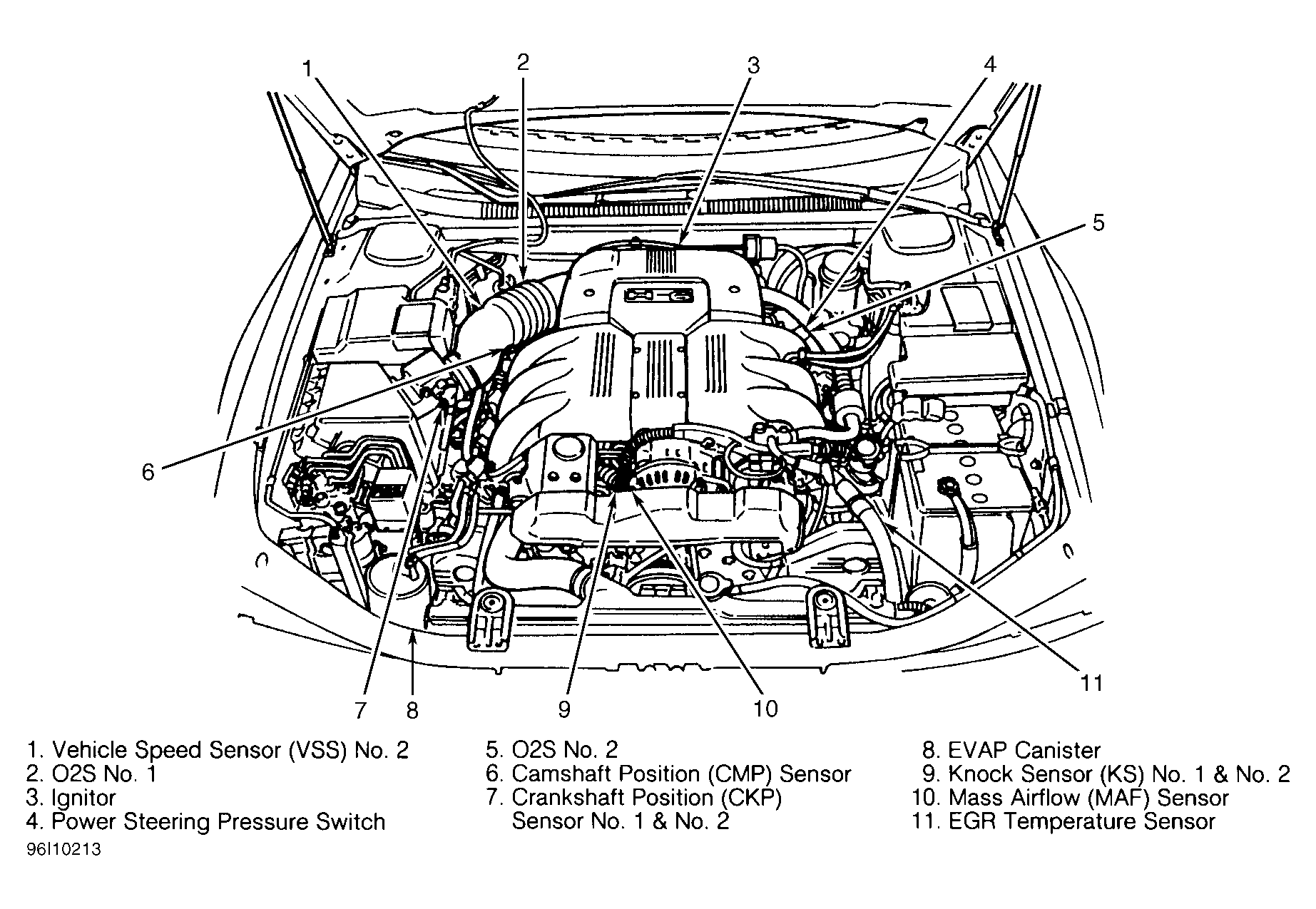

Fig 1: Component Locations (1 Of 2)
G96I10213Courtesy of SUBARU OF AMERICA, INC.

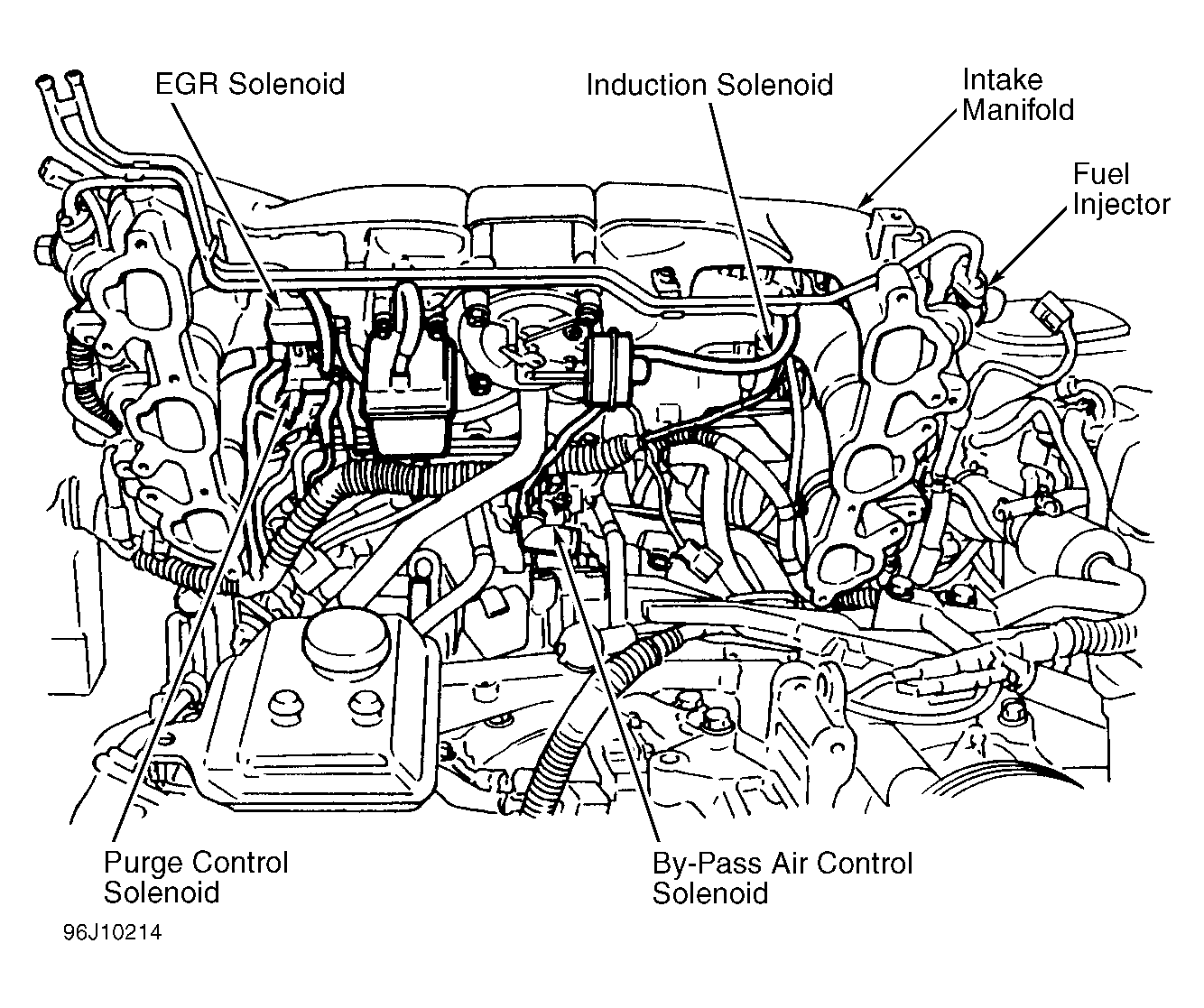

Fig 2: Component Locations (2 Of 2)
G96J10214Courtesy of SUBARU OF AMERICA, INC.
