Service Point Locations

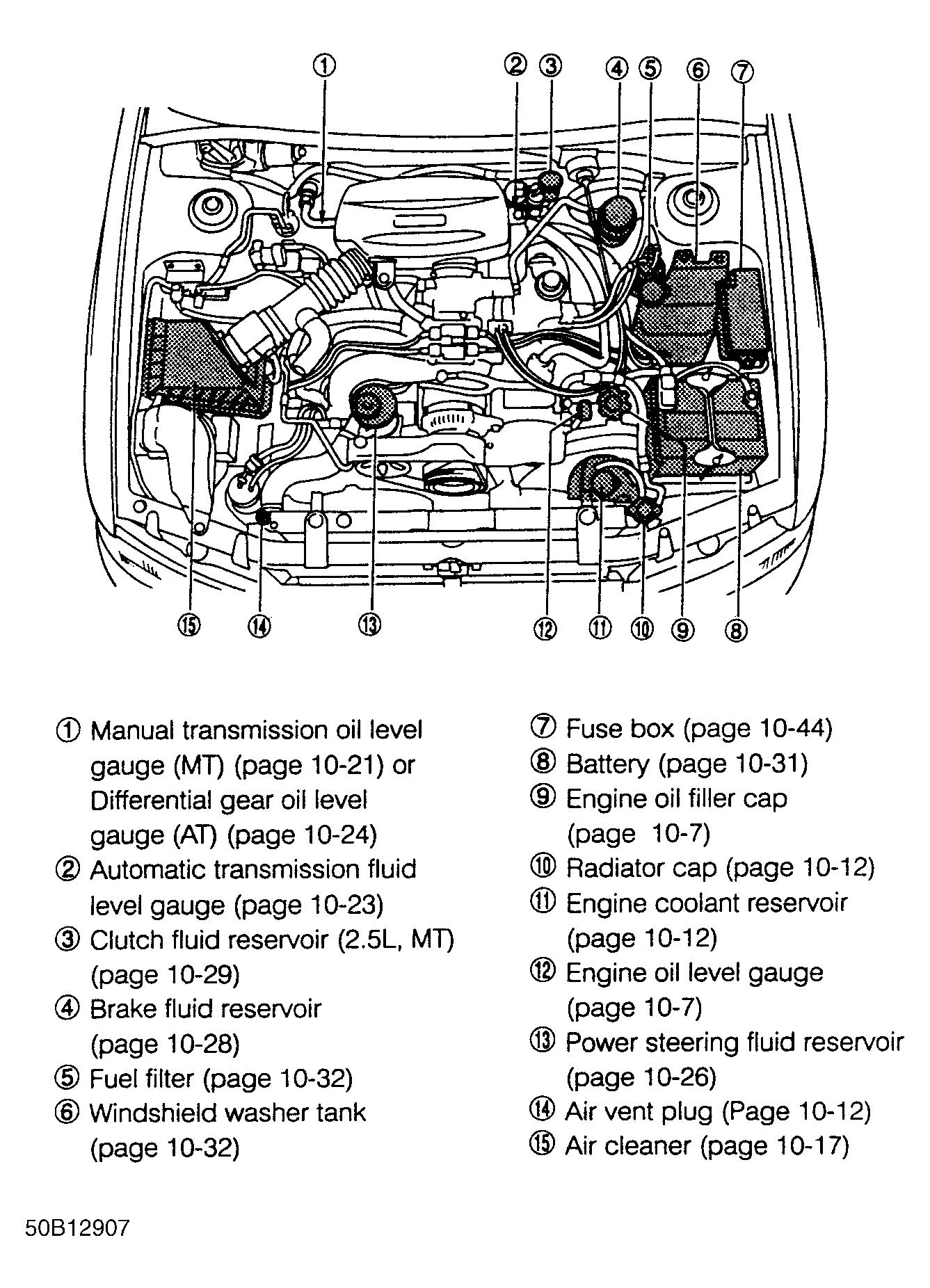

Fig 1: Service Point Locations (Impreza)
Courtesy of SUBARU AMERICA, INC.

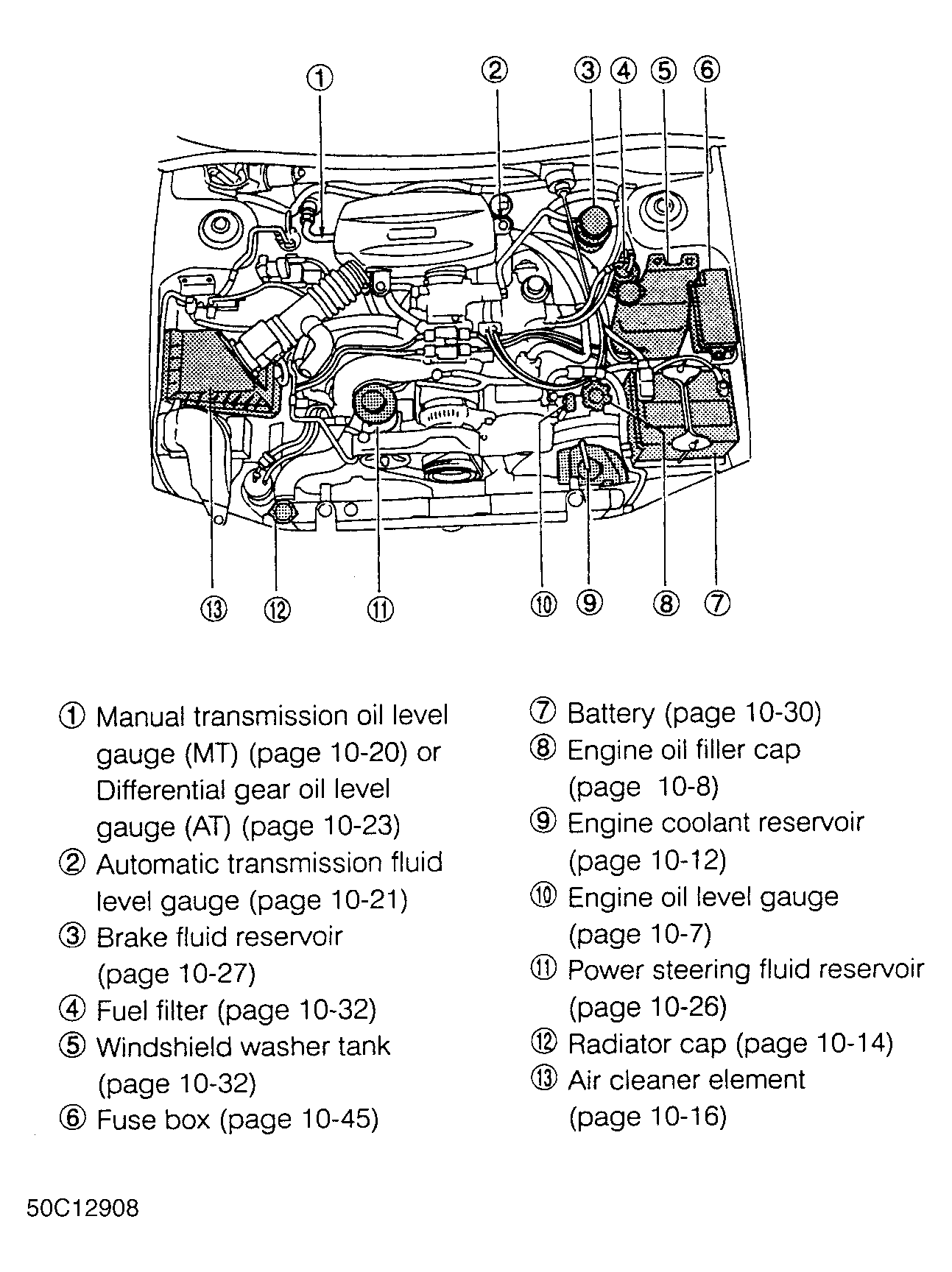

Fig 2: Engine Compartment Service Point Locations (Legacy)
Courtesy of SUBARU AMERICA, INC.
Courtesy of SUBARU AMERICA, INC.
Courtesy of SUBARU AMERICA, INC.
