Power Window Main Switch

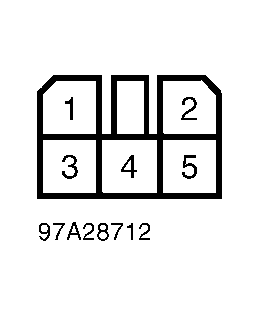

Remove power window main switch from driver's door panel. Disconnect harness connector. Continuity should exist between specified switch terminals with switch in specified position. See POWER WINDOW MAIN SWITCH CONTINUITY . SeeFigure. If continuity does not exist between specified terminals, replace power window main switch.
POWER WINDOW MAIN SWITCH CONTINUITY TEST (SVX)
| Switch Position | Terminal No. | Wire Color | ||
|---|---|---|---|---|
| Left Front Switch | ||||
| Locked & Unlocked | ||||
| Up | 6 & 12 | BLU/RED & BLK/YEL | ||
| Up | 5 & 7 | BLU & BLK | ||
| Off | 5, 6 & 7 | BLU, BLU/RED & BLK | ||
| Down | 6 & 7 | BLU/RED & BLK | ||
| Down | 5 & 12 | BLU & BLK/YEL | ||
| Right Front Switch | ||||
| Locked | ||||
| Up | 9 & 12 | RED/YEL & BLK/YEL | ||
| Off | 7, 8 & 9 | BLK, BLK/GRY & RED/YEL | ||
| Down | 8 & 12 | BLK/GRY & BLK/YEL | ||
| Unlocked | ||||
| Up | 7 & 8 | BLK & BLK/GRY | ||
| Up | 9 & 12 | RED/YEL & BLK/YEL | ||
| Off | 7, 8 & 9 | BLK, BLK/GRY & RED/YEL | ||
| Down | 8 & 12 | BLK/GRY & BLK/YEL | ||
| Down | 7 & 9 | BLK & RED/YEL | ||
| Left Rear Switch | ||||
| Locked | ||||
| Up | 11 & 12 | GRY/YEL & BLK/YEL | ||
| Off | 7, 10 & 11 | BLK, GRY/BLK & GRY/YEL | ||
| Down | 10 & 12 | GRY/BLK & BLK/YEL | ||
| Unlocked | ||||
| Up | 7 & 10 | BLK & GRY/BLK | ||
| Up | 11 & 12 | GRY/YEL & BLK/YEL | ||
| Off | 7, 10 & 11 | BLK, GRY/BLK & GRY/YEL | ||
| Down | 7 & 11 | BLK & GRY/YEL | ||
| Down | 10 & 12 | GRY/BLK & BLK/YEL | ||
| Right Rear Switch | ||||
| Locked | ||||
| Up | 12 & 13 | BLK/YEL & GRY/RED | ||
| Off | 7, 13 & 14 | BLK, GRY/RED & GRY/WHT | ||
| Down | 12 & 14 | BLK/YEL & GRY/WHT | ||
| Unlocked | ||||
| Up | 12 & 13 | BLK/YEL & GRY/RED | ||
| Up | 7 & 14 | BLK & GRY/WHT | ||
| Off | 7, 13 & 14 | BLK, GRY/RED & GRY/WHT | ||
| Down | 7 & 13 | BLK & GRY/RED | ||
| Down | 12 & 14 | BLK/YEL & GRY/WHT | ||
