Removal & Installation

Remove door trim panel. Remove window glass from regulator assembly. Remove front and rear sash/guides. See Fig 1 . Remove regulator assembly mounting bolts. Remove window regulator assembly. To install, reverse remove procedure. Lubricate regulator pivot points.

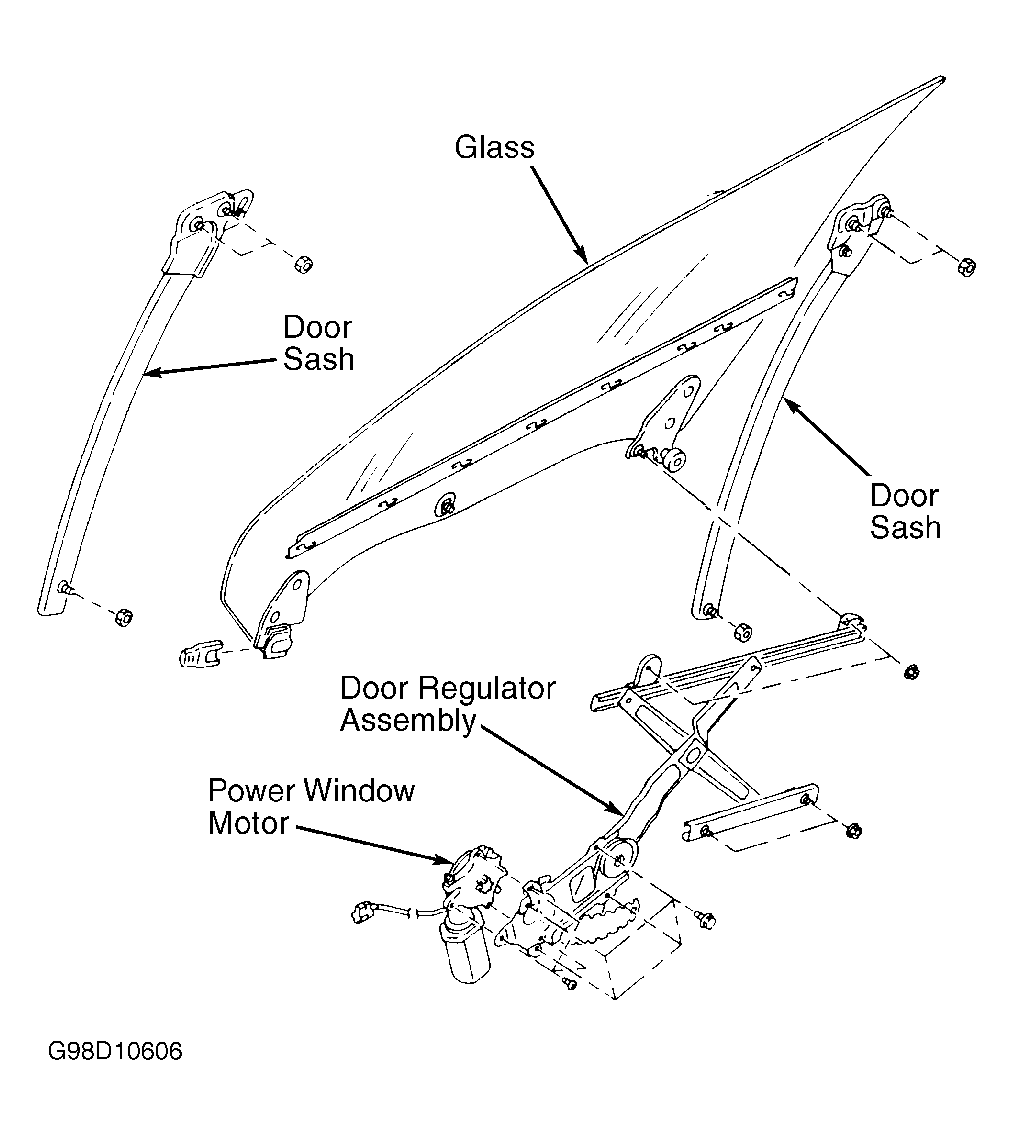

Fig 1: Exploded View Of Power Window Assembly (Impreza Shown; Forester & Impreza Similar)

Courtesy of SUBARU OF AMERICA, INC.
