Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

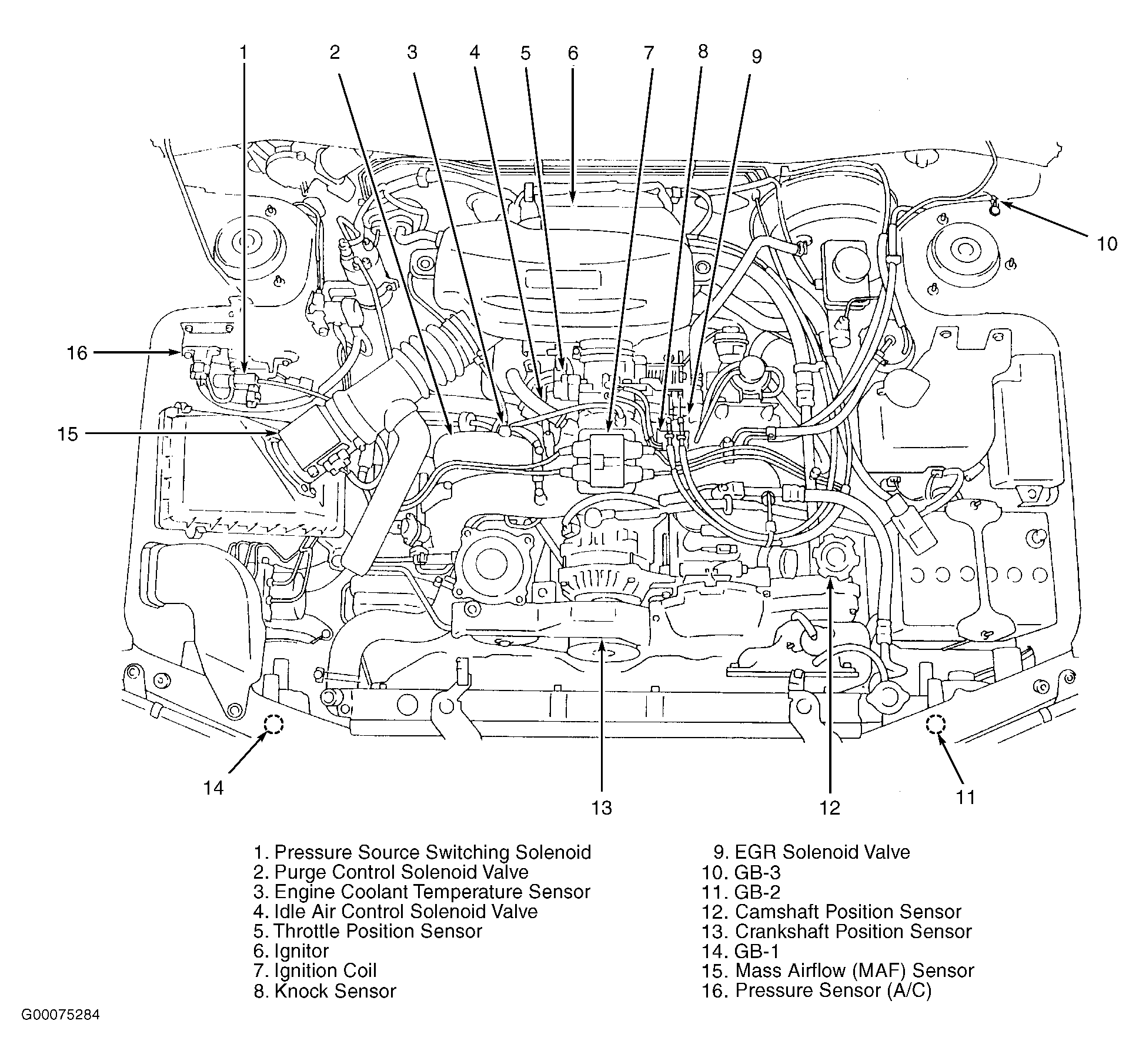

Fig 1: Engine Compartment

Fig 2: Fuse & Relay Box

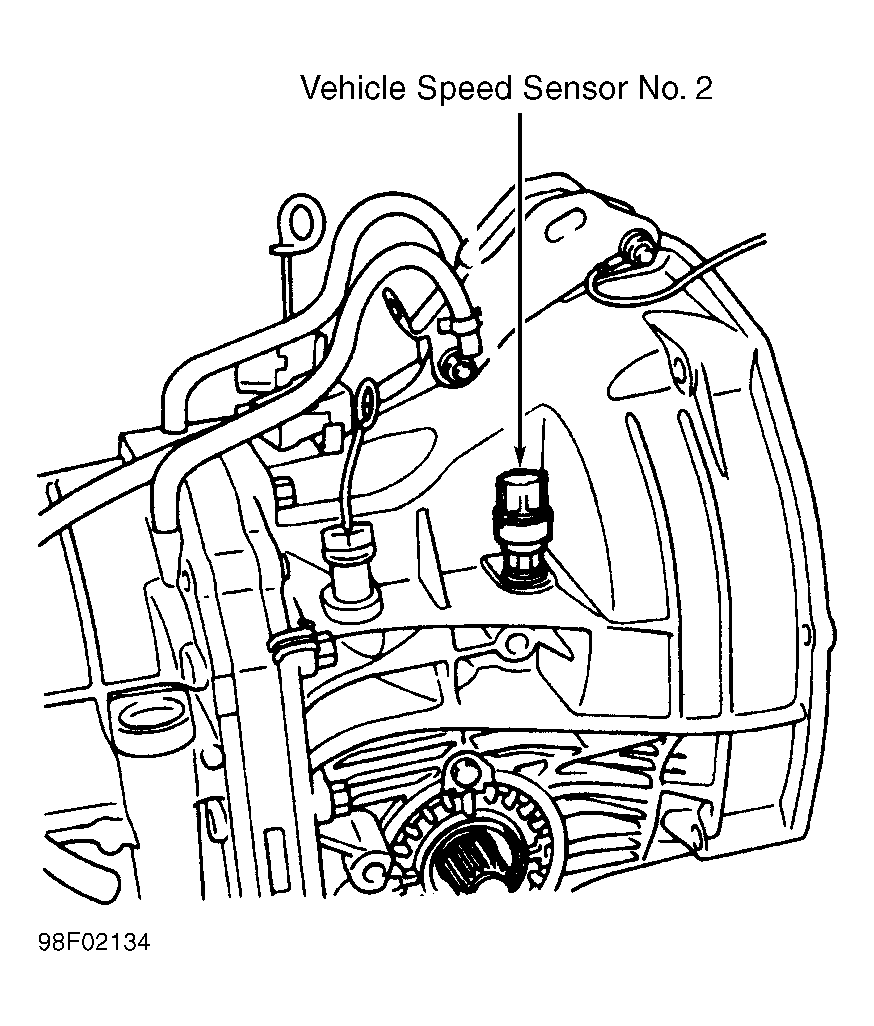

Fig 3: Left Rear Of Transmission (A/T)

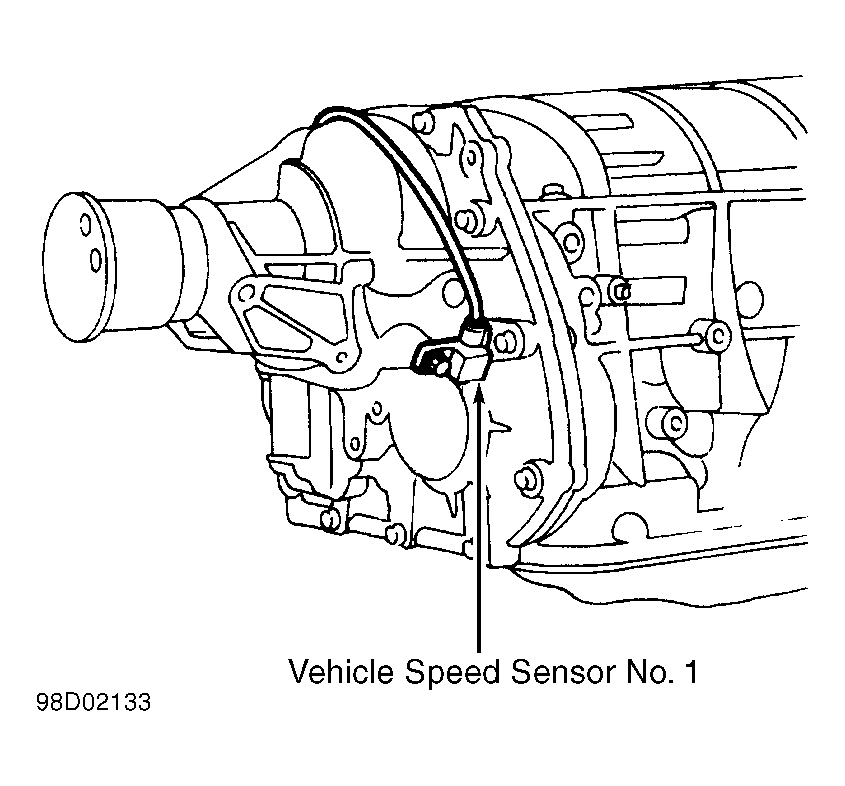

Fig 4: Right Side Of Transmission M/T)

Fig 5: Fuel Tank Assembly

Fig 6: Overview Of Vehicle
