Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | On right front side of engine compartment. |
| Air Bag Control Module | Ahead of front floor tunnel. |
| Cruise Control Module | Behind left side of dash. |

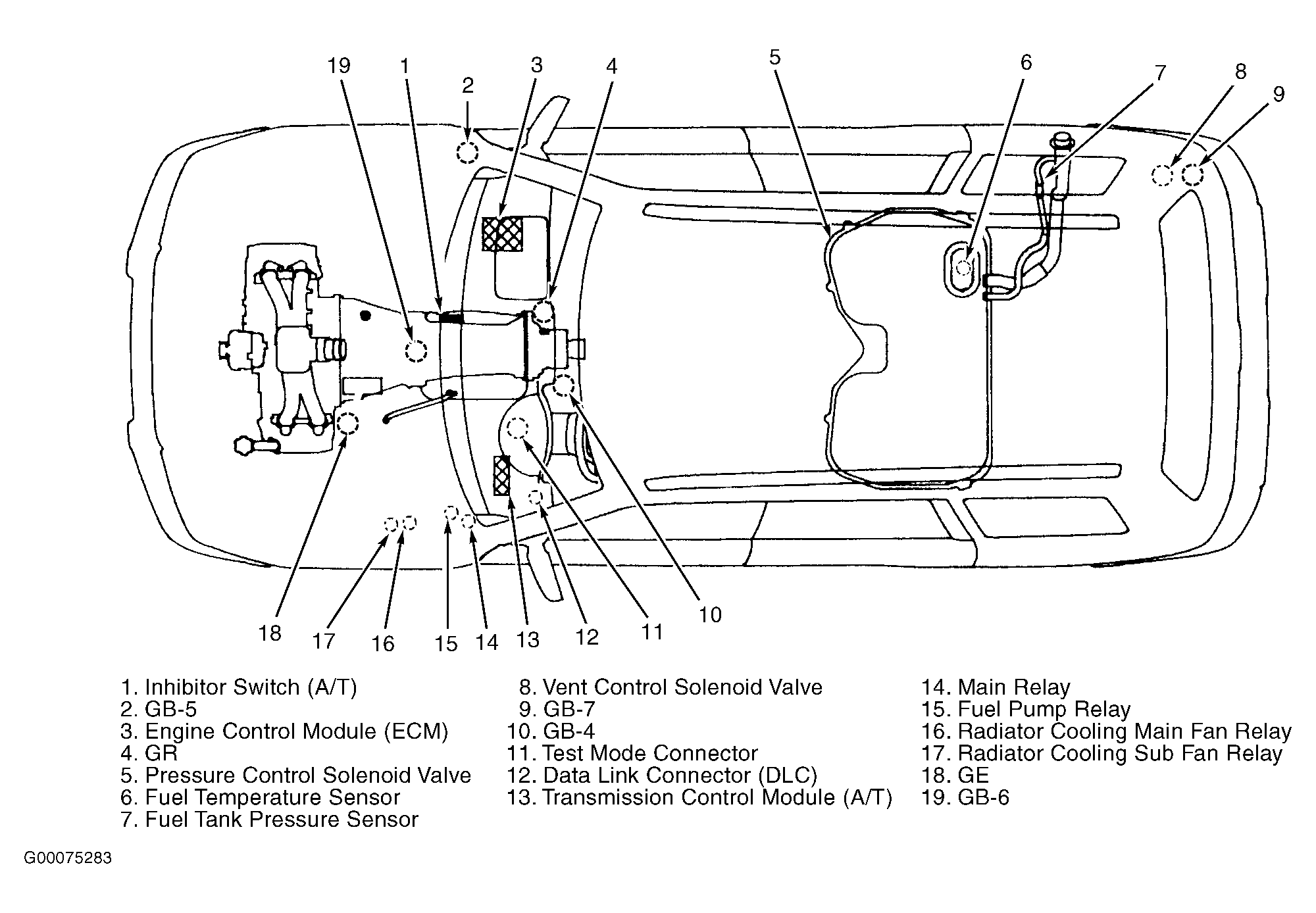

| Engine Control Module (ECM) | Behind passenger carpet, under right side of dash. See Figure. |
| Fuel Gauge Sub Module | On top of fuel tank. See Figure. |
| Fuel Pump & Fuel Gauge Module | On top of fuel tank. See Figure. |
| Illumination Control Module | Behind right side dash. |
| Key Warning Module | Behind left side dash. |
| Shift Lock Control Module | Behind left side of dash. |
| Transmission Control Module (A/T) | Behind left side of dash. See Figure. |
| Turn & Hazard Module | Behind left side of dash. |
