Electrical Component Locator: Miscellaneous
MISCELLANEOUS
| Component | Component Location |
|---|---|
| A/T Dropping Resistor | On right side of engine compartment. |
| Blower Motor Resistor | Behind right side of dash. |
| Check Connector | Under left side of dash. |
| Data Link Connector (DLC) | On dash, left of steering column. See Figure. |
| Diagnosis Connector | Behind left side of dash. |
| Diagnosis Terminal (Ground) | Behind left side of dash. |
| Diode (Luggage Room Light) | At right rear corner of cargo compartment. |

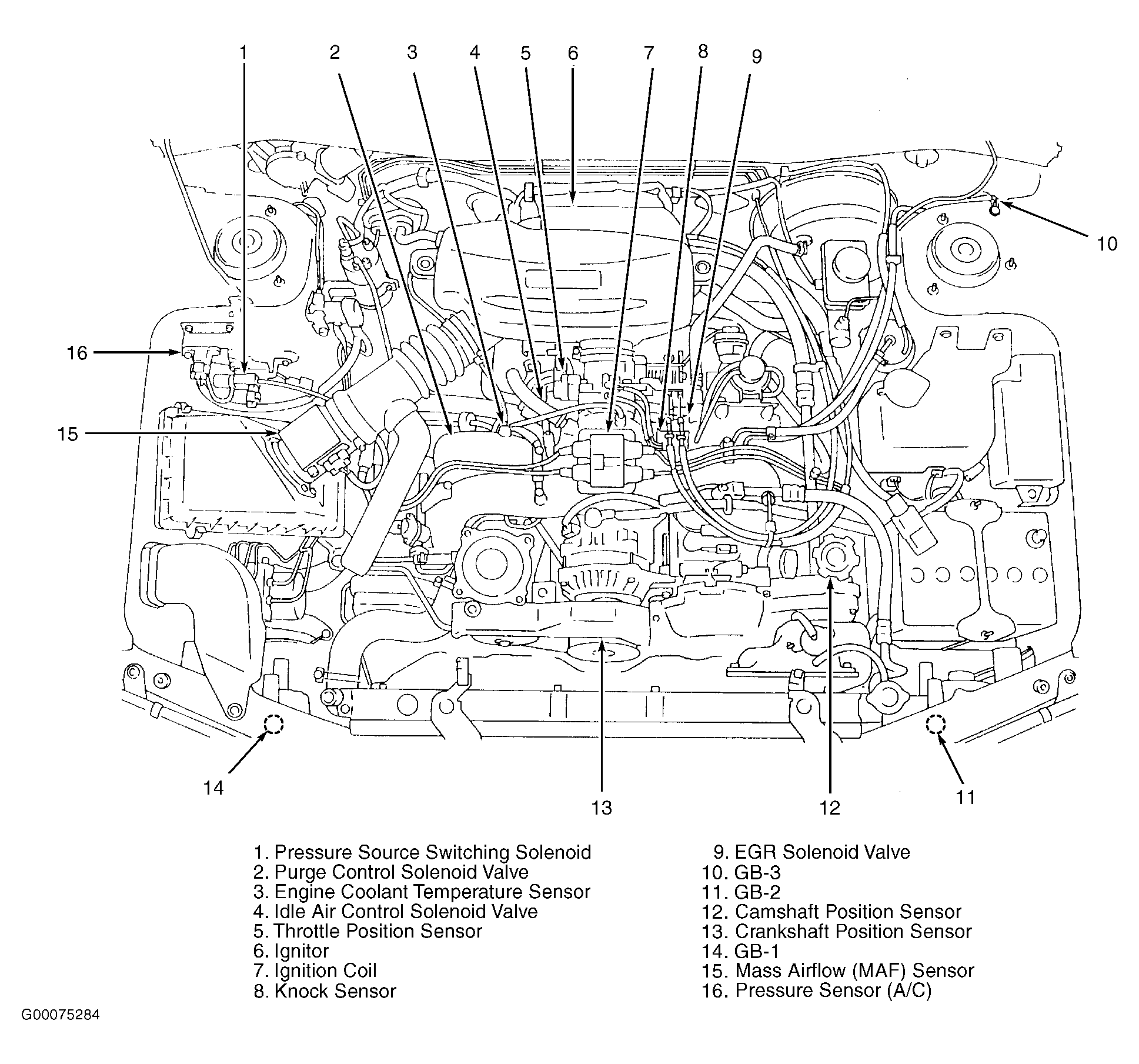

| Ignition Coil | On top center of engine. See Figure. |
| Ignitor | On center of firewall. See Figure. |
| Mirror Heater Condenser | Behind right side of dash. |
| Shield Joint Connector (ABS) | At right front corner of engine compartment. |
| Shield Joint Connector (A/T) | Behind left side of dash. |
| Shield Joint Connector (E/G) | Behind right kick panel. |
| Test Mode Connector | Behind left side of dash. See Figure. |
