Ignition Coil

IGNITION COIL RESISTANCE - OHMS @ 68°F (20°C)

Application (1) Primary (2) Secondary
Forester & Impreza .62-.76 17,850-24,150
Legacy
2.2L .66-.80 10,880-14,720
2.5L .40-1.00 18,000-24,000

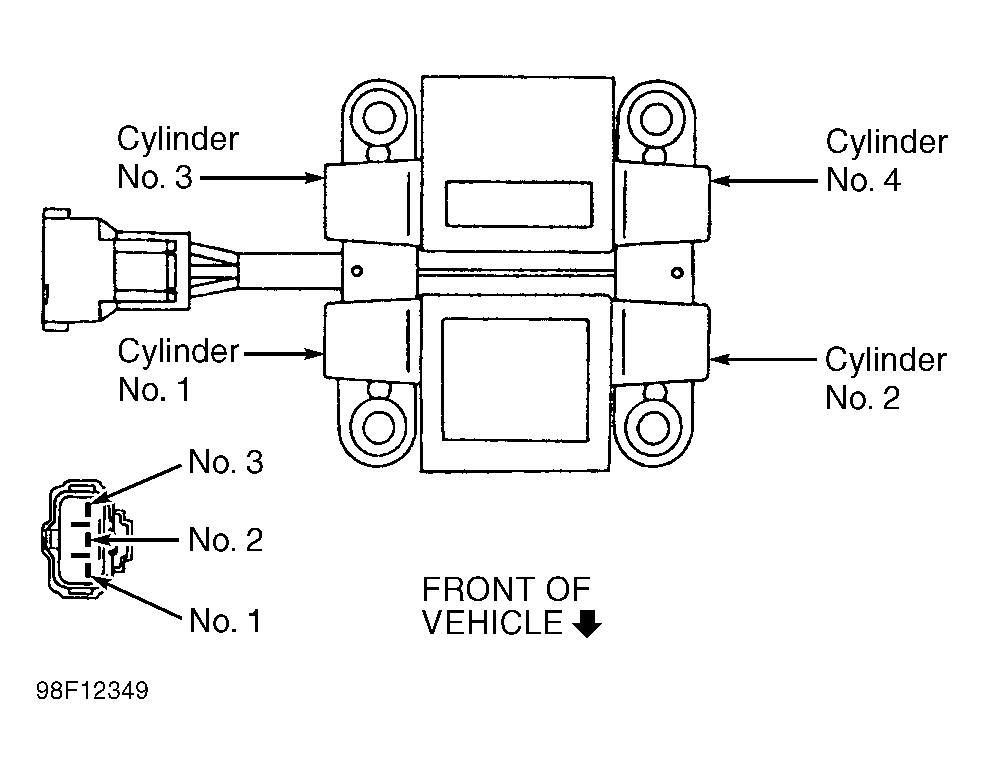

(1) Checked between ignition coil primary terminals No. 1 and No. 2, and terminals No. 2 and No. 3. See Figure.
(2) Check between ignition coil secondary terminals No. 1 and No. 2, and terminals No. 3 and No. 4. See Figure.
