Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS/TCS Control Module | Under right side of rear seat. |
| ABS Control Module & Hydraulic Control Module | On right front side of engine compartment. |
| Air Bag Control Module | Ahead of front floor tunnel. |
| Cruise Control Module | Behind left side of dash. |
| Daytime Running Light (DRL) Control Module | Behind right kick panel. |

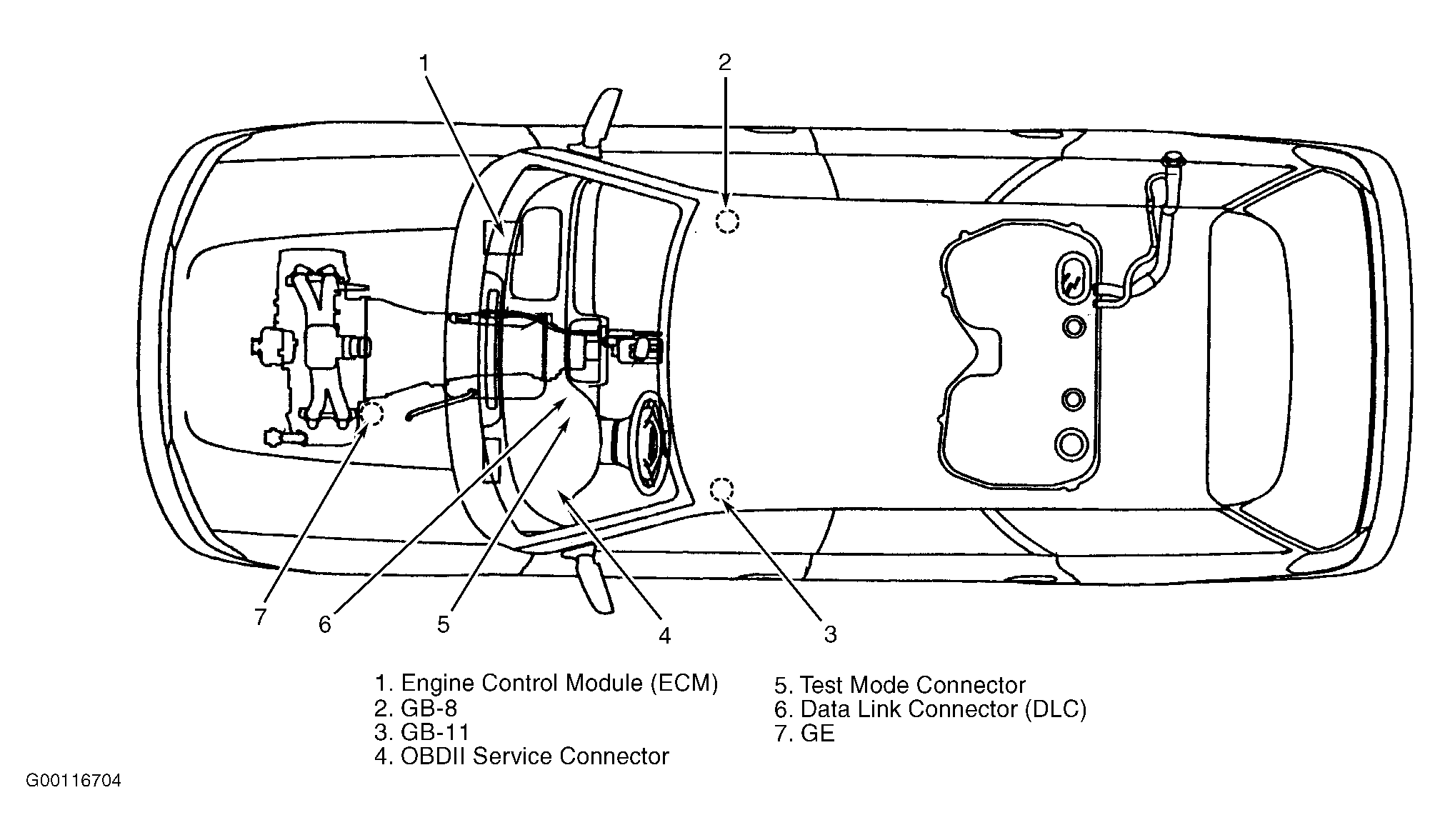

| Engine Control Module (ECM) | Behind passenger carpet, under right side of dash. See Figure. |
| Fuel Gauge Sub Module (AWD) | On top of fuel tank. |
| Fuel Pump & Fuel Gauge Module | On top of fuel tank. |
| Hydraulic Unit (TCS) | Right side of engine compartment. |

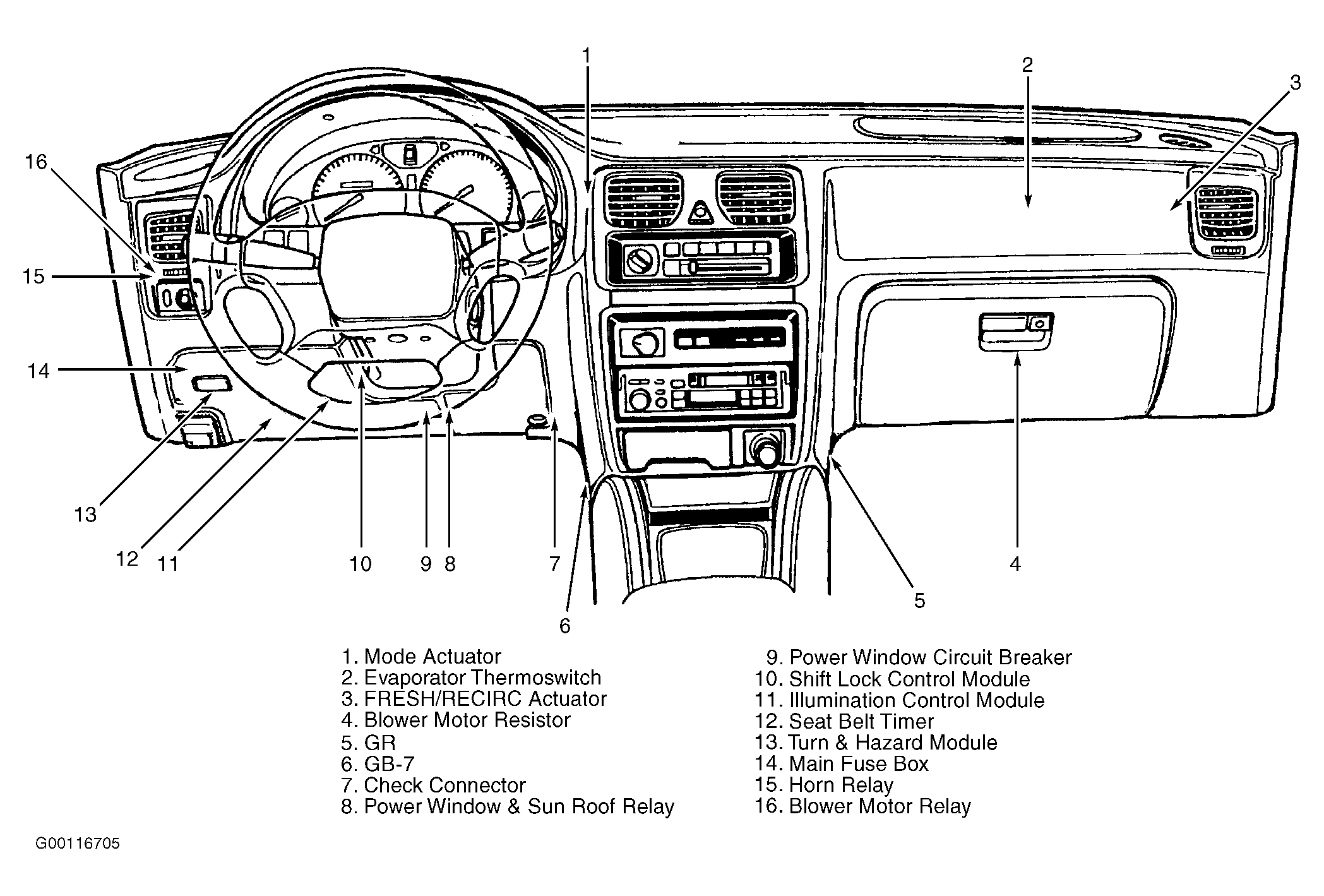

| Illumination Control Module | Behind dash, left of steering column. See Figure. |
| Security Control Module | Behind center of dash. |
| Shift Lock Control Module | Behind left side of dash. See Figure. |
| Sun Roof Control Module | On center of windshield header. |
| Transmission Control Module (TCM) | Behind left side of dash. |
| Turn & Hazard Module | Behind left side of dash. See Figure. |
