Engine Controls - Pin Voltage Charts: Testing

ECM circuits are checked at ECM connector. See Fig 1 . Testing may be performed with ignition off, with ignition on and engine off, and/or with ignition on and engine running. Test between indicated terminal and a good body ground. See Fig 2 -Fig 10 . When testing pin voltage, carefully backprobe terminal at harness side of ECM connector.
If voltage is not as specified, test, repair or replace circuit or affected component. Retest circuit to verify repair has been made. Unless stated otherwise, perform all tests with ECM harness connected.

Fig 1: Identifying ECM Connector Terminals

G97C06833

Courtesy of SUBARU OF AMERICA, INC.

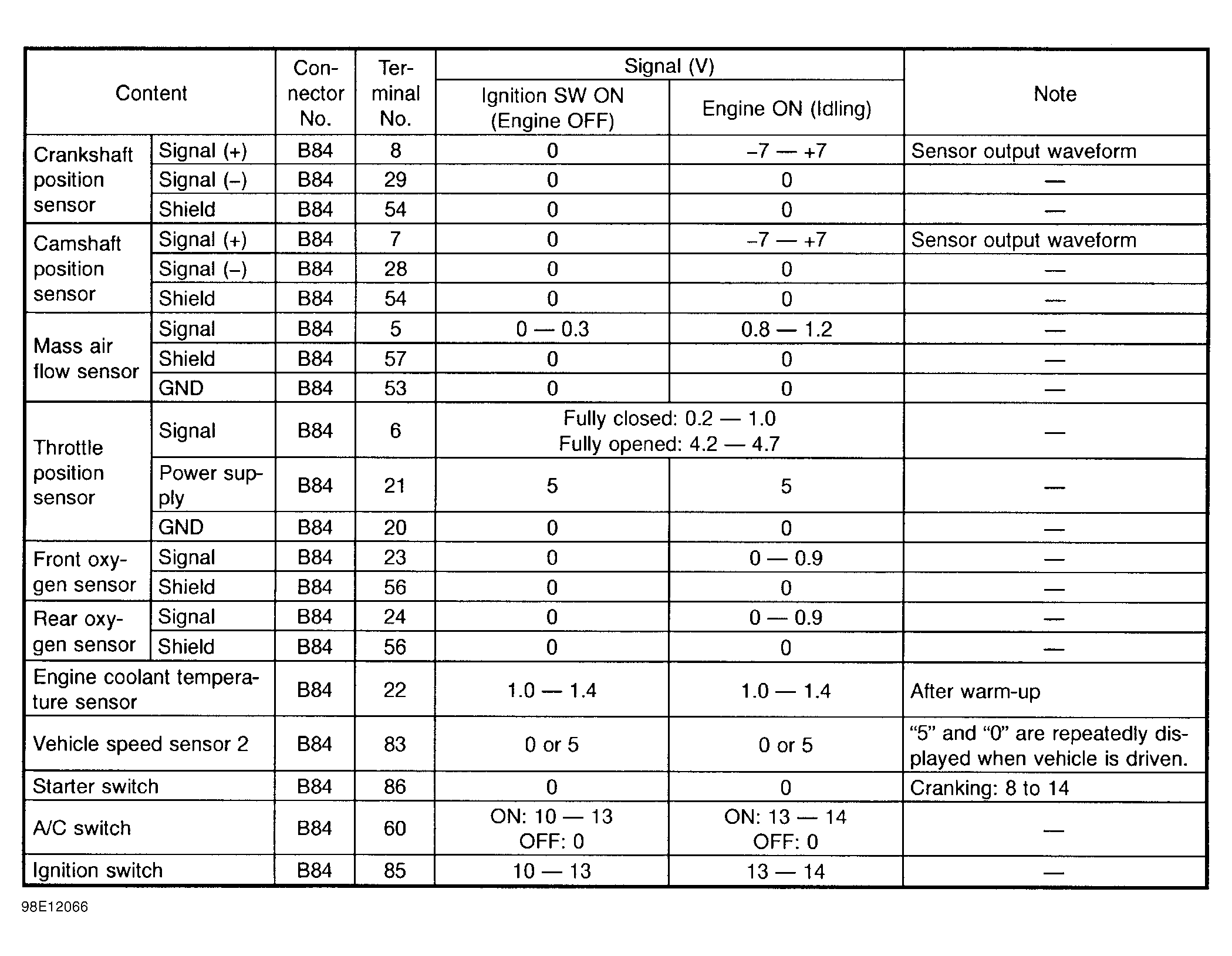

Fig 2: Identifying ECM Connector Terminals & Circuits (Forester - 1 of 3)

G98E12066

Courtesy of SUBARU OF AMERICA, INC.

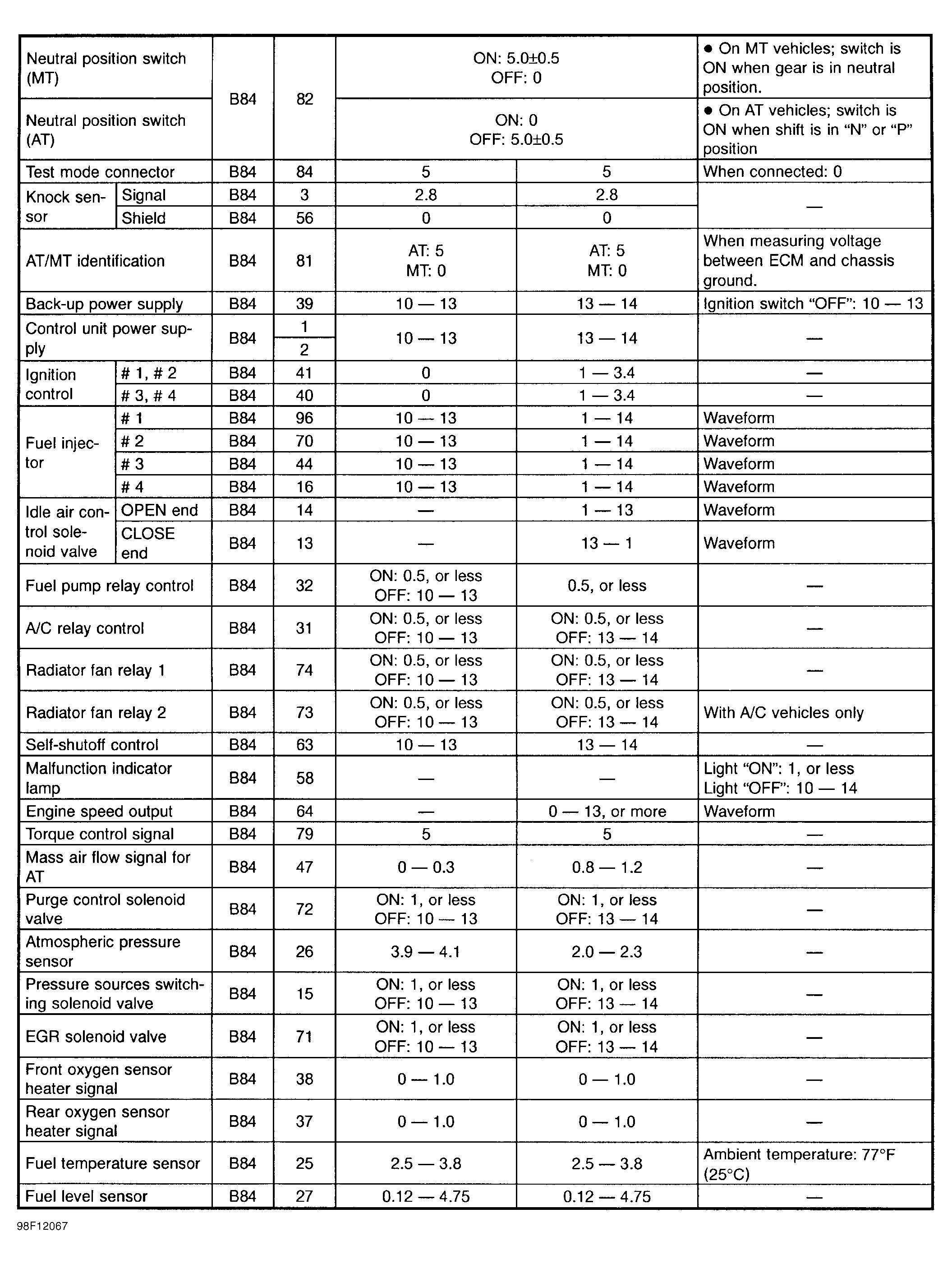

Fig 3: Identifying ECM Connector Terminals & Circuits (Forester - 2 of 3)

G98F12067

Courtesy of SUBARU OF AMERICA, INC.

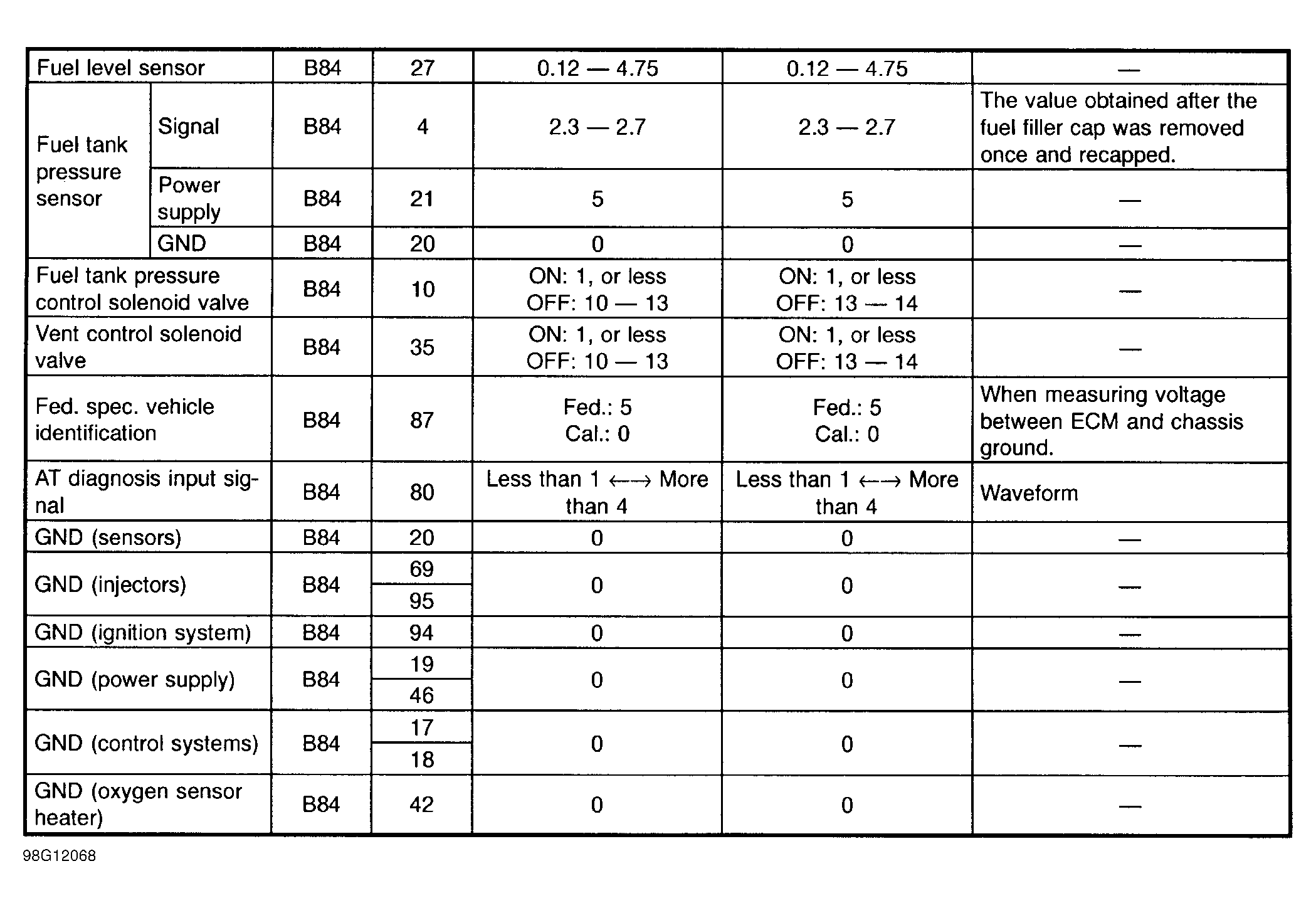

Fig 4: Identifying ECM Connector Terminals & Circuits (Forester - 3 of 3)

G98G12068

Courtesy of SUBARU OF AMERICA, INC.

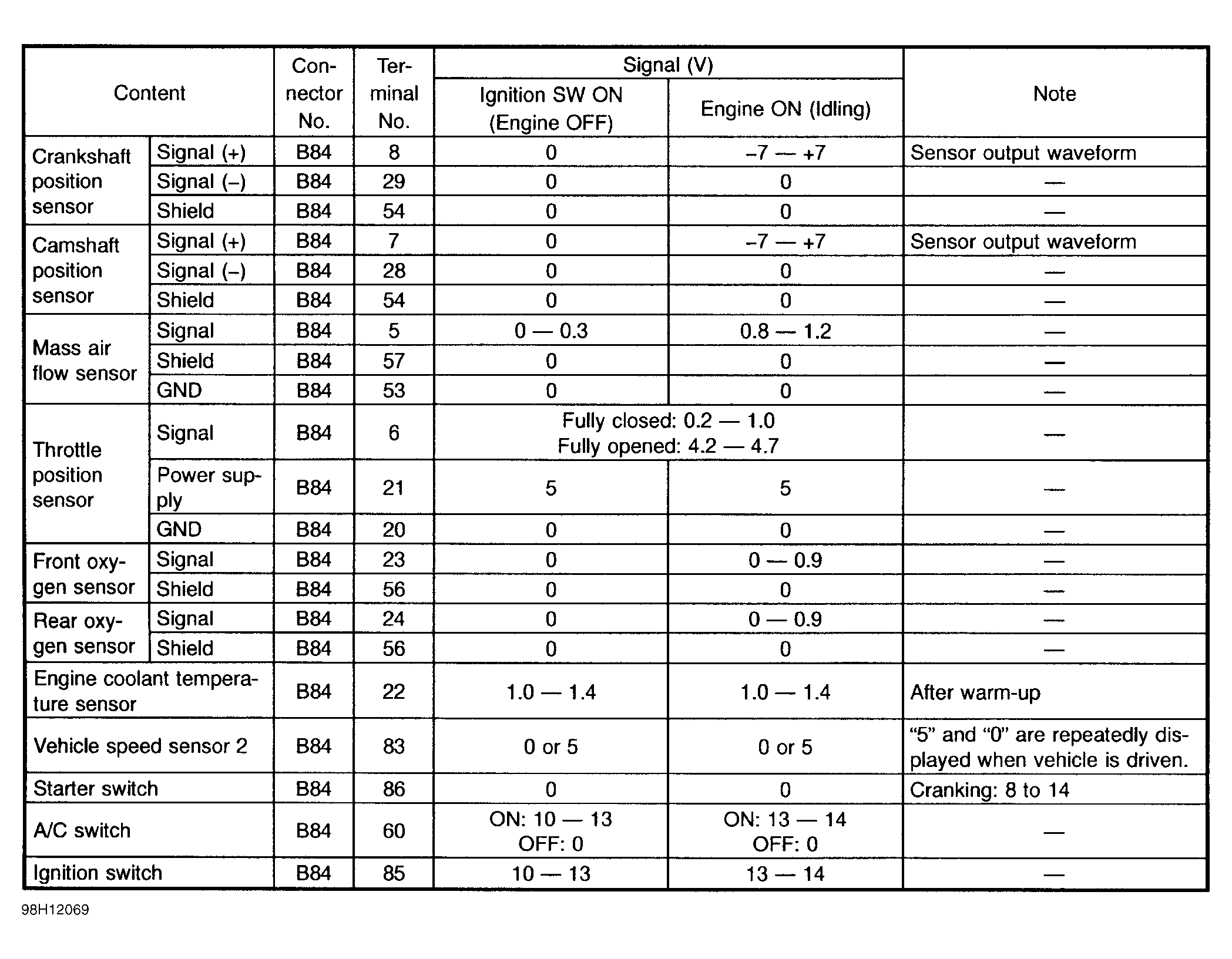

Fig 5: Identifying ECM Connector Terminals & Circuits (Impreza - 1 of 3)

G98H12069

Courtesy of SUBARU OF AMERICA, INC.

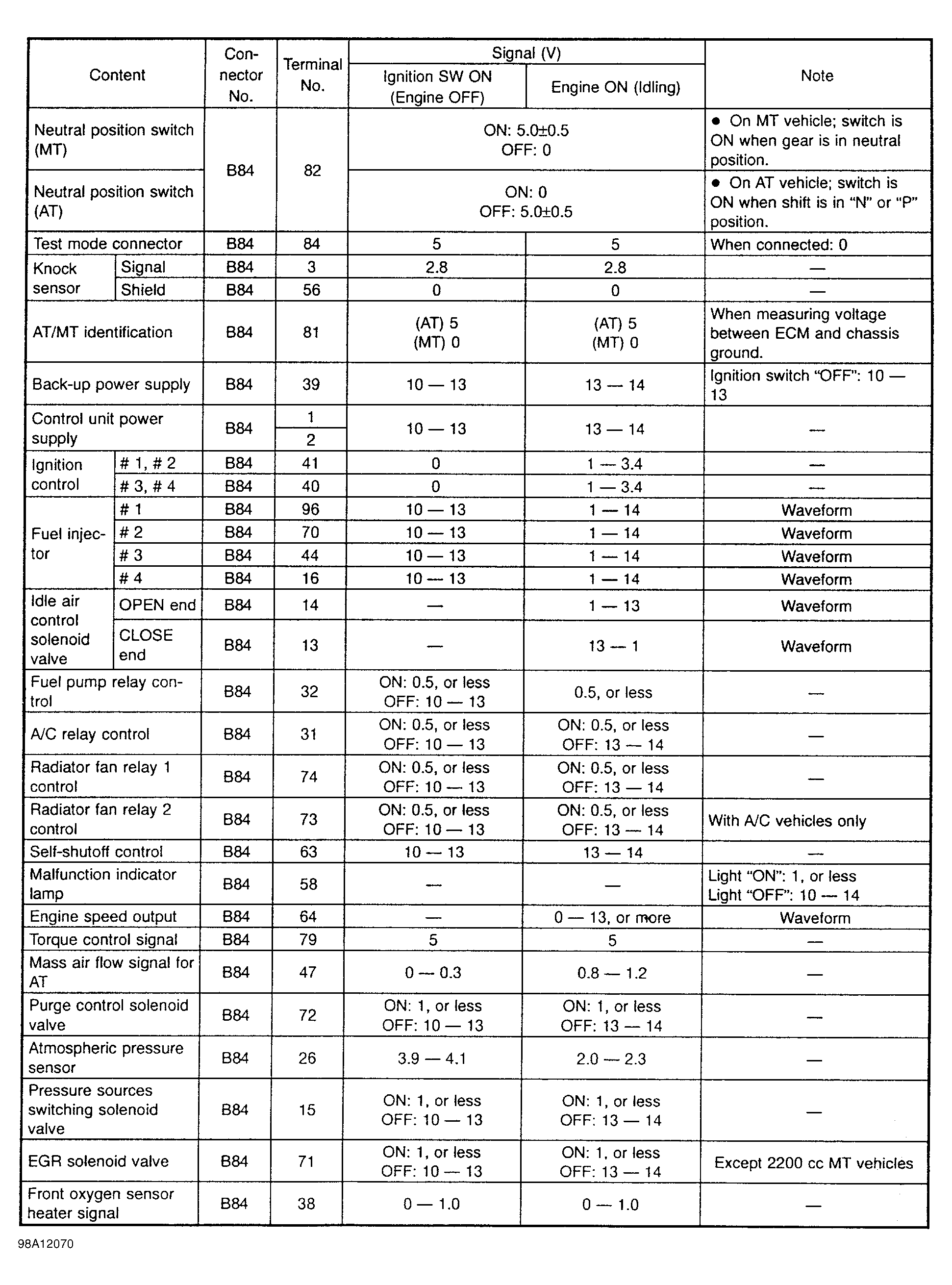

Fig 6: Identifying ECM Connector Terminals & Circuits (Impreza - 2 of 3)

G98A12070

Courtesy of SUBARU OF AMERICA, INC.

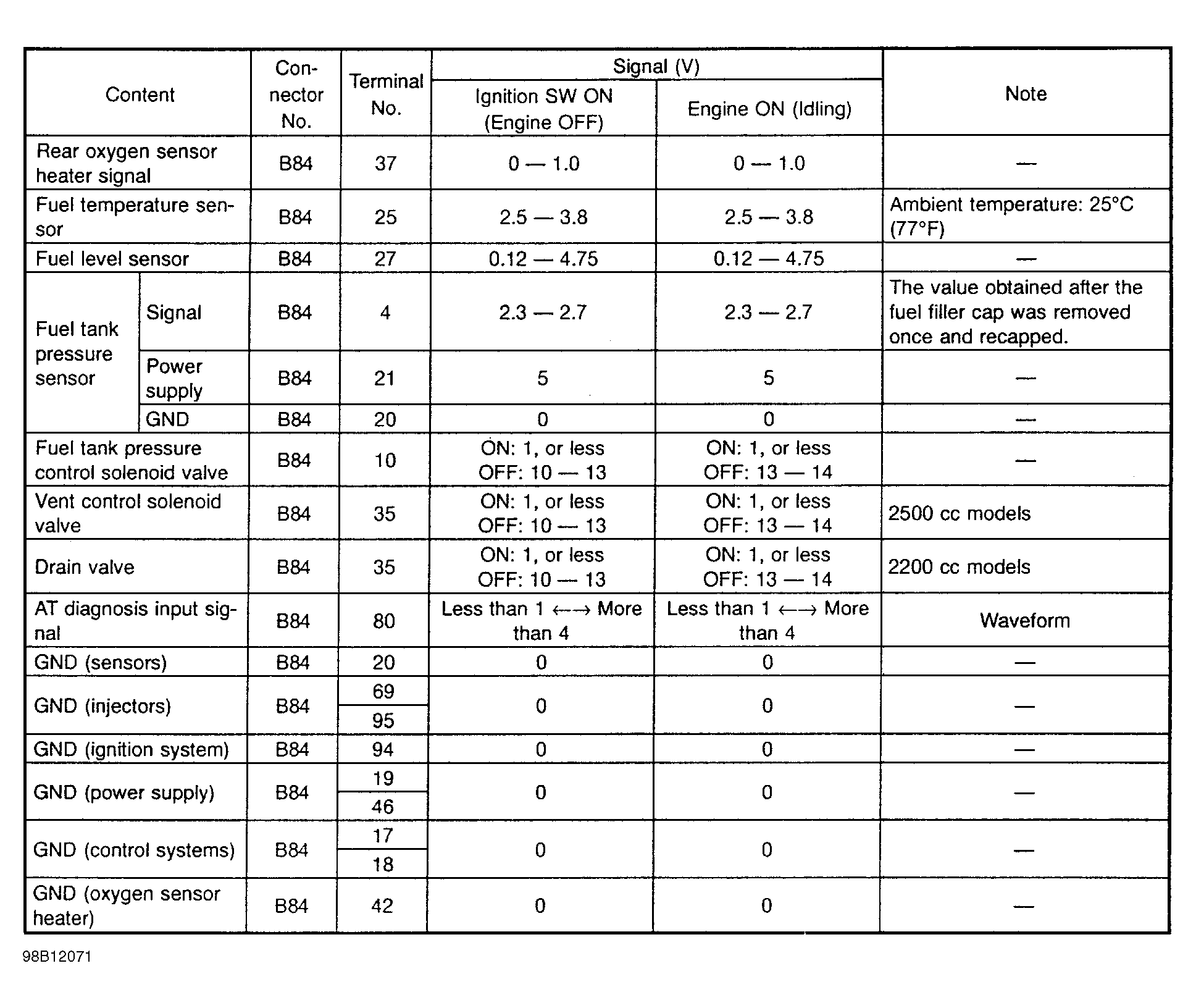

Fig 7: Identifying ECM Connector Terminals & Circuits (Impreza - 3 of 3)

G98B12071

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying ECM Connector Terminals & Circuits (Legacy - 1 of 3)

G98H12069

Courtesy of SUBARU OF AMERICA, INC.

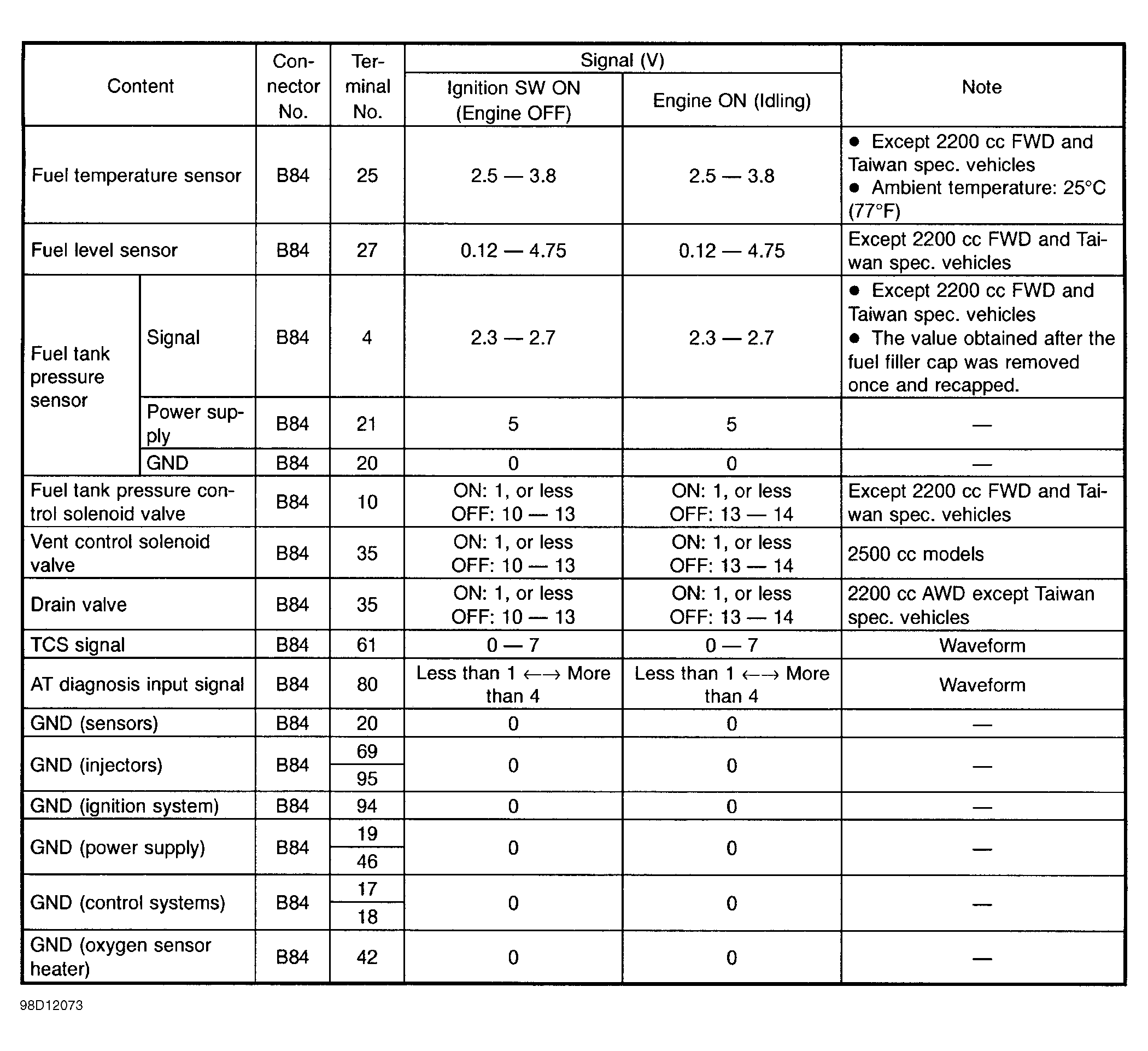

Fig 9: Identifying ECM Connector Terminals & Circuits (Legacy - 2 of 3)

G98D12073

Courtesy of SUBARU OF AMERICA, INC.

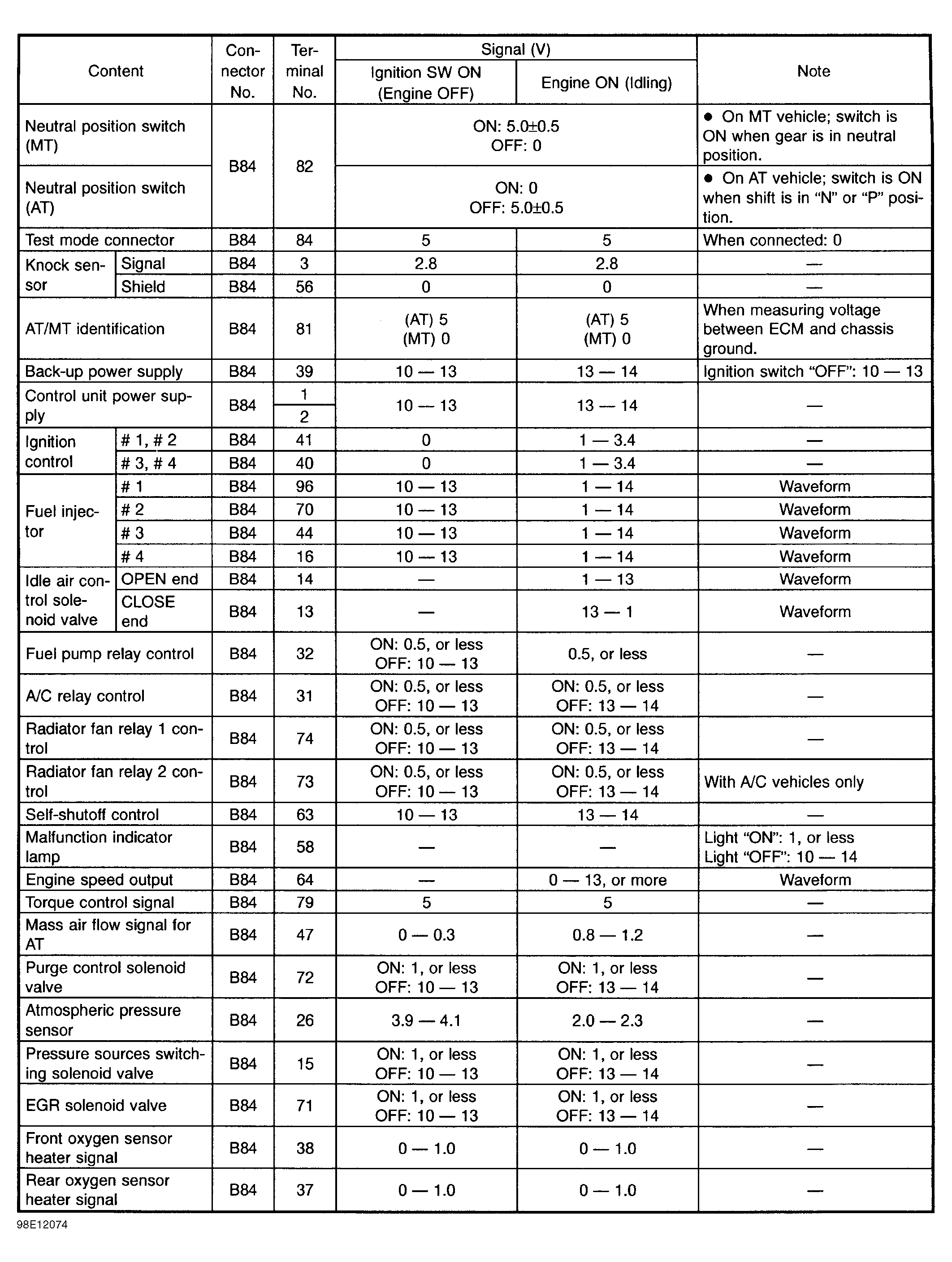

Fig 10: Identifying ECM Connector Terminals & Circuits (Legacy - 3 of 3)

G98E12074

Courtesy of SUBARU OF AMERICA, INC.
