Generators & Regulators: Overhaul

NOTE: See Fig 1 for exploded view of generator.

To remove a stuck rear cover after removing case bolts, use soldering iron or heat gun to warm rear cover bearing housing to about 122-140°F (50-60°C). This will expand housing enough to slide cover off rotor bearing. Ensure spring washer located in rear cover bearing bore is not lost during disassembly.

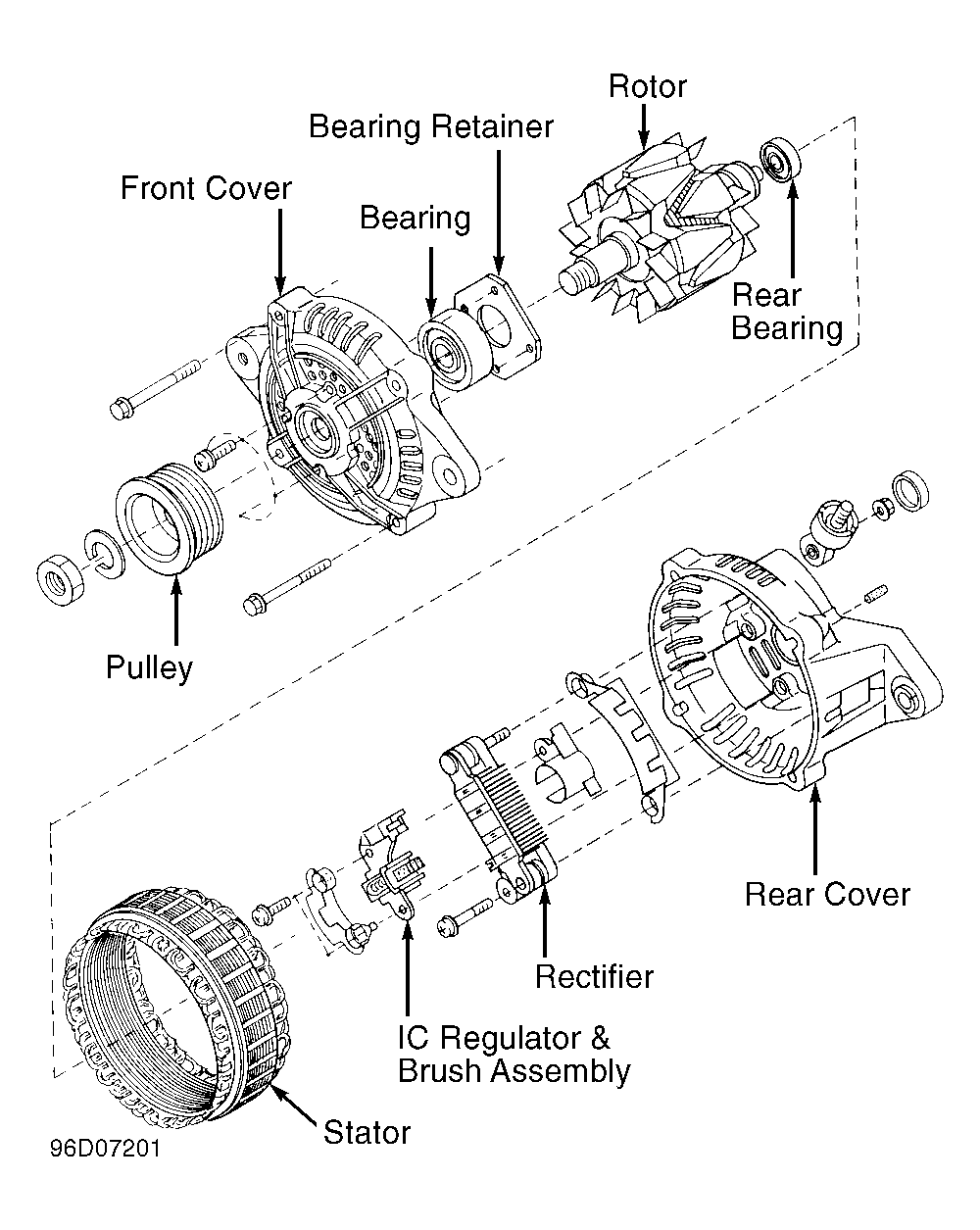

Fig 1: Exploded View Of Mitsubishi Generator (Typical)

Courtesy of SUBARU OF AMERICA, INC.
